10 KVA Temporary Power Distribution - 208V to 220V 1PH/BBT - 40A Secondary Circuit Breaker - N3R
10 KVA Temporary Power Distribution - 208V to 220V 1PH/BBT - 40A Secondary Circuit Breaker - N3R
| MGL-208.50A.TWL-10KVA-220.40A.TWL Temporary Power Distribution | Ratings/Approvals |
| Line-in Cord: 5` #6 SOOW Cord | Max Primary OCP: 50A @ 208V |
| Line-in Cord Cap: 50A CS8265C Male [250V] | Max Secondary OCP: 40A @ 220V |
| Primary Voltage: 208V AC, 1PH | UL 1640 Portable Power-Distribution Equipment |
| Primary Disconnect: - | NEMA 3R Indoor or Outdoor Use |
| Primary Protection: - | Made in the USA |
| Transformer: 10KVA 208V to 220V 1PH 60Hz N3R - BBT |  |
| Secondary Voltage: 220V AC, 1PH |  |
| Secondary Disconnect: 40A 2P Circuit Breaker [250V] N3R |  |
| Secondary Line-out Cord: 5' #8 SOOW Cord | |
| Secondary Line-out Cord Cap: 50A CS8264C Female [250V] | |
| Secondary Protection: Circuit Breaker | |
| Form Factor: Powder Coated Steel Dolly Cart w/ Run Flat Tires | |
| Dimensions: 40" x 40" x 48" | |
| Weight: 350 lbs | |

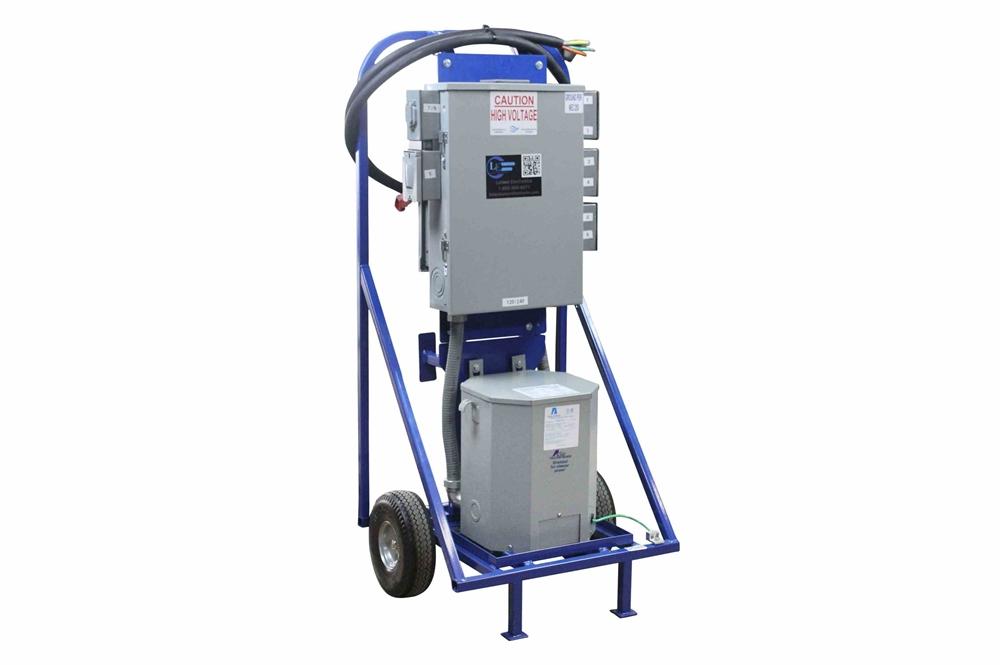

| Larson Electronics manufactures a wide variety of custom power distribution systems. The pictures displayed for this unit are a general representation of form factor and may not accurately represent this exact configuration in every detail due to being custom builds. The specifics for this configuration are listed in the specification table and one-line diagram. | *All grounding shall comply with state and local codes and meet the minimum requirements of the National Electronic Code section 250* |
| This unit is Made In USA - Manufactured in Texas The Larson Electronics MGL-208.50A.TWL-10KVA-220.40A.TWL Temporary Power Distribution Station converts single-phase 208V AC electrical current into single-phase 220V AC. This unit provides operators the ability to safely tap into and distribute 208V AC power from a variety of sources including generators and direct grid power. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO POWER DISTRIBUTION PANELS, TRANSFORMERS, OR SUBSTATIONS* Portable Power Distribution Purpose and Use The MGL-208.50A.TWL-10KVA-220.40A.TWL temporary power distribution system gives operators the ability to power their 220 volt equipment from a single system. On the primary side, operators connect 208 volt line-in power using 5' of #6 SOOW cord with a CS8265C male cord cap. On the secondary side, operators may access a 5' #8 SOOW cord with a CS8264C female connector for powering 220V equipment. Operation: A 5' #6 SOOW line-in cord with a 50-amp 250V CS8265C male cord cap brings single-phase 208V power into the NEMA 3R 10KVA buck-boost transformer. The buck-boost transformer converts 208V to 220V 60Hz and passes the current to the secondary side. The secondary side of the transformer feeds a NEMA 3R 40-amp, single-phase 250V 2-pole circuit breaker, which contains 5' of #8 SOOW cord with a 50-amp 250V CS8264C female connector. | |||||||
|
|||||||
| Protective Construction: The transformer and load center/distribution assembly is mounted to a powder coated steel, dolly cart style frame, resulting in an extremely stable, durable, and mobile power distribution platform. Two run-flat rubber tires and a dolly cart style mounting platform provides easier substation mobility, and a center point lift point allows easy lifting with cable or chain hooks. This temporary power distribution solution can be modified to meet the needs of job-site receptacle requirements. Units are available up to 150KVA, and can be equipped with skids or trailer mounted. Certification: Larson Electronics is a UL 1640 panel shop and certified to build portable power distribution systems. All units are built in accordance to NFPA 70 (National Electric Code) and certified to UL 1640. All equipment is NEMA 3R rated for indoor and outdoor use and provide a degree of protection against dirt, water, and ice. NEMA 4 and NEMA 4X equipment can be equipped upon request. Grounding: Transformer is grounded to the frame and we provide a grounding lug on the frame for the earth ground. ~Please check all motor loads for dual rated motors that will work 208 or 240.~ Applications: This power distribution system is NEMA 3R rated and ideal for indoor/outdoor use and applications including but not limited to; construction sites, plant maintenance, plant turnarounds, shows, exhibits and shipyard operations. Larson Electronics is a manufacturer and as such can build portable transformer systems to your specifications. Although we carry several models of power distribution transformers, we can deliver custom ordered units almost as quickly as our prebuilt units. If this model does not meet your needs, please contact us at 1-800-369-6671 or to discuss your specific requirements. |
