MGPU-208.480V.3PH-28V-400A-1X15A.115V
Mobile AC to DC Ground Power Unit Cart
Ratings
Line-In Cord: 50' AC Input Cable
IP54 Rated Enclosure
Line-In Cord Cap: -
MIL-C-7974D
Output Cord: 20' Aircraft Cable w/ Aircraft Plug
Meets MIL-STD-704E for Aircraft Power
Output Cord Cap: Molded AN2551 3-pin Oval Plug
Thermal Protection
Primary Voltage (Input): 208-575V AC, 3PH
Smart Current Limit
Primary Frequency: 50/60Hz
Hermetically Sealed Semiconductors
Primary Protection:Â AC Line Disconnect, Circuit Breaker w/ Lockout/Tagout
Ball-bearing Cooling Fan
Secondary Voltage (Output): 24-32V DC (Adjustable)
Â
Output Power: 400A @ 28.5V DC Continuous, 1200A Peak
Â
Adjustable Output Current Limit: 0A to 1200A
Â
Output Regulation: 1%
Â
Output Ripple: 1%
Â
Secondary Protection: DC On/Off Switch
Receptacle: (1) 15A [115V] w/ Weatherproof Cover
Form Factor: Mobile Cart w/ (4) 9" Non-marking Wheels w/ Foot Brakes, Cable/Handle Bars
Frame Materials: Baked Powder Coated Enclosure
Dimensions: 36" x 34" x 34"
Weight: 650 pounds

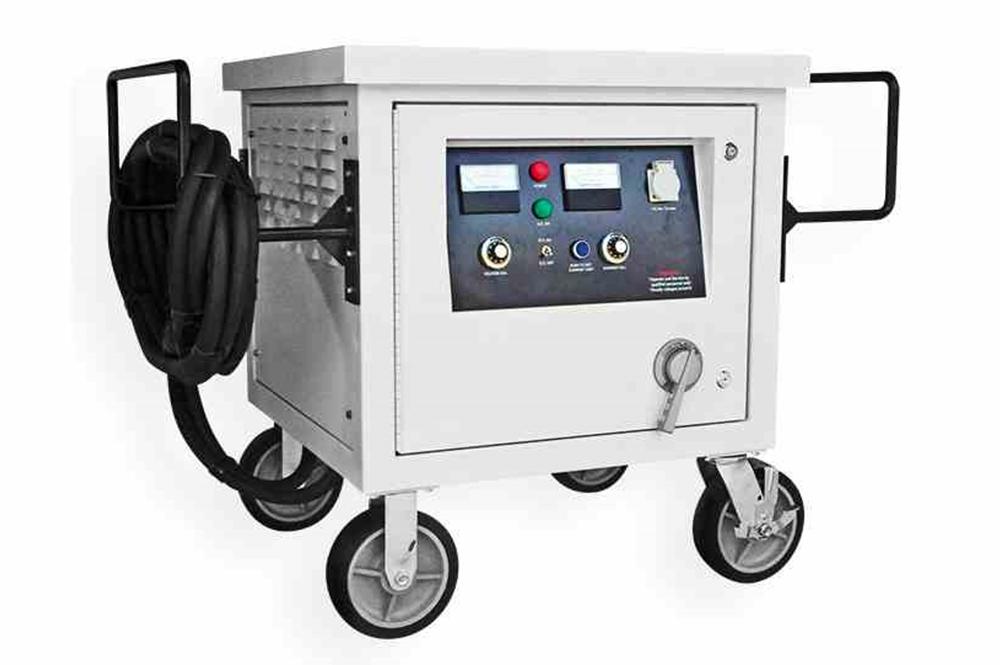

Larson Electronics manufactures a wide variety of custom power distribution systems. The pictures displayed for this unit are a general representation of form factor and may not accurately represent this exact configuration in every detail due to being custom builds. The specifics for this configuration are listed in the specification table and one-line diagram.
*All grounding shall comply with state and local codes and meet the minimum requirements of the National Electronic Code section 250*
'
Product Overview
'
function MM_openBrWindow(theURL,winName,features) { //v2.0
window.open(theURL,winName,features);
}
The Larson Electronics MGPU-208.480V.3PH-28V-400A-1X15A.115V
Mobile 28V DC Aircraft Group Power Cart converts three-phase 208-575V AC to 24-32V DC (28.5V DC continuous @ 400A). This unit provides operators the ability to safely tap into and distribute 208-575V AC power from a variety of sources including generators and direct grid power.
*PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO POWER DISTRIBUTION PANELS, TRANSFORMERS, OR SUBSTATIONS*
Portable Power Distribution Purpose and Use
The MGPU-208.480V.3PH-28V-400A-1X15A.115V
portable power distribution system gives operators the ability to power their 28.5V DC equipment from a single system. On the primary side, operators connect three-phase 208-575V AC line-in power via 50' of AC input cable and to one 15-amp receptacle for 115V equipment (protected by a weatherproof cover). This includes commonly found 208V, 240V, and 480V 3-phase input power. On the secondary side, operators are provided 28V DC output (24-32V DC adjustable) via a 20' aircraft cable with a molded AN2551 3-pin oval aircraft plug.
Operation: A 50' AC input cable brings three-phase 208-575V AC @ 50/60Hz power to the primary side of the mobile power distribution cart, which is protected by an AC line disconnect with an industrial-grade circuit breaker and through door actuator as well as lockout and tagout features. The primary side contains one 15-amp 115V receptacle for powering or testing equipment. The thermal protected transformer converts three-phase 208-575V AC to 24-32V DC (28.5V DC continuous @ 400A) and passes the current to the secondary side. DC output power is provided by a 20' aircraft cable with a molded AN2551 3-pin oval aircraft plug. Output current limit is adjustable from 0A to 1200A, with 1% output regulation/ripple (designed to meet MIL-STD-704E for aircraft power).
Smart Current Limit allows operators to set a current limit via a push button and dial knob lock. A DC on/off switch facilitates safe connection/disconnection on the output side.
Protective Construction: The mobile AC-to-DC power distribution unit is protected by an IP54-rated enclosure with a baked powder coated finish for durability and use in indoor/outdoor locations. Four, 9" non-marking wheels with foot brakes enable mobility at the work site. The wheels are weatherproof and resistant to chemicals, water, steam and debris. A cable wrap/handle bar is available on both side of the station.
Applications: This power distribution system is ideal for indoor or outdoor use and applications including but not limited to, aircraft maintenance, aircraft projects, aerospace, military, construction sites, plant maintenance, plant turnarounds, shows, exhibits and shipyard operations. These power distribution systems are popularly used in applications where external power sources are often necessary. We also offer class rated transformers for use within explosion proof and hazardous location environments.
Custom Built Systems Available: Larson Electronics is a manufacturer and we can build portable power distribution systems to your specifications. Although we carry several models of portable power distribution systems in stock, we can deliver custom ordered units almost as quickly as our prebuilt units. If this model does not meet your needs, please contact us at 1-800-369-6671 or to discuss your specific requirements.
