Larson 150 kVA Power Distribution System - 600V 3 Phase - Ten ADR1044 100A Outlets

Larson ElectronicsSKU: PL3-MGS-150KVA-600-10X100A
filler

Price:
Sale price$44,982.99

Description

PuriLite suggests you place an order directly with us for large Larson orders due to the potential customization requirements. Please call us at 1-844-787-5483 to place your order. If you prefer to place your order online, a PuriLite agent will be in touch with you to discuss any custom options.
This unit is Made In USA - Manufactured in Texas

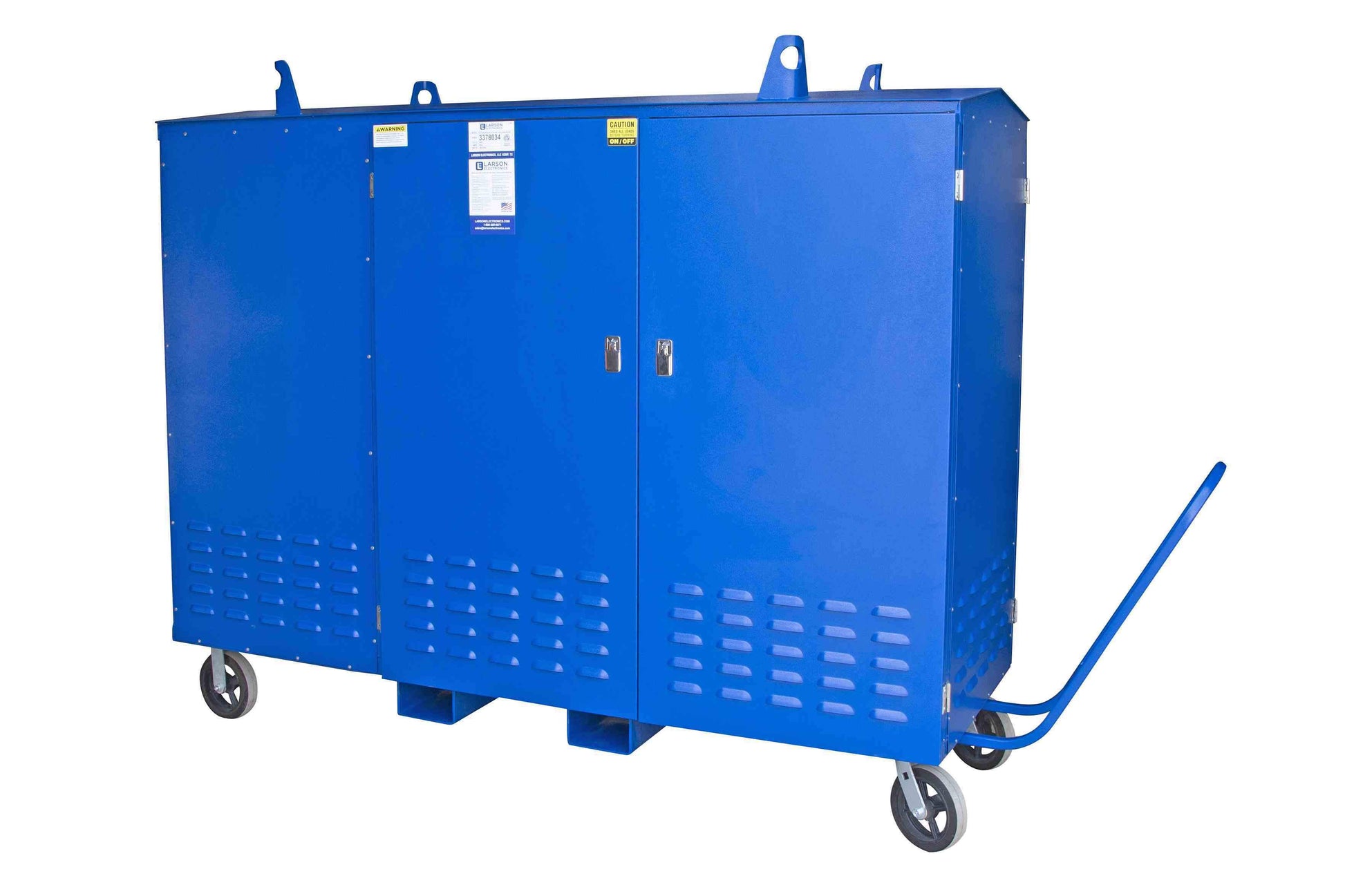

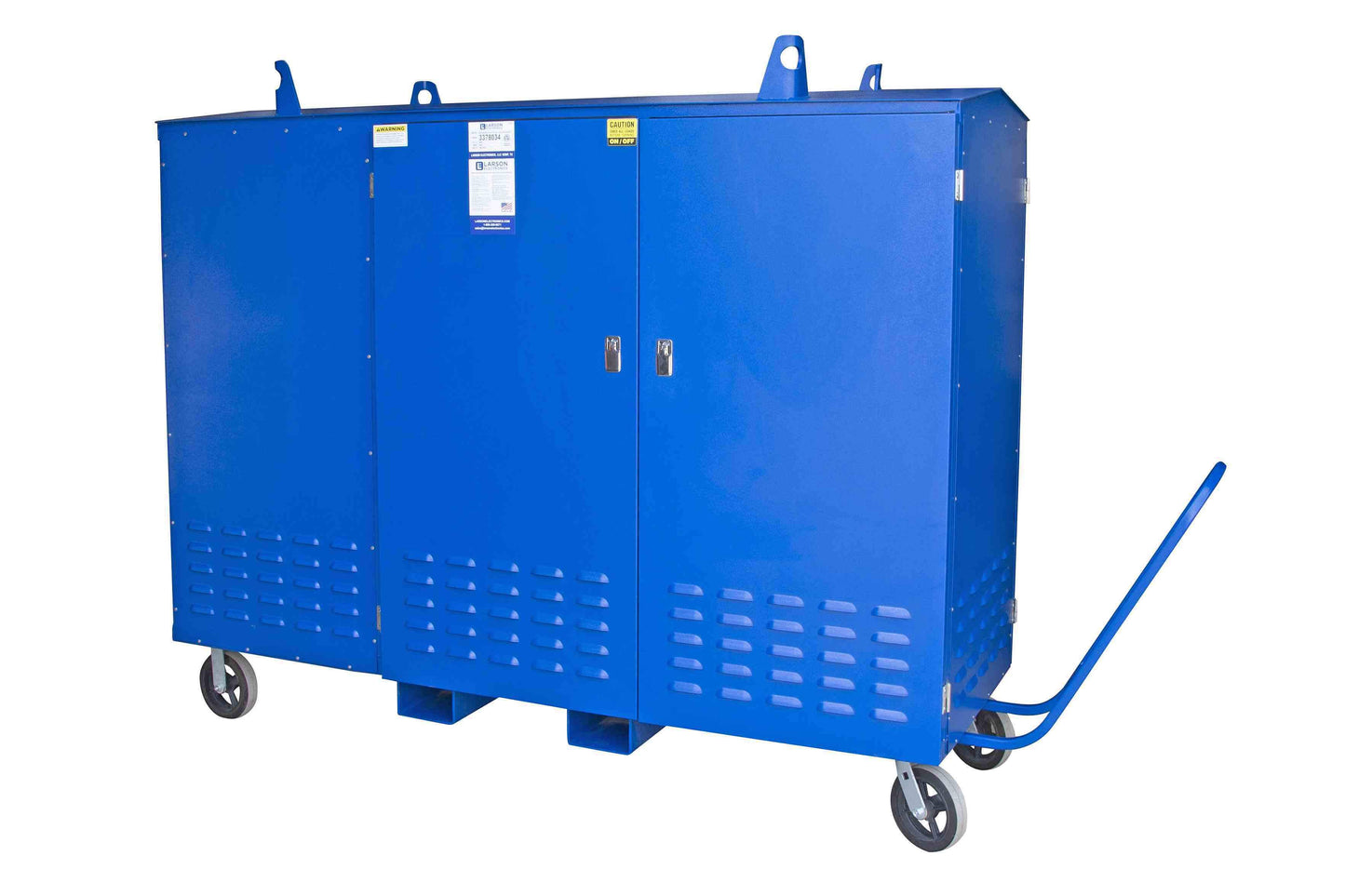

The Larson Electronics MGS-150KVA-600-10X100A heavy duty power transformer substation series converts 600V three phase electrical current to single phase 120V AC and 208Y AC. This unit provides operators the ability to safely tap into and distribute 600VAC power from a variety of sources including generators and direct grid power. This model is designed to support both linear (motor) and non-linear loads (lighting, computers, etc). For that reason, we deliver 120V and 208Y on the secondary and provide a neutral.
The MGS-150KVA-600-10X100A power distribution substation provides a safe and effective way for operators in industrial settings to tap into and utilize power sources independently of the work area. This unit provides an effective power source for operators performing plant turnarounds, maintenance and cleaning in hazardous areas, equipment installations and repairs, and any activities requiring an alternative to native power sources. This unit is designed to operate with a 600V, 3 phase primary which it then steps down to 120V single phase and 208Y three phase. This transformer provides secondary power via 4 GFCI protected 120V receptacles and ten ADR1044 100 amp, 4 wire, 4 pole receptacles for 3 phase 208Y.
The operator provides line-in cord that connects to a 200 amp fused ON/OFF disconnect switch which controls current to the 150 KVA, 600 Volt, 3 phase transformer with Nema 3R configuration. The transformer is mounted to a 1/8” thick diamond plate and the distribution assembly is mounted onto a rugged 2 inch square carbon steel frame with 3" X 6" X 3/8" rectangular carbon steel skid pockets and a top located lifting eyelet to allow easy transport.
This substation is Nema 3R configured and ideal for use in applications including but not limited to, plant maintenance, hazardous location operations, welding stations, shows and exhibits and marine applications.  This series of portable power distribution can support both motor and lighting loads.
Larson Electronics is a manufacturer and as such can build power distribution substations to your Specifications. Although we carry several models of power distribution systems, we can deliver custom ordered units almost as quickly as our prebuilt units. If this model does not meet your needs, please contact us at 1-844-787-5483 or
Contact info@purilite.ca
.

Specifications
Line In: 600 VAC Three Phase (operator provides cord)
Transformer KVA: 150
Line Out: 120VAC - 208Y VAC
120 VAC Outlets:  4 X 120V 20amp GFI
208Y Outlets: 10 X 100 amp ADR1044
Protection: GFCI Outlets, Onboard Circuit Breakers
Mounting: Skid and Lifting Eyelet Equipped Steel Frame

Disconnect: 200 amp fused
Weight: 650 pounds
Dimensions: 48"W X 40"D X 56"T
Panel: 200 amp 3 phase
Breakers: 10 X 100 amp 3 phase & 4 X 20 amp
