Description
PuriLite suggests you place an order directly with us for large Larson orders due to the potential customization requirements. Please call us at 1(647) 254-9757 to place your order. If you prefer to place your order online, a PuriLite agent will be in touch with you to discuss any custom options.
This unit is Made In USA - Manufactured in Texas

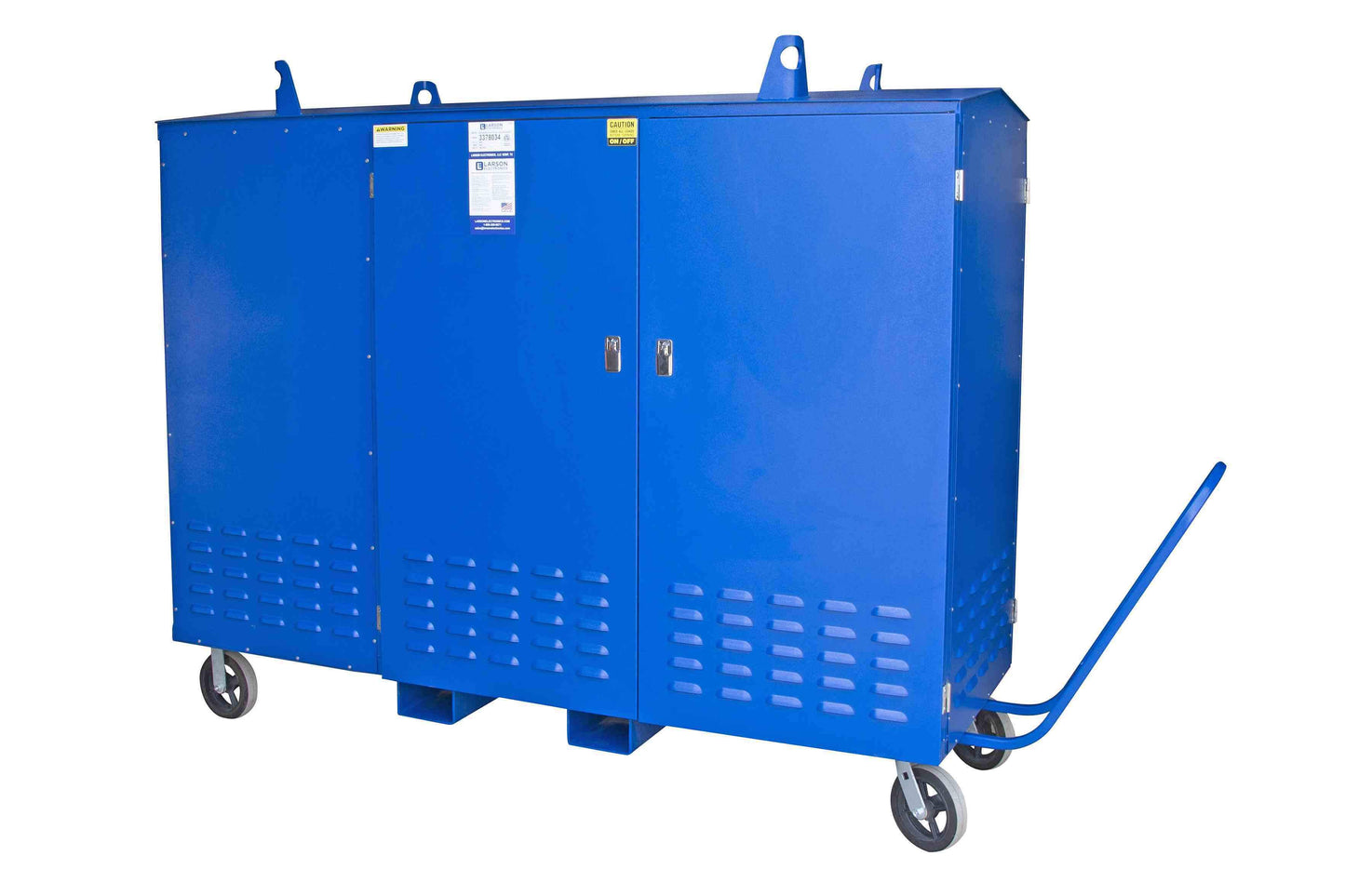

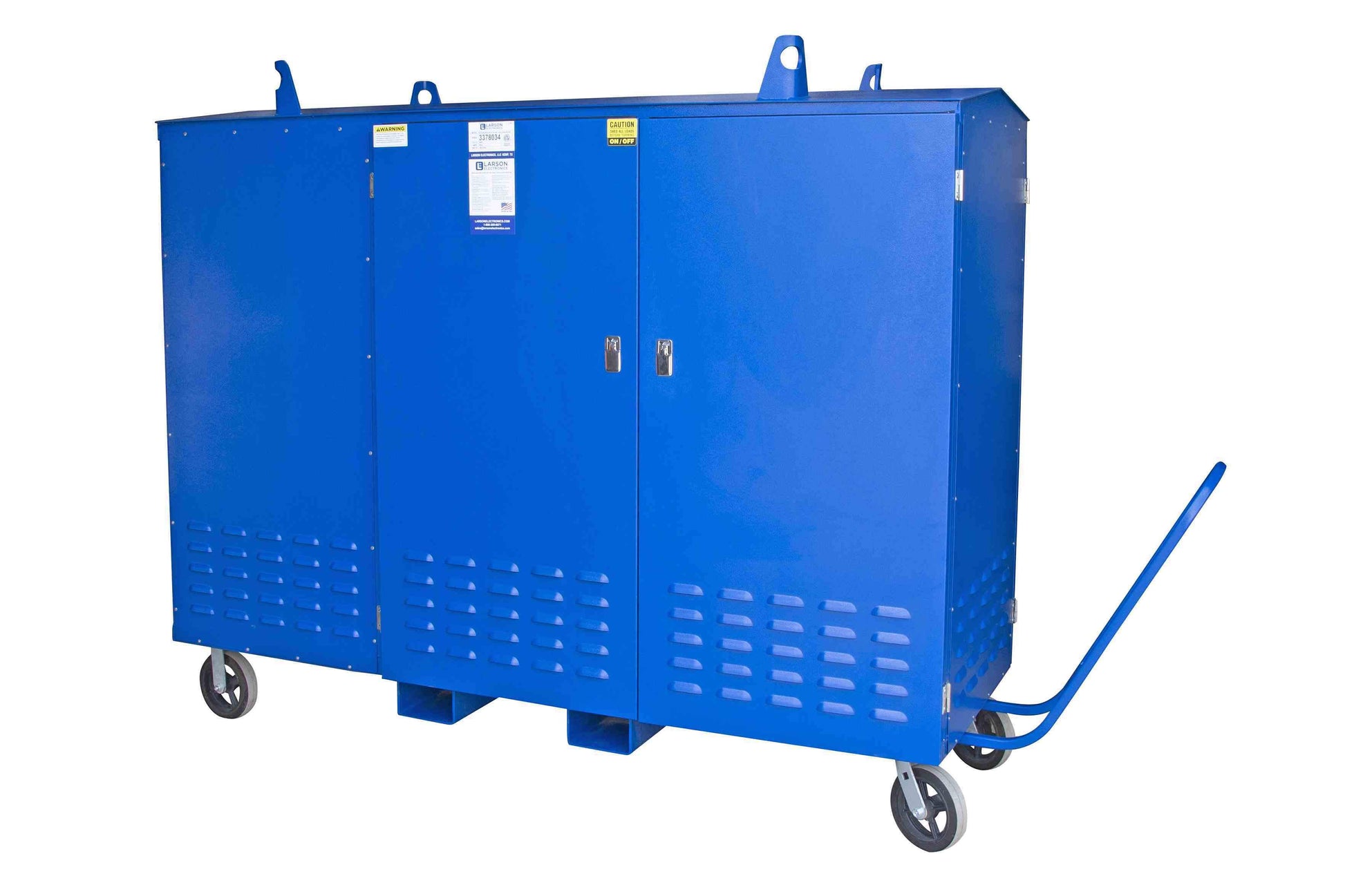

The Larson Electronics MGS-2X480.20A-30KVA-2X208.120.3P.30A-6X120.1P.20A power distribution substation converts 480V AC three phase electrical current into three phase 208Y/120V AC. This unit provides operators the ability to safely tap into and distribute 480V AC power from a variety of sources including generators and direct grid power.
Portable Power Distribution Purpose and Use:
The MGS-2X480.20A-30KVA-2X208.120.3P.30A-6X120.1P.20A portable power distribution system gives operators the ability to power their 480 volt, 208 volt and 120 volt equipment from a single system. On the primary side, operators connect 480 volt line-in power using 20` of #8 Type W cable to two L16-20R receptacles for 480V equipment. On the secondary side, operators connect to two L21-30R receptacles for 208Y/120V equipment and to six 5-20R GFCI duplex receptacles for 120V equipment. All receptacles are mounted on a backplate and equipped with weatherproof covers.
Operation:
A 20` #8 Type W cable brings 480V three phase power to the NEMA 3R 60-amp, 480V three phase main circuit breaker panel on the primary side, which contains one 40-amp, 3-pole, 480V breaker and two 20-amp, 3-pole, 480V breakers protecting two 20-amp, 480V, L16-20R receptacles, and passes 480V three phase power to the transformer. The NEMA 3R 30 KVA transformer converts 480V to 208Y/120V three phase and passes the current a NEMA 3R 125-amp, 208Y/120V three phase main lug only panel. This secondary side contains two 30-amp, 3-pole, 250V breakers protecting two 30-amp, 208Y/120V, L21-30R receptacles, and six 20-amp, 1-pole, 125V breakers protecting six 20-amp, 125V, 5-20R GFCI duplex receptacles.
Protective Construction:
Unlike many portable power distribution boxes made of plastic and utilizing thin gauge, low grade metals in their construction, this unit is designed for serious use and is ruggedly constructed to withstand demanding conditions and heavy duty industrial applications. The transformer and load assembly is mounted on a 3/16" thick carbon steel mounting platform and the load center/distribution assembly is mounted to the standard 2" x 2" x 1/8" square carbon steel tubing frame, resulting in an extremely stable, durable and well protected power distribution platform. This model is equipped with forklift skid pockets, locking polyurethane casters, and a top located lifting eyelet which allows easy lifting with cable or chain hooks. This can be replaced for an additional cost with stainless steel, hot dip galvanized steel, or aluminum depending on the customer’s needs. Larger units are available upon request and can be equipped with skids or trailer mounted.
Grounding:
Transformer is grounded to the frame and we provide a grounding lug on the frame for the earth ground.
Applications:
This power distribution system is ideal for indoor or outdoor use and applications including but not limited to, construction sites, plant maintenance, plant turnarounds, shows, exhibits, and shipyard operations. These power distribution systems are popularly used in applications where external power sources are often necessary. We also offer class rated transformers for use within explosion proof and hazardous location environments.
Custom Built Systems Available:
Larson Electronics is a manufacturer and we can build portable power distribution systems to your Specifications. Although we carry several models of portable power distribution systems in stock, we can deliver custom ordered units almost as quickly as our prebuilt units. If this model does not meet your needs, please contact us at 1(647) 254-9757 or
Contact info@purilite.ca
to discuss your specific requirements.
Specifications
Line-In Cord: 20` #8 Type W Cable
Primary Voltage: 480V 3PH
Primary Panel: 60A 480V 3PH MCB N3R
Primary Breakers: (1) 40A 3P [480V], (2) 20A 3P [480V]
Primary Receptacles: (2) 20A L16-20R [480V]
Primary Protection: Weatherproof Covers
Transformer: 30 KVA 480V to 208Y/120V 3PH 60Hz N3R
Secondary Voltage: 208Y/120V 3PH
Secondary Panel: 125A 208Y/120V 3PH MLO N3R
Secondary Breakers: (2) 30A 3P [250V], (6) 20A 1P [125V]
Secondary Panel Outlets: (2) 30A L21-30R [208Y/120V], (6) 5-20R GFCI Duplex [125V]
Secondary Protection: GFCI, Weatherproof Covers
Form Factor: Square tube frame w/ skid pockets, top pick eye & locking 8†casters
Dimensions: 34â€-L X 40â€-W X 58â€-H
Weight: 900 lbs
Features:
Max Primary OCP: 60A @ 480V
Max PDU OCP: 40A @ 480V
Max Secondary Output: 83.3A @ 208V
This unit is Made In USA - Manufactured in Texas
The Larson Electronics MGS-2X480.20A-30KVA-2X208.120.3P.30A-6X120.1P.20A power distribution substation converts 480V AC three phase electrical current into three phase 208Y/120V AC. This unit provides operators the ability to safely tap into and distribute 480V AC power from a variety of sources including generators and direct grid power.
Portable Power Distribution Purpose and Use:
The MGS-2X480.20A-30KVA-2X208.120.3P.30A-6X120.1P.20A portable power distribution system gives operators the ability to power their 480 volt, 208 volt and 120 volt equipment from a single system. On the primary side, operators connect 480 volt line-in power using 20` of #8 Type W cable to two L16-20R receptacles for 480V equipment. On the secondary side, operators connect to two L21-30R receptacles for 208Y/120V equipment and to six 5-20R GFCI duplex receptacles for 120V equipment. All receptacles are mounted on a backplate and equipped with weatherproof covers.
Operation:
A 20` #8 Type W cable brings 480V three phase power to the NEMA 3R 60-amp, 480V three phase main circuit breaker panel on the primary side, which contains one 40-amp, 3-pole, 480V breaker and two 20-amp, 3-pole, 480V breakers protecting two 20-amp, 480V, L16-20R receptacles, and passes 480V three phase power to the transformer. The NEMA 3R 30 KVA transformer converts 480V to 208Y/120V three phase and passes the current a NEMA 3R 125-amp, 208Y/120V three phase main lug only panel. This secondary side contains two 30-amp, 3-pole, 250V breakers protecting two 30-amp, 208Y/120V, L21-30R receptacles, and six 20-amp, 1-pole, 125V breakers protecting six 20-amp, 125V, 5-20R GFCI duplex receptacles.
Protective Construction:
Unlike many portable power distribution boxes made of plastic and utilizing thin gauge, low grade metals in their construction, this unit is designed for serious use and is ruggedly constructed to withstand demanding conditions and heavy duty industrial applications. The transformer and load assembly is mounted on a 3/16" thick carbon steel mounting platform and the load center/distribution assembly is mounted to the standard 2" x 2" x 1/8" square carbon steel tubing frame, resulting in an extremely stable, durable and well protected power distribution platform. This model is equipped with forklift skid pockets, locking polyurethane casters, and a top located lifting eyelet which allows easy lifting with cable or chain hooks. This can be replaced for an additional cost with stainless steel, hot dip galvanized steel, or aluminum depending on the customer’s needs. Larger units are available upon request and can be equipped with skids or trailer mounted.
Grounding:
Transformer is grounded to the frame and we provide a grounding lug on the frame for the earth ground.
Applications:
This power distribution system is ideal for indoor or outdoor use and applications including but not limited to, construction sites, plant maintenance, plant turnarounds, shows, exhibits, and shipyard operations. These power distribution systems are popularly used in applications where external power sources are often necessary. We also offer class rated transformers for use within explosion proof and hazardous location environments.
Custom Built Systems Available:
Larson Electronics is a manufacturer and we can build portable power distribution systems to your Specifications. Although we carry several models of portable power distribution systems in stock, we can deliver custom ordered units almost as quickly as our prebuilt units. If this model does not meet your needs, please contact us at 1(647) 254-9757 or
Contact info@purilite.ca
to discuss your specific requirements.
Specifications
Line-In Cord: 20` #8 Type W Cable
Primary Voltage: 480V 3PH
Primary Panel: 60A 480V 3PH MCB N3R
Primary Breakers: (1) 40A 3P [480V], (2) 20A 3P [480V]
Primary Receptacles: (2) 20A L16-20R [480V]
Primary Protection: Weatherproof Covers
Transformer: 30 KVA 480V to 208Y/120V 3PH 60Hz N3R
Secondary Voltage: 208Y/120V 3PH
Secondary Panel: 125A 208Y/120V 3PH MLO N3R
Secondary Breakers: (2) 30A 3P [250V], (6) 20A 1P [125V]
Secondary Panel Outlets: (2) 30A L21-30R [208Y/120V], (6) 5-20R GFCI Duplex [125V]
Secondary Protection: GFCI, Weatherproof Covers
Form Factor: Square tube frame w/ skid pockets, top pick eye & locking 8†casters
Dimensions: 34â€-L X 40â€-W X 58â€-H
Weight: 900 lbs
Features:
Max Primary OCP: 60A @ 480V
Max PDU OCP: 40A @ 480V
Max Secondary Output: 83.3A @ 208V
