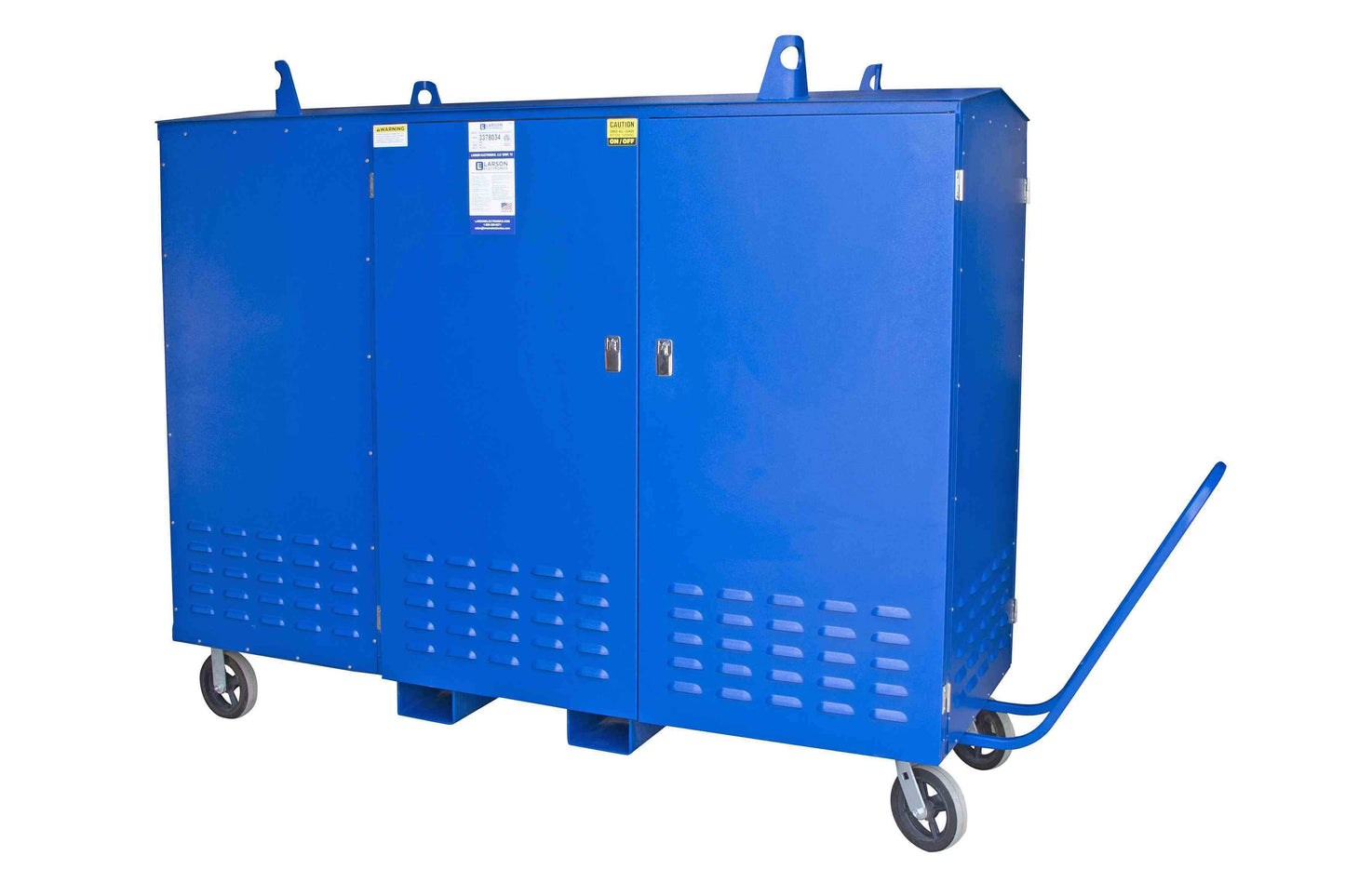

Larson Power Substation - 30 KVA - Converts 480V to 8X120V AC Outlets and Two 208Y AC Outlets with GFCI
Larson Power Substation - 30 KVA - Converts 480V to 8X120V AC Outlets and Two 208Y AC Outlets with GFCI
Sold by: Larson Electronics
This unit is Made In USA - Manufactured in Texas
The Larson Electronics MGS-30KVA-8X120-2X240 heavy duty power transformer substation converts 480 VAC three phase electrical current to 208Y/120VAC three phase. This unit provides operators the ability to safely tap into and distribute 480VAC power from a variety of sources including generators and direct grid power. This model is designed for use for both linear (motor) and non-linear loads (lighting, computers, etc.). For that reason, we deliver 120V and 208Y on the secondary and provide a neutral.
*Please note: No free shipping offers apply to power distribution panels, transformers, or substations.*
The MGS-30KVA transformer provides a safe and effective way for operators in industrial settings to tap into and utilize power sources independently of the work area. This unit provides an effective power source for operators performing plant turnarounds, maintenance and cleaning in hazardous areas, equipment installations and repairs and any activities requiring an alternative to native power sources. This unit is designed to operate with 480VAC 3 phase which it then steps down to 208Y/120VAC 3 phase. This transformer makes 120VAC available via 8 GFCI protected 125V receptacles and 208Y VAC available via two 125/250VAC outlets.
20 feet of #6 SO cord connects line in power to a fused ON/OFF disconnect switch which controls current to the 30 KVA, 480 Volt 3 phase transformer.
Unlike many portable power distribution boxes made of plastic and utilizing thin gauge, low grade metals in their construction, this unit is designed for serious use and is ruggedly constructed to withstand demanding conditions and heavy duty industrial applications. The transformer and load assembly is mounted on a 3/16" thick carbon steel mounting platform and the load center/distribution assembly is mounted to the standard 2" x 2" x 1/8" square carbon steel tubing frame, resulting in an extremely stable, durable and well protected power distribution platform. This model is equipped with forklift skid pockets, locking polyurethane casters, and a top located lifting eyelet which allows easy lifting with cable or chain hooks. This can be replaced for an additional cost with stainless steel, hot dip galvanized steel, or aluminum depending on the customer’s needs. Units are available up to 150kva and can be equipped with skids or trailer mounted.
This unit is weatherproof and ideal for use in applications including but not limited to, plant maintenance, wet location operations, as a welding station, shows and exhibits and marine applications. These units are popularly used in wet locations where external power sources are often necessary and work well in combination with industrial lighting solutions.
Larson Electronics is a manufacturer and as such can build transformers to your Specifications. Although we carry several models of power distribution systems, we can deliver custom ordered units almost as quickly as our prebuilt units. If this model does not meet your needs, please contact us at 1(647) 254-9757 or
Contact info@purilite.ca
.
Specifications
Line In: 480 VAC Three Phase
Line Out: 208Y/120VACÂ Three Phase
KVA: 30
120 VAC Outlets: Â 8 X 520R-125V-20amp GFI
240 (208Y) VAC Outlets: 2 X CS6369 Hubbell 125/250V 50 amp twist lock
Protection: GFCI Outlets, Onboard Circuit Breakers
Mounting: Skid and Lifting Eyelet Equipped Steel Frame
Wiring: 20` Line Power SO Cord (#6)
Disconnect: Fused ON/OFF Disconnect Switch
Dimensions: 34â€-L X 44â€-W X 58â€-H
Panel: 125 amp MLO
Features
Max Amps Output: 83.3 amps 208Y/120V 3 Phase
Max Amps Input: 50 amps @ 480V 3 Phase
Max Primary OCP: 5 0a MCB NEC Table 450.3(B)
