Larson 15 KVA Power Distribution System - 440V to 120V 1PH - (3) 480V + (6) 120V GFCI Duplex Receptacles
Larson 15 KVA Power Distribution System - 440V to 120V 1PH - (3) 480V + (6) 120V GFCI Duplex Receptacles
Sold by: Larson Electronics
This unit is Made In USA - Manufactured in Texas

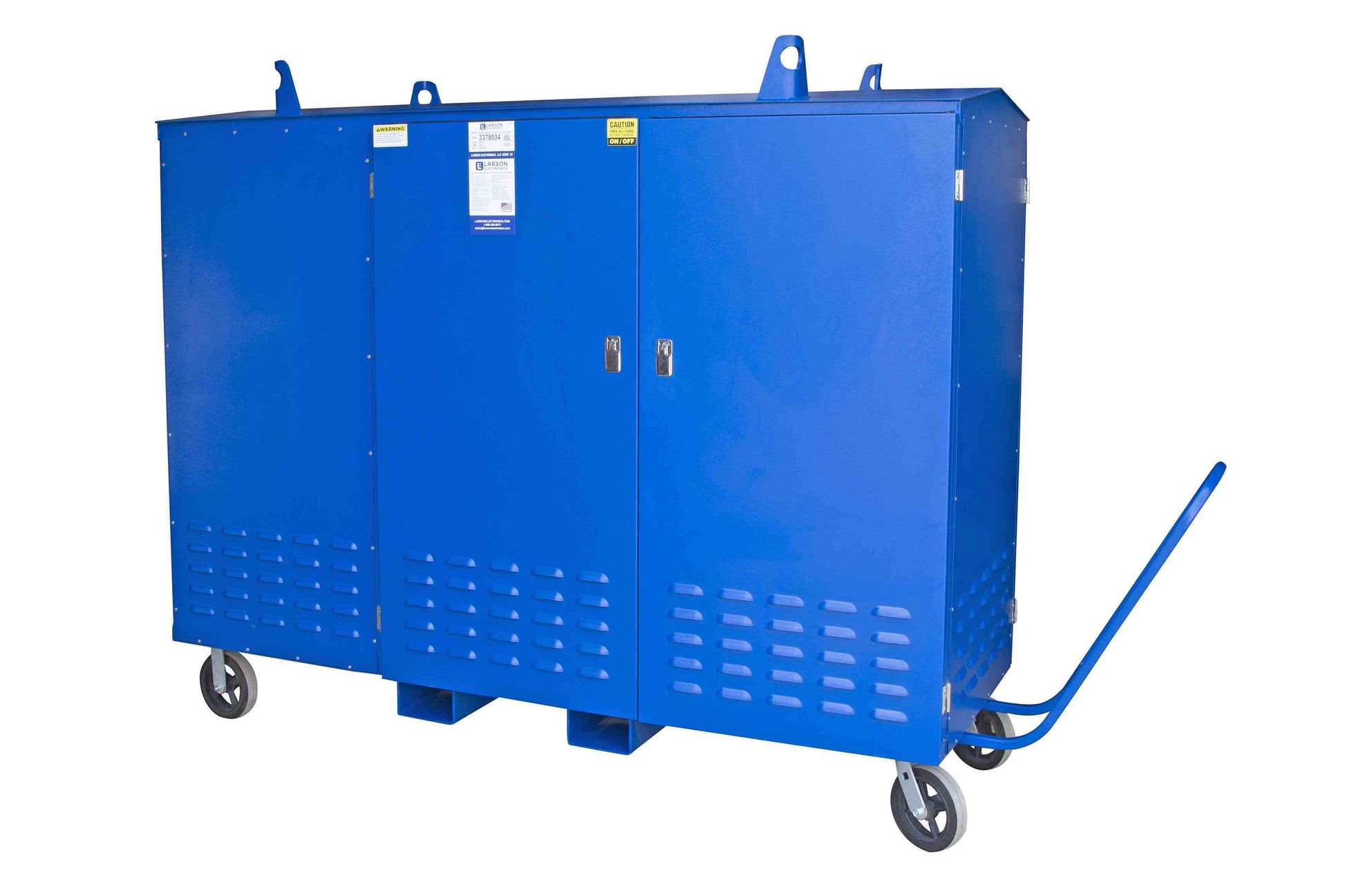

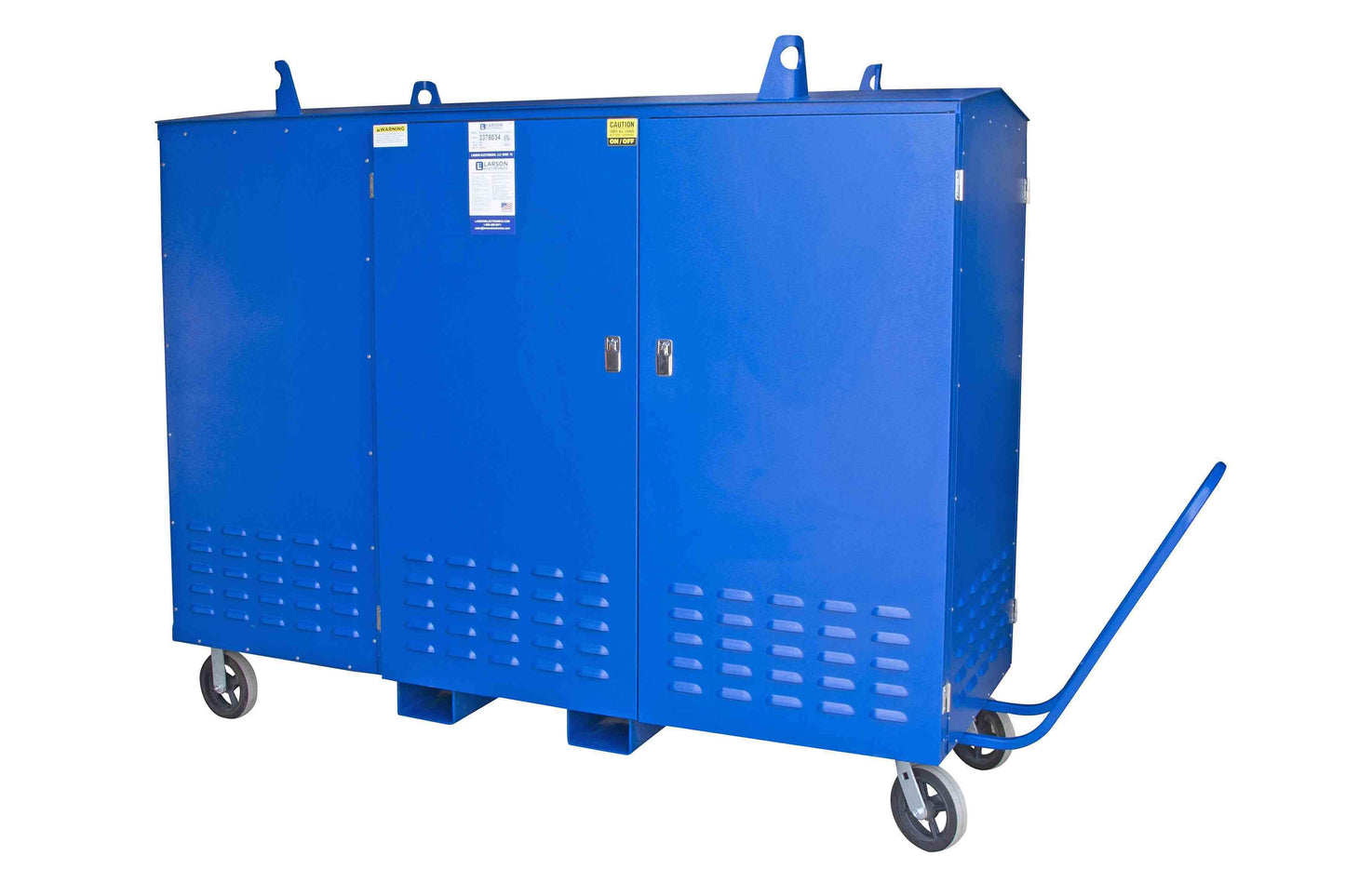

The Larson Electronics MGS-3X440V.30A-15KVA-6X120.20A power distribution substation converts 440V AC electrical current into 120V AC single phase. This unit provides operators the ability to safely tap into and distribute 440V AC power from a variety of sources including generators and direct grid power.
The MGS-3X440V.30A-15KVA-6X120.20A portable power distribution system gives operators the ability to power their 480 volt and 120 volt equipment from a single system. On the primary side, operators connect 440 volt line-in power via 100` of 2/4 SOOW cord to three L16-30R, 480V receptacles for 480V equipment. On the secondary side, operators connect to six GFCI duplex 120V receptacles for 120V equipment.
Operation:
A 100` 2/4 SOOW line-in cord brings 440V power to the NEMA 3R 125-amp, 480V primary panel, which contains one 40-amp breaker protecting the 30 KVA transformer, and three 30-amp, 480V breakers protecting three 30-amp, L16-30R, 480V receptacles, and passes 440V through to the transformer. The NEMA 3R 15 KVA transformer converts 440V power to 120V single phase and passes the current to the secondary panel. The secondary side of the transformer feeds a NEMA 3R 125-amp, 120V main lug only panel. This secondary panel contains six 20-amp, 125V breakers protecting six 20-amp, 120V GFCI duplex receptacles. All receptacles are equipped with weatherproof covers.
The transformer and distribution assembly is mounted onto a rugged carbon steel frame with integrated casters to allow easy transport. The standard frame constrution is 1/4" thick, 2" square tubing frame. This can be replaced for an additional cost with stainless steel, hot dip galvanized steel, or aluminum depending on the customers needs. This power distribution system is designed for outdoor use and applications including but not limited to, plant maintenance, hazardous location operations, as a welding station, shows, exhibits, and marine applications.
Certification:
Larson Electronics is a UL 1640 panel shop and certified to build portable power distribution systems. All units are built in accordance to NFPA 70 (National Electric Code) and certified to UL 1640. All equipment is NEMA 3R rated for indoor and outdoor use and provide a degree of protection against dirt, water, and ice. NEMA 4 and NEMA 4X equipment can be equipped upon request.
Grounding:
Transformer is grounded to the frame and we provide a grounding lug on the frame for the earth ground.
Applications:
This power distribution system is ideal for indoor or outdoor use and applications including but not limited to, construction sites, plant maintenance, plant turnarounds, shows, exhibits, and shipyard operations. These power distribution systems are popularly used in applications where external power sources are often necessary. We also offer class rated transformers for use within explosion proof and hazardous location environments.
Larson Electronics is a manufacturer and as such can build portable power distribution systems to your Specifications. Although we carry several models of power distribution transformers, we can deliver custom ordered units almost as quickly as our prebuilt units. If this model does not meet your needs, please contact us at 1(647) 254-9757 or
Contact info@purilite.ca
to discuss your specific requirements.
Specifications
Line-In Cord: 100` 2/4 SOOW Cord
Line-In Cord Cap: -
Primary Voltage: 440V 3PH
Primary Disconnect: -
Primary Panel: 480V 125A N3R Panel
Primary Breakers: (3) 30A, (1) 40A
Primary 125A @ 440V 440V 3PH - 480V 125A N3R Panel (3) 30A, (1) 40AReceptacles: (3) 30A L16-30R [480V] Weatherproof Covers
Receptacles Primary : (3) 30A L16-30R [480V] (6) 20A 120V GFCI Duplex [120V]
: 100` 2/4 SOOW Cord 125A @ 440V - 125A @ 120V 440V 3PH - 480V 125A N3R Panel (3) 30A, (1) 40APrimary Receptacles (3) 30A L16-30R [480V] Weatherproof Covers 15 KVA 440V to 120V 3PH N3R 120V 1PH 120V 125A MLO N3R (6) 20A (6) 20A 120V GFCI Duplex [120V] GFCI Square cube frame, casters Powder coated steel frame 1(647) 254-9757 34” X 44” X 58” 1-903-270-1187 650 pounds info@purilite.ca
Primary Protection: Weatherproof Covers
Transformer: 15 KVA 440V to 120V 3PH N3R
Secondary Voltage: 120V 1PH
Secondary Panel: 120V 125A MLO N3R
Secondary Breakers: (6) 20A
Secondary Receptacles: (6) 20A 120V GFCI Duplex [120V]
Secondary Protection: GFCI
Form Factor: Square cube frame, casters
Frame Materials: Powder coated steel frame
Dimensions: 34” X 44” X 58”
Weight: 650 pounds
