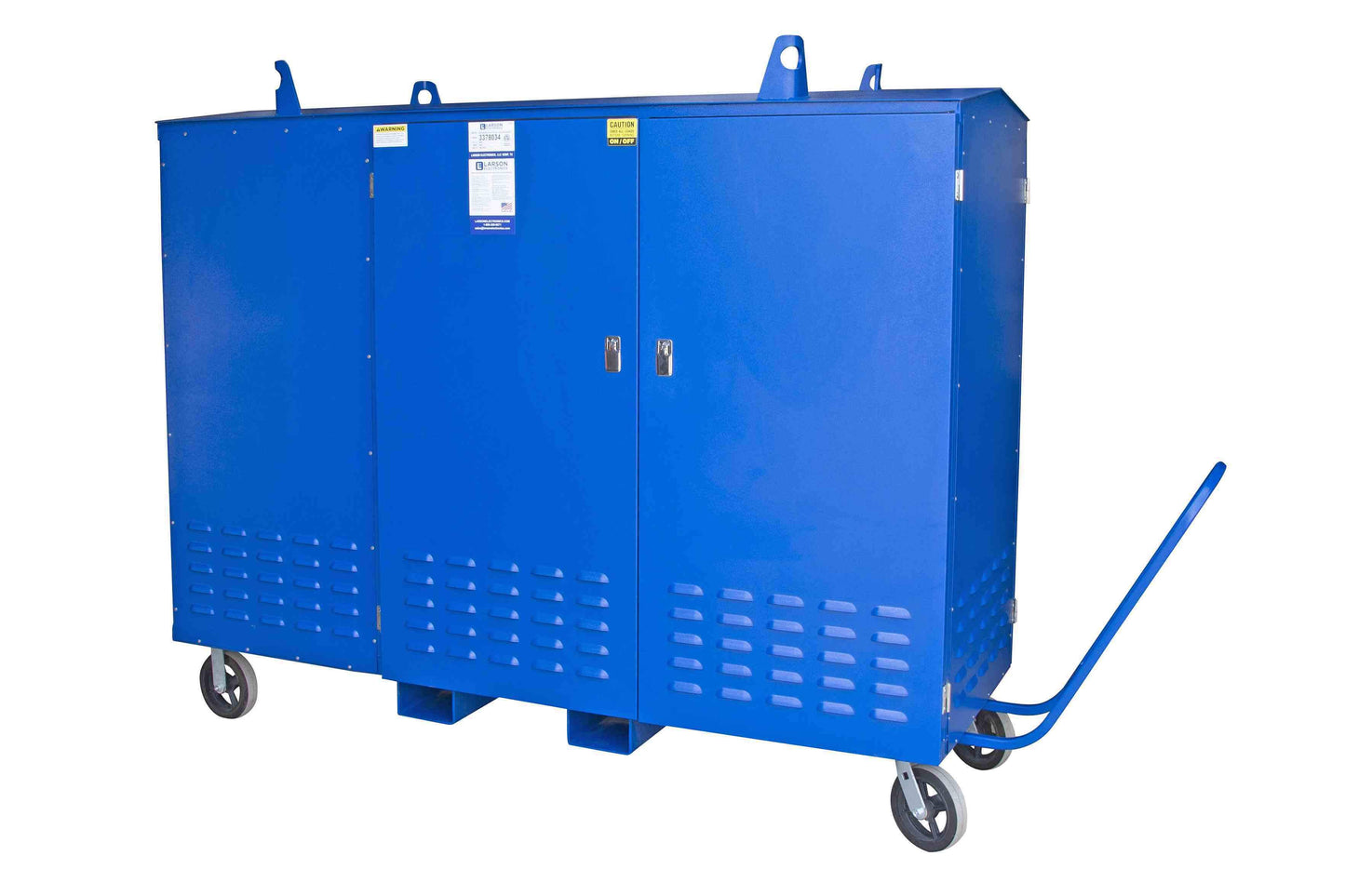

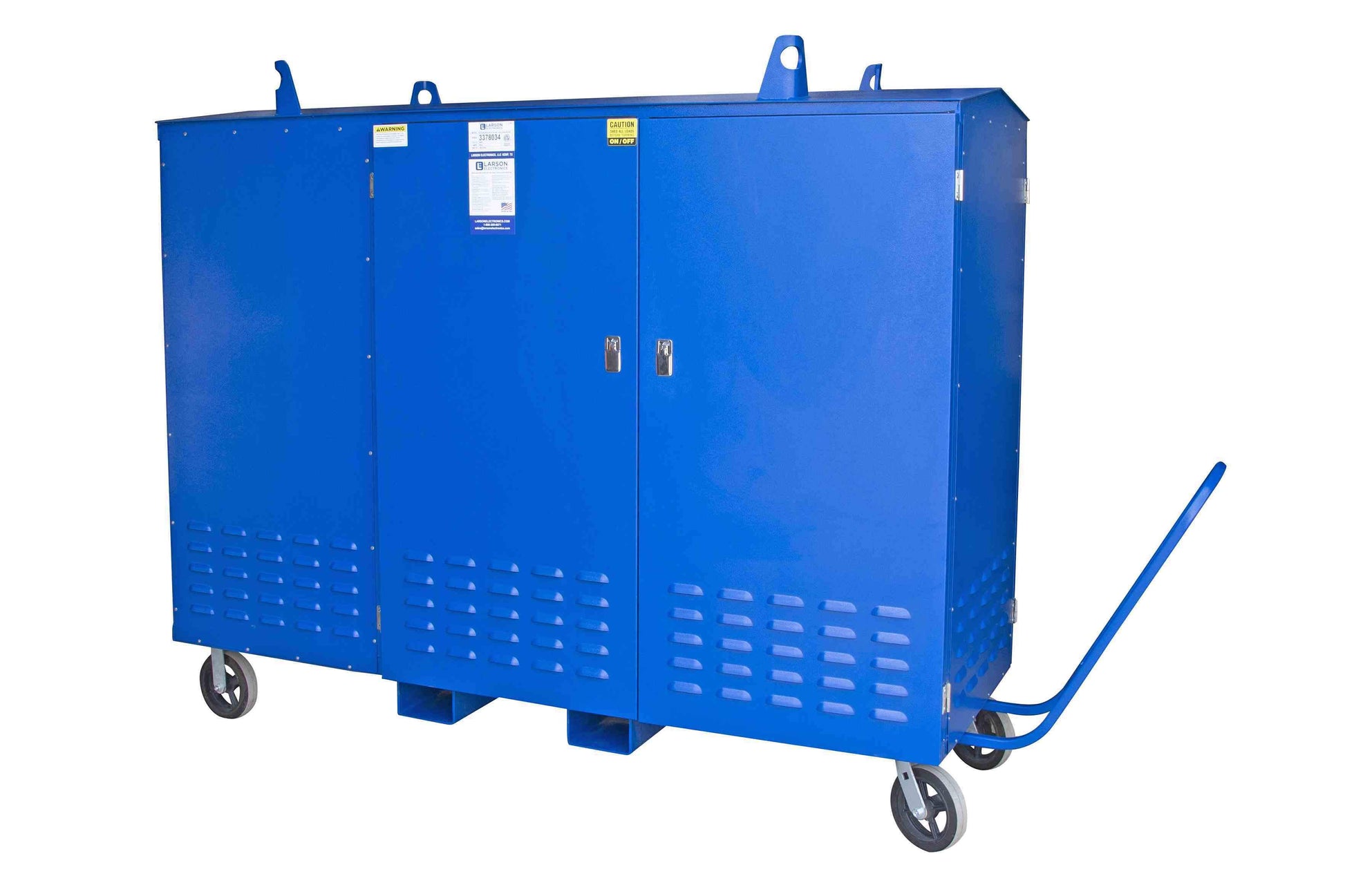

Larson Power Distribution Substation - 45 KVA - Converts 480V to 4 X 120V AC Outlets and 4 X 120/240 Outlet
Larson Power Distribution Substation - 45 KVA - Converts 480V to 4 X 120V AC Outlets and 4 X 120/240 Outlet
Sold by: Larson Electronics
This unit is Made In USA - Manufactured in Texas
The Larson Electronics MGS-45KVA-4X120-4X240 series heavy duty power distribution substation converts 480 VAC three phase electrical current to single phase 120V AC and 240 Delta. This unit provides operators the ability to safely tap into and distribute 480VAC power from a variety of sources including generators and direct grid power.
This power distribution substation is designed for use with linear (motor) loads only.
The MGS-45KVA-4X120-4X240 transformer provides a safe and effective way for operators in industrial settings to tap into and utilize power sources independently of the work area. This unit provides an effective power source for operators performing plant turnarounds, maintenance and cleaning in hazardous areas, equipment installations and repairs and any activities requiring an alternative to native power sources. This unit is designed to operate with 480 three phase which it then transforms to 120 Volt single phase and 240 Delta. This transformer makes 120VAC available via 4 GFCI protected 20 amp receptacles and four 30 amp, 120/240V receptacles.
20` of number 6 SO cord connects line-in power to a fused ON/OFF disconnect switch which controls current to the 45 KVA, 480 Volt, 3 phase transformer. The transformer is mounted to a 1/8†thick diamond plate and the distribution assembly is mounted within a rugged 2" square carbon steel frame with 3" X 6" X 3/8" rectangular carbon steel skid pockets and a top located lifting eyelet to allow easy transport.
This unit is weatherproof and ideal for use in applications including but not limited to, plant maintenance, hazardous location operations, as a welding station, shows and exhibits and marine applications. These units are popularly used in hazardous locations where external power sources are often necessary and work well in combination with explosion proof lights.
Larson Electronics is a manufacturer and as such can build transformers to your Specifications. Although we carry several models of power distribution systems, we can deliver custom ordered units almost as quickly as our prebuilt units. If this model does not meet your needs, please contact us at 1(647) 254-9757 or
Contact info@purilite.ca
Specifications
Line In: 480 VAC Three Phase
Line Out: Â 45 120VAC Single Phase - 240 Delta
Disconnect: Â 60 amp Fused ON/OFF Disconnect Switch
KVA: Â 45
Panel: 200 amp
120 VAC Outlets: 4 X 120V-20amp GFI
240 Delta Outlets: 4 X 120/240V 30 amp
Protection: GFCI Outlets, Circuit Breakers
Mounting: Skid and Lifting Eyelet Equipped Steel Frame
Wiring: 20` Line Power SO Cord (#6)
Disconnect: Â 60 amp Fused ON/OFF Disconnect Switch
F 120 VAC Outlets:Protection: Mounting:
Disconnect:
Dimensions: 36"W X 30"D X 56"T
