Larson Power Distribution Station - (2) 480V L16-20R - 30KVA - (2) 240V L6-15R (4) 120V 5-20R Duplex GFCI
Larson Power Distribution Station - (2) 480V L16-20R - 30KVA - (2) 240V L6-15R (4) 120V 5-20R Duplex GFCI
Sold by: Larson Electronics
This unit is Made In USA - Manufactured in Texas

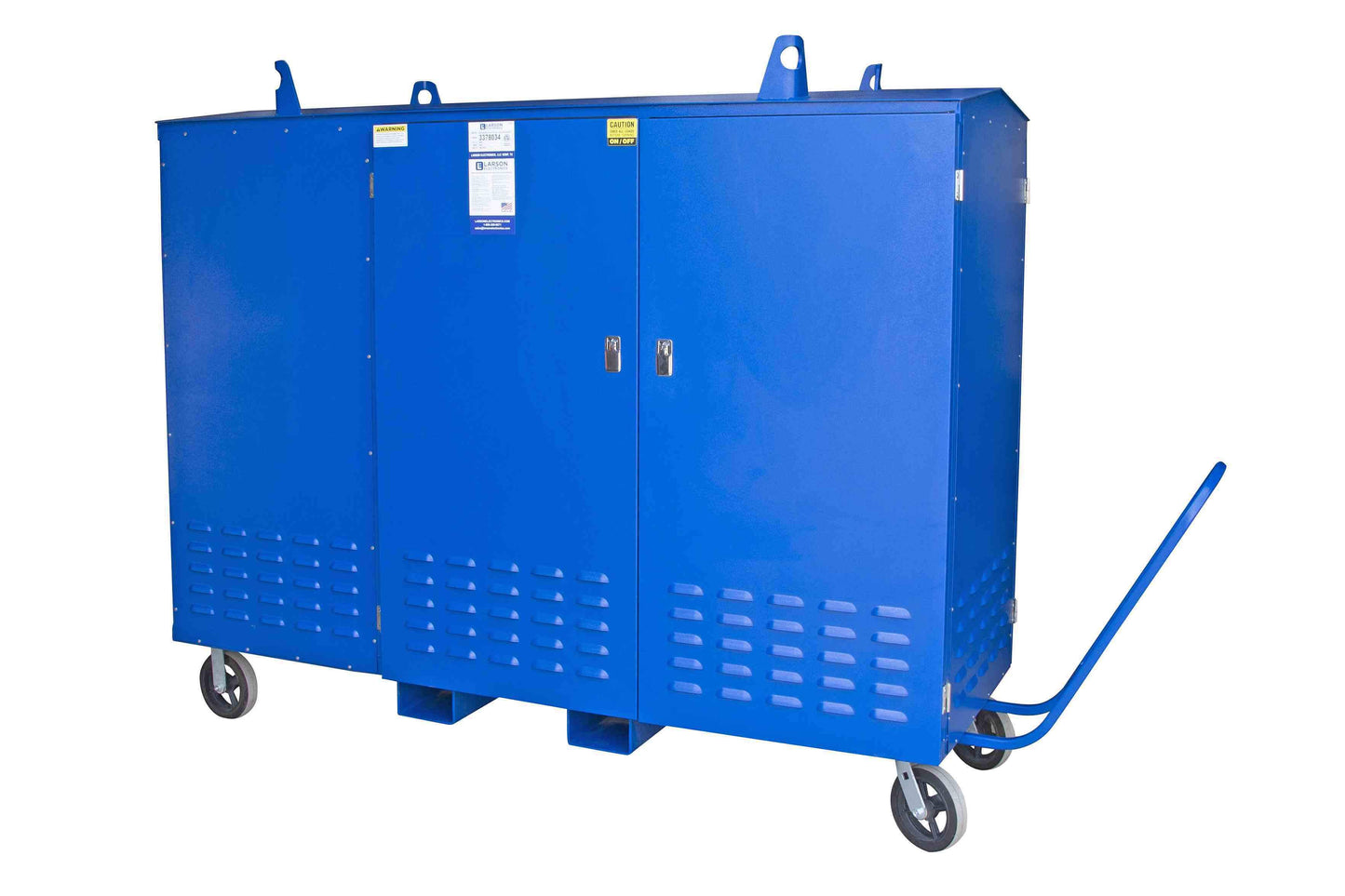

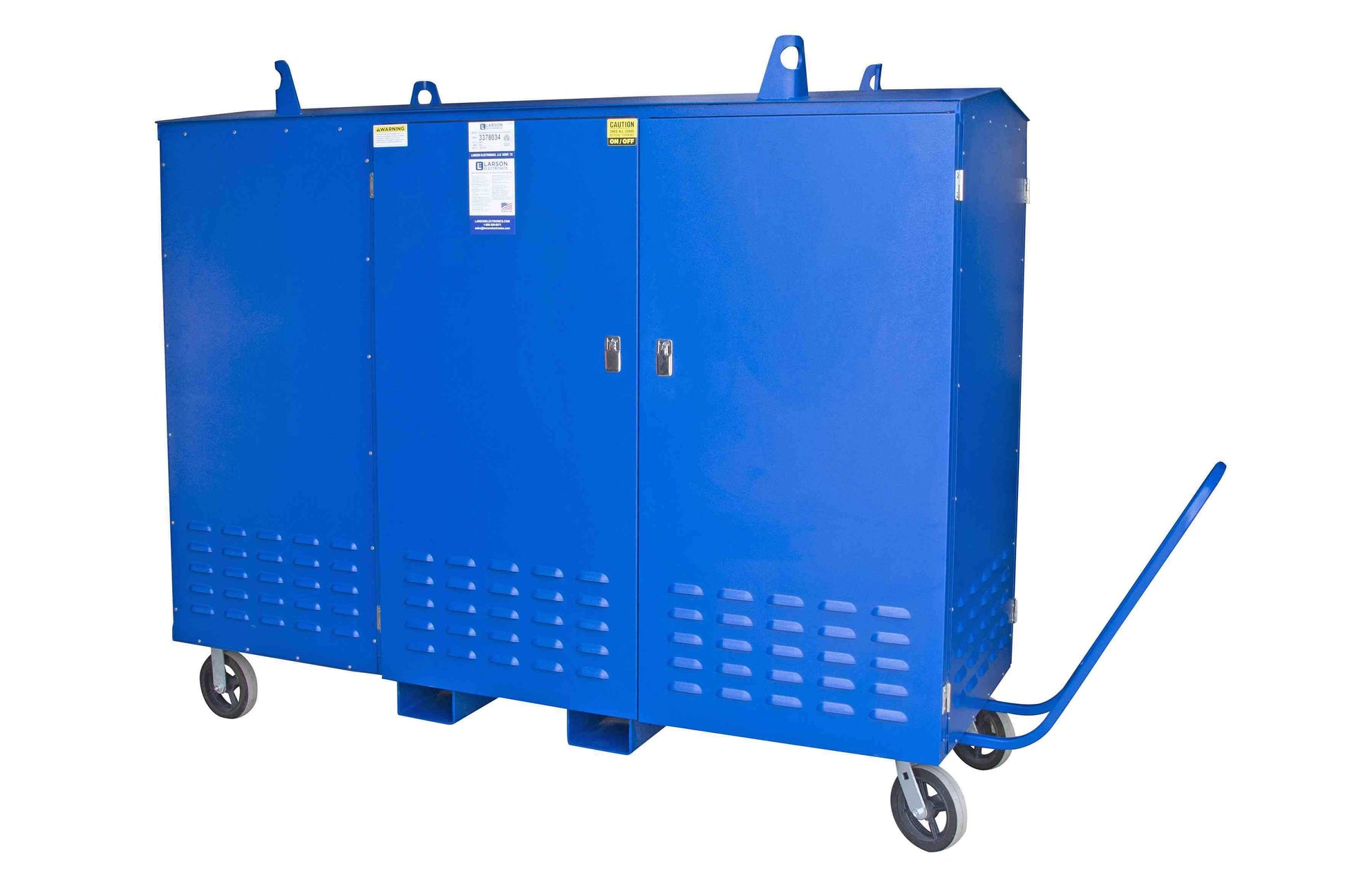

The Larson Electronics MGS-480.3P-2X20A-30KVA-2X240.15A-4X120.20A-100C power distribution substation converts 480V AC three phase electrical current into three phase 240V AC and 208/120V AC. This unit provides operators the ability to safely tap into and distribute 480V AC power from a variety of sources including generators and direct grid power.
The MGS-480.3P-2X20A-30KVA-2X240.15A-4X120.20A-100C portable power distribution system gives operators the ability to power their 480 volt, 240 volt and 208/120 volt equipment from a single system. On the primary side, operators connect 480 volt line-in power via 100` 6/4 SOOW cord. Operators connect 480V equipment to two L16-20R receptacles. On the secondary side, operators connect to two L6-15R receptacles for their 240V equipment and four 5-20R GFCI duplex receptacles for 208/120V equipment.
The 100` 6/4 SOOW line-in cord brings 480V three phase power to the NEMA 3R 100-amp, 480V three phase primary MLO panel, which contains two 20-amp, 480V breakers protecting two L16-20R receptacles. The 30 KVA transformer converts 480V three phase power to 240/208-120V three phase and passes the current to the secondary panel. The secondary side of the transformer feeds a NEMA 3R 100-amp, 240/208-120V three phase secondary MLO panel. This secondary panel contains two 15-amp, 240V breakers protecting two L6-15R receptacles and four 20-amp, 120V breakers protecting four 5-20R GFCI duplex receptacles.
Click Photo to Enlarge
Click Photo to Enlarge
Click Photo to Enlarge
Protective Construction:
Unlike many portable power distribution boxes made of plastic and utilizing thin gauge, low grade metals in their construction, this unit is designed for serious use and is ruggedly constructed to withstand demanding conditions and heavy duty industrial applications. The transformer and load assembly is mounted on a 3/16" thick carbon steel mounting platform and the load center/distribution assembly is mounted to the standard 2" x 2" x 1/8" square carbon steel tubing frame, resulting in an extremely stable, durable and well protected power distribution platform. This model is equipped with forklift skid pockets, locking casters, and a top located lifting eyelet which allows easy lifting with cable or chain hooks. This can be replaced for an additional cost with stainless steel, hot dip galvanized steel, or aluminum depending on the customer’s needs. Larger units are available upon request and can be equipped with skids or trailer mounted.
Certification:
Larson Electronics is a UL 1640 panel shop and certified to build portable power distribution systems. All units are built in accordance to NFPA 70 (National Electric Code) and certified to UL 1640. All equipment is NEMA 3R rated for indoor and outdoor use and provide a degree of protection against dirt, water, and ice. NEMA 4 and NEMA 4X equipment can be equipped upon request.
Grounding:
Transformer is grounded to the frame and we provide a grounding lug on the frame for the earth ground. ~Please check all motor loads for dual rated motors that will work 208 or 240.~
Applications:
This power distribution system is ideal for indoor or outdoor use and applications including but not limited to, construction sites, plant maintenance, plant turnarounds, shows, exhibits, and shipyard operations. These power distribution systems are popularly used in applications where external power sources are often necessary. We also offer class rated transformers for use within explosion proof and hazardous location environments.
Larson Electronics is a manufacturer and as such can build portable transformer systems to your Specifications. Although we carry several models of power distribution transformers, we can deliver custom ordered units almost as quickly as our prebuilt units. If this model does not meet your needs, please contact us at 1(647) 254-9757 or
Contact info@purilite.ca
to discuss your specific requirements.
Specifications
Line-in Cord: 100` 6/4 SOOW Cord
Line-in Cord Cap: Customer Provided
Primary Voltage: 480V 3-Phase
Primary Panel: 480V 100A MLO N3R
Primary Breakers: (2) 20A [480V], (1) 50A [XMFR]
Primary Receptacles: (2) L16-20R [480V]
Primary Protection: Weatherproof Covers, Primary breaker
Transformer: 30KVA 480V 3P to 240/208-120V
Secondary Panel: 240/208-120V 100A MLO N3R
Secondary Breakers: (2) 15A [240V], (4) 20A [120V]
Secondary Receptacles: (2) L6-15R [240V], (4) 5-20R GFCI Duplex [120V]
Secondary Protection: GFCI, weatherproof covers
Form Factor: Square Tube Frame, Skid Pockets, Top Pick Eye & Locking 8†Locking Casters
Frame Materials: Powder Coated Steel Frame
Dimensions: 34†X 44†X 58â€
Weight: 400 lbs
