Adjustable Tank Nozzle (Manway) Mounted Explosion Proof LED Light - 250’ Cord - 16,000 Lumens


Sale price$6,723.99


Specifications / Additional Information
MMLP-1MLED-JH24-250 Manhole Mount Light Ratings
Lamp Type: LED T5 Temperature Rating
Dimensions: 16" Diameter,  5" Thickness- 24" Man-Way Support Bracket Class 1 Division 1&2 Groups C and D
Weight: 41lbs Class 2 Division 1&2 Groups E,F,G
Total Watts: 150W Class 3 Division 1&2 Groups E,F,G
Lumens: 16,000 cETL Certified to UL844 and C22.2 Standards
Voltage: Multi- 100-277 VAC, 50/60Hz
Lighting Configuration: Flood Pattern
Beam Lux: 8500@ 1 Meter 1250@ 3 Meters
Color Temp: 6000K, 70-CRI.
Temp Rating: T4A -40C to +60C
Temp Rating: T5 -40C to +65C
Mounting: 24" Manway Entry Support Brackets
Cable: 250` SOOW Cable
' Product Overview '

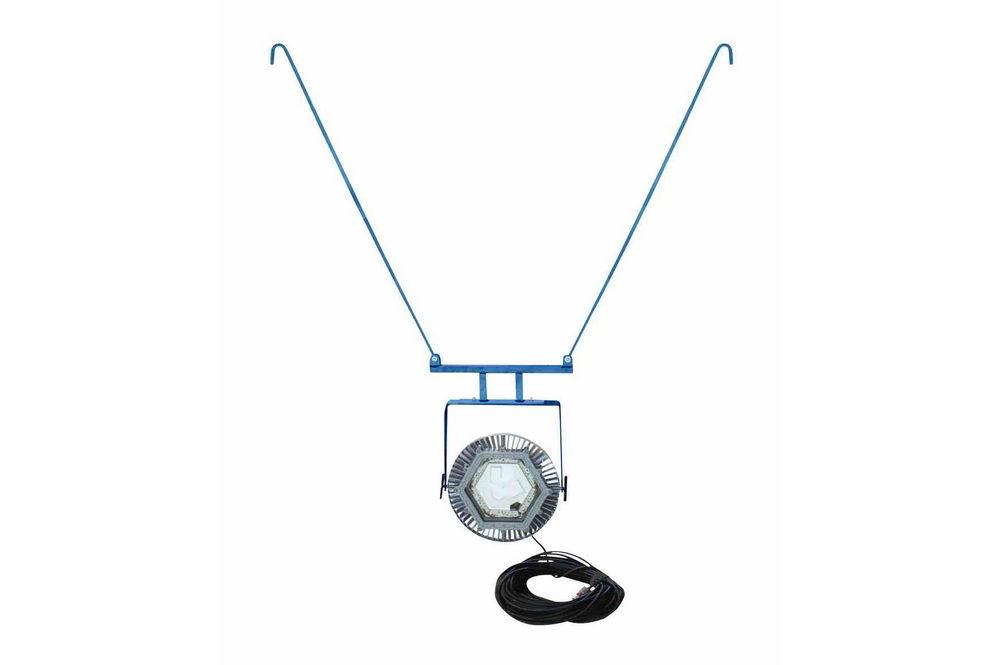

Made in the USA The Larson Electronics MMLP-1MLED-JH24-250 Temporary Manhole Mount Light Fixture provides operators with a powerful and highly convenient alternative to traditional string or tank lights. LED technology, an innovative 24" tank nozzle support bracket, and compact design, makes this lamp an excellent lighting solution for operators working within storage tanks, railcars, and other locations where entry is through a 24" man-hole opening. This Class 1 Division 1 & 2, Class 2 Division 1 & 2 explosion proof light fixture provides 16,000 lumens of high quality light while drawing only 150 watts. The copper free aluminum alloy body is powder coated for added durability and an attractive aesthetic appearance. A special heat dissipating design in conjunction with advanced LED technology helps this fixture to achieve an excellent 60,000 hour rated lifespan with 80% lumen retention. This 16 inch diameter LED light is suspended three feet into the manway entry by two 1/2" wide 1/4" thick aluminum straps. The mounting straps have a 3 1/2" fold over to accommodate 1/4" nozzle lips. This light fixture is designed to hang inside the tank or railcar while the supporting plate rests on the lip of man-way opening. The inverted mounting hooks are 24" apart and each hook features 30 degrees of adjustability. This mounting system provides an extremely versatile lighting option for those working in confined spaces such as rail cars, storage tanks, ship tanks and the like where entry is through a 24" man-way opening.
Click Photo to Enlarge
This light is universal votlage capable and can be operated on a range from 100 to 277 volts AC 50/60Hz without any need for a special ballast or modifications. This tank light is equipped with 250` of SOOW cable and terminated in an explosion proof straight blade plug. The aluminum body and LED lamp give this light excellent durability and resistance to vibration and impacts. The housing is specially designed to dissipate heat which increases the efficiency and lifespan of the LED luminaries. The LED lamp produces 16,000 lumens with a color temperature of 6000K and a color rendering index of 70, which produces colors and details much more accurately than high pressure sodium or mercury vapor luminaries. The HBLP-1MLED offers excellent convenience and effectiveness with a 24" manhole mounting support bracket that eliminates the need for special mounting fixtures or cumbersome string light systems.
High Quality Features Superior LED Benefits
1. Low power consumption. 2. Instant on/off operation. 3. Fixture constructed of extruded corrosion resistant copper free aluminum alloy. 4. Superior color rendering compared to HPS, LPS, MV. 5. Retains 80% lumen output after 60,000 operating hours. 6. Powder coated aluminum fixture body. 7. Highly convenient and innovative man-way support bracket provides an excellent alternative to string lights. 8. Low profile - Light weight 9. 16,000 Lumen output from only 150 watts 10. 250` SOOW cable 11. Explosion Proof Plug 1. 60,000 hour lifespan. 2. Can SAVE 50% or more on energy. 3. Qualifies retrofit projects for financial incentives, including utility rebates, tax credits and energy loan programs. 4. Reduces energy use and prolongs life-spans of peripheral cooling units (A/C, refrigeration) 5. 100% recyclable. 6. No toxins-lead, mercury. 7. No UV light, infrared radiation or CO2 emissions. 8. Qualifies buildings for LEED and other sustainable business certifications. 9. Bright, even light maintains consistent color over time. 10. Instant on/off €“ No flickering, delays or buzzing. 11. Very good color rendering. 12. Vibration/impact resistant. 13. Significantly cooler operation. 14. Less frequent outages, higher output improves workplace safety.
