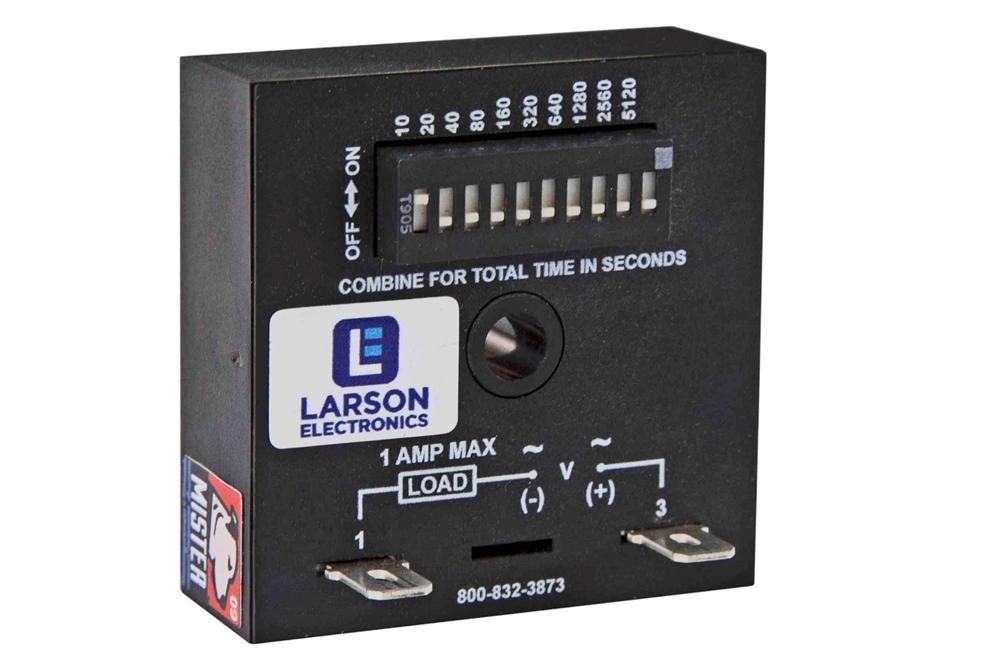

Adjustable Time Delay Relay - AC Voltage Input - Adjustable Time Delay


Sale price$375.99


Specifications / Additional Information
MOD-TMD-RLY Adjustable Time Delay Relay Ratings/Approvals
Type: Time Delay Relay Encapsulated Circuitry
Dimensions: 2"L x 2"W x 1.21"D Solid State Design
Weight: 3.9 oz Compact and Lightweight
Input Voltage: 24 V AC, 48 V AC, 72 V AC, 120 V AC, 208 V AC, 220 V AC, 240 V AC, or 277 V AC, 50/60Hz Operating Temp -20°C to +60°C
Operation: ON/OFF Recycling Solid-State Flasher (Continuous Duty) Adjustable
Timer Range Options: 0.1-102.3 Seconds, 1-1023 Seconds, or 10-10230 Seconds
On/Off Ratio: ~50%
Load Type: Inductive, Resistive, or Incandescent
Maximum Load Rating: 10 Amps
Inrush Rating: 100 Amps
Protection: Encapsulated Circuitry
Operating Temperature: -20°C to +60°C Toll Free: 1-800-369-6671
Storage Temperature: -40°C to +85°C Intl: 1-214-616-6180
Mounting: Surface Mount E-mail:
' Product Overview '
The MOD-TMD-RLY from Larson Electronics is a an Adjustable Time Delay Relay that features a range of input voltages and offers adjustable from 10 to 1000 seconds. The MOD-TMD-RLY has encapsulated circuitry and is capable of handling loads up to 10 amps. The versatility of this unit makes it ideal for applications that require various flash rates and operating voltages. The MOD-TMD-RLY is offered in a variety of different input voltage and timer range configurations. See the available options listed below. This adjustable time delay relay features a fully solid state design with no moving parts and can handle loads of up to 10 amps and high inrush loads up to 100 amps. This compact and lightweight unit is designed to be surface mounted. This particular model must be bolted to a metal surface using the included heat sink compound. The maximum mounting surface temperature is 90°C. Voltage Options: The voltage options for the MOD-TMD-RLY are as follows: 24 V AC, 48 V AC, 72 V AC, 120 V AC, 208 V AC, 220 V AC, 240 V AC, or 277 V AC. Please specify your choice when ordering. Timer Range Options: The timer on the MOD-TMD-RLY is configured in seconds. It is available in the following timer ranges: 0.1-102.3 seconds, 1-1023 seconds, or 10-10230 seconds. Please specify your choice when ordering.
