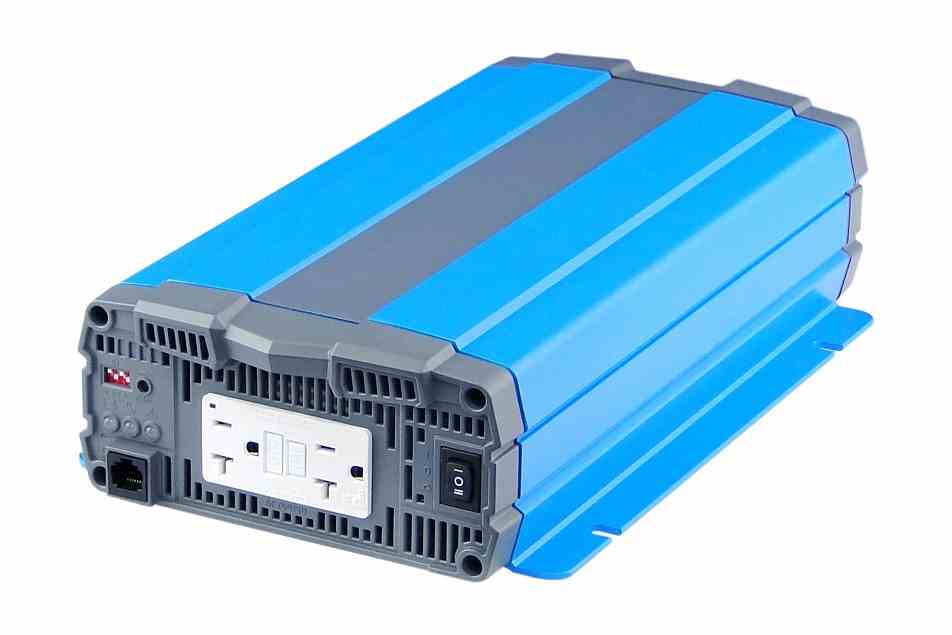

The Larson Electronics MT-IVT-48VDC-500VA-120VAC-R1 Step Up Transformer converts DC input to AC output in industrial sites. This fan-cooled power converter is rated at 500 watts and offers 48V DC input and 120V AC output @ 50/60 Hz. Designed for surface-mounting applications, AC output is accessible by two, GFCI receptacles.
The MT-IVT-48VDC-500VA-120VAC-R1 provides a safe and effective way for users to tap into and utilize 48V DC power sources and step up this current to 120V AC. Rated at 500 watts, this pure sine wave unit can be operated with input current ranging from 42V DC to 66V DC and an output current ranging from 100V AC to 120V AC (output voltage is selectable via a DIP switch). Output frequency is 50/60 Hz +/- 5%, also selectable using a DIP switch. The transformer provides reverse polarity (fuse), under voltage and over voltage input protection and short circuit, overload and over temperature output protection. Threshold for surge protection is 1,000 watts @ 1 minute.
This DC to AC transformer offers a -20°C to +40°C operating temperature range. The unit has a 90% maximum conversion efficiency and fully isolated input/output. Cooling is facilitated by a temperature/load controlled cooling fan. Powered by an advanced microprocessor for ease of use, the power converter features three LED indicator lights for real-time monitoring.
DC input is facilitated by DC +/- input terminals (#14 AWG). Operators may access two GFCI receptacles on the output side for AC power. This unit is compatible with a remote control (not included).
The MT-IVT-48VDC-500VA-120VAC-R1 caters to surface mounting applications via four openings on the back of the transformer.
In order to obtain the best performance and the longest operational life from these units, it is recommended that you do not exceed 75% of the unit’s output amperage. To determine if this converter suits your desired application, add together the total wattage of the equipment you intend to use with this unit and divide this total by 48 volts to find the total amperage draw that will be placed upon the converter. For example, if you are using one of our 240 watt LED lights, 240 watts divided by 48 volts is 5 amps. Running these units at 100% of their capacity can create excess heat and lead to shortened converter life.
Voltage rectification, power conversion, DC to AC transformer, DC to AC conversion and more.
Contact firstname.lastname@example.org for more information about our custom options tailored to meet your specific industry needs.
Line In Voltage:
Line Out Voltage: 120V AC (+/- 5% - 100V AC, 110V AC, 115V AC, 120V AC)
Rated Power: 500W
Output Frequency: 50/60 Hz (+/- 5%)
Waveform: Pure Sine Wave
Efficiency: 90% Maximum 90%
No Load Power Consumption @ Save Mode: < 0.05A @ 48V DC
No Load Power Consumption @ No Load Mode: < 0.5A @ 24V DC
Full Load Efficiency: 90%
Input Under Voltage Protection: 42.0V ± 1.0V DC
Input Under Voltage Alarm: 44V DC ±1.0V DC
Input Under Voltage Recovery: 50V DC ± 1.0V DC
Input Over Voltage Protection: 66V DC ± 1.0V DC
Input Over Voltage Recover: 58V DC ± 1.0V DC
Output Overload/Short: Shutdown Output Voltage, Restart to Recovery
DC Input Reverse Polarity: Fuse
LED Indicators: (3) Input Voltage Level, Output Load Level, Faulty Status
Cooling: Temperature/Load Controlled Cooling Fan
Input Protection: Reverse Polarity (Fuse), Under Voltage, Over Voltage
Output Protection: Short Circuit, Overload, Over Temperature
Surge Protection: 1000W for 1 Minute
Operating Temp: -20°C to +40°C
Storage Temp: -30°C to +70°C
Storage Temp Humidity: 10 to 95% RH
DC Input: +/- Terminals (#14 AWG)
AC Output Receptacles: (2) GFCI
Color: Blue, Black
