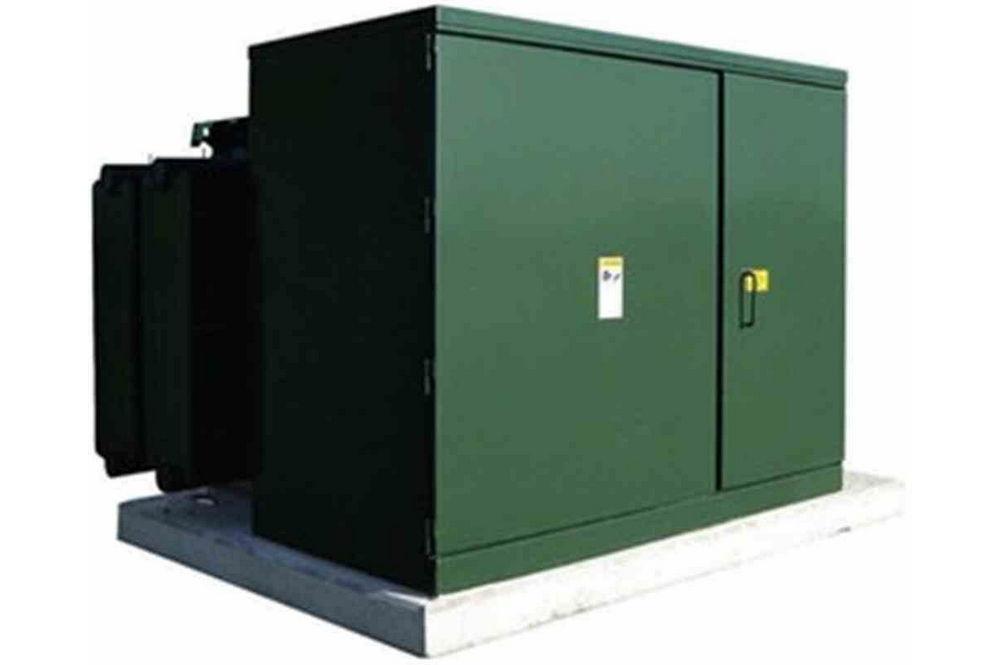

3750 kVA Pad Mount Transformer - 4160Y/2400 Wye Primary - 480Y/277 Wye Secondary - Oil Cooled - N3R
3750 kVA Pad Mount Transformer - 4160Y/2400 Wye Primary - 480Y/277 Wye Secondary - Oil Cooled - N3R
Sold by: LARSON ELECTRONICS
The
MT-PML-3P-4160Y.2400-3750KVA-480Y.277-N3R-CMLK-MOD1 4160Y/2400 3 Phase Energy Efficient
Pad Mount Dead Front Radial Feed Transformer from Larson Electronics is
powerful, reliable and designed with the environment in mind. Suitable for both
indoor and outdoor applications, the MT-PML-3P-4160Y.2400-3750KVA-480Y.277-N3R-CMLK-MOD1
provides increased reliablity and protection against critical equipment
failures. The lower operating costs, lower heat emissions and lower cost of
ownership make this transformer ideal for a wide range of applications and
businesses.
*PLEASE NOTE: ANY FREE SHIPPING
OFFERS DO NOT APPLY TO POWER DISTRIBUTION PANELS, TRANSFORMERS, OR SUBSTATIONS*
Transformer
Features: With a transformer rating of 3750 kVA, the
MT-PML-3P-4160Y.2400-3750KVA-480Y.277-N3R-CMLK-MOD1 transformer is a three phase unit with
a primary voltage of 4160Y/2400 V Wye. It also provides a secondary voltage of
480Y/277 V Wye. Featuring robust construction, this unit's cores are
manufactured with non-aging, cold-rolled silicon steel laminations using state
of the art technology. The MT-PML-3P-4160Y.2400-3750KVA-480Y.277-N3R-CMLK-MOD1 features a load center on the output side with camlock connections.
This
unit boasts a low cost of ownership and is highly energy efficient. Lower heat
emissions mean less cooling is needed as well. The Standard NEMA Type 3R
enclosure makes the unit suitable for either indoor or outdoor applications and
it can be pad mounted. The unit also features mineral oil cooling and a 65°C
temperature rise and is rated IP24. The
MT-PML-3P-4160Y.2400-3750KVA-480Y.277-N3R-CMLK-MOD1 is designed so that no excess oil
heating occurs from unbalanced loads or phase loss on the primary
side.
Benefits: The
MT-PML-3P-4160Y.2400-3750KVA-480Y.277-N3R-CMLK-MOD1 pad mount dead front radial feed
transformer offers many benefits to the consumer. Precision cut aluminum
transformer winding material help to improve performance. The close tolerances
used during manufacturing also eliminates burrs which hinder performance. Each
core is specially coated to prevent the ingress of moisture and are electrically
balanced to minimize axial forces during short circuit situations.
This
transformer provides owners with significant energy savings as well as offering
environmental benefits. Higher efficiency not only extends the life of the
transformer, but also turn into cost savings for owners in the form of lower
energy bills and decreased cost of ownership. Integrated floor and wall mounting
brackets make installation fast and easy and the offset outward facing floor
installation holes allow for easy power tool access.
Applications:
General purposes.
Larson Electronics is a
manufacturer and as such can build stationary and portable transformer systems
to your specifications. Although we carry several models of power distribution
transformer systems, we can deliver custom ordered units almost as quickly as
our prebuilt units. If this model does not meet your needs, please contact us at
1-800-369-6671 or to
discuss your specific requirements.
