Pneumatic LED Light Pole - Two LEDP3W-3 LEDs - Extends to 13.5' - Air Operated - 120-277V AC
Pneumatic LED Light Pole - Two LEDP3W-3 LEDs - Extends to 13.5' - Air Operated - 120-277V AC
Sold by: LARSON ELECTRONICS
| PLM-13.5-NAC-2XLEDP3W-3-1227 Pneumatic LED Light Tower | Features |
| Pole Materials: Aluminum | Pole Adustable from 5 to 13.5 Feet |
| Pole Dimensions: 5` to 13.5` Extendible Pole | Pneumatic operation |
| Threaded Fittings: M13 x 1.50 | Dual LED Light Bars |
| Pole Mounting: Square, Four Hole Bracket | Multi-Voltage 120-277 VAC |
| Pole Features: Pneumatic opperation | IP68 Waterproof LED Lights |
| Watts: 18 | Supplied with a 25 Foot Cord |
| Voltage: 120-277V AC via encapsulated transformer | |
| Lighting Configuration: 10° Spot or 40° Flood | |
| Wiring: Deutsch IPD / LADD DT04-2P connector | |
| Amps: 1.6 | *Air compressor sold seperately |
| LED Light Color: 6000K | |
| LED Life Expectancy: 50,000 Hours | |
| Lamp Housing Colors: Black-White | |
| Total Lumens: 1,368 | |
| Spot Beam Single Lamp: 675 Feet Length | |
| FloodBeam Single Lamp: 100`L x80`W |

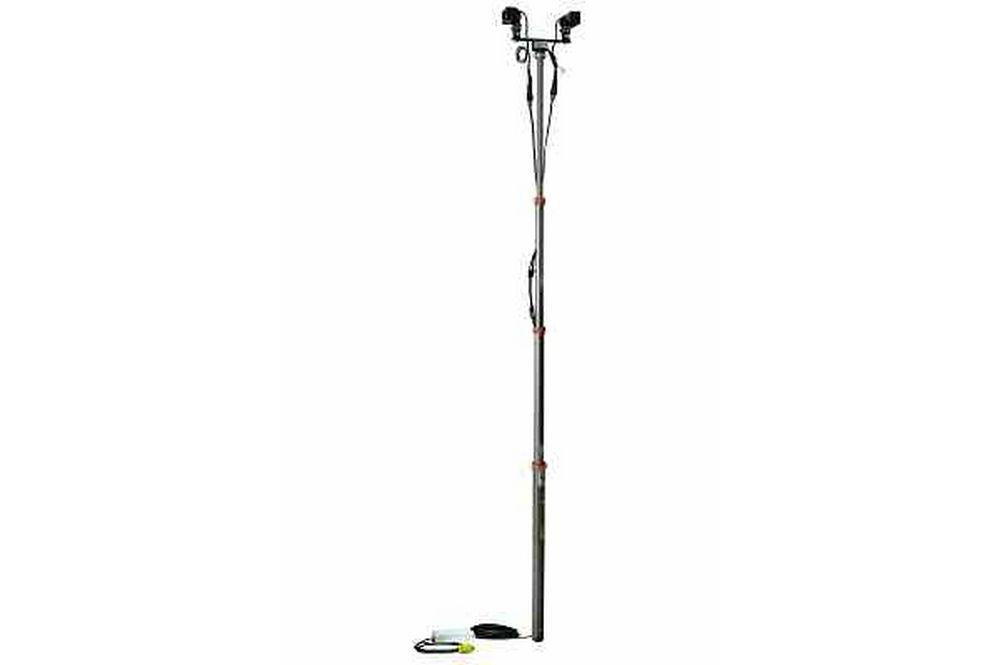

| The PLM-13.5-NAC-2XLEDP3W-3-1227 is a pneumatic mini light pole that safely and effectively allows operators to elevate a pair of included high intensity LED lights and adjust their height of 13.5 feet. This air powered mini light tower is equipped with two LED light heads to provide area illumination . The PLM-13.5-NAC-2XLEDP3W-3-1227 is a pneumatic telescoping light pole that allows operators to elevate a pair of our high intensity LEDP3W-3 LED lights and adjust their height from 5 feet to 13.5 feet. The top of the pole is fitted with an aluminum mounting plate holding two of our LEDP3W-3 LED lights which produce a total of 1,368 lumens of intense light output. This design is ideal for boats and trailers where the convenience of easily deployed and stowed high power lighting is desired.  The tower is constructed of high strength, heat treated aluminum tubing for strength and durability. This tower is comprised of four sections, and includes a locking top mounting plate for easy removal of lights or cameras. The mast is elevated using an air compressor, sold seperately. An air release valve located at the base of this pneumatic mast allows operators to lower the tower. The 16/3 AWG wiring is internally routed, meaning no loose wiring when the tower is collapsed and no exposed wiring to fray or become damaged. The PML-13.5-NAC includes a three-wire internal wiring harness with 12 inches extending from both ends of the tower to allow easy installation and connection. |
| This adjustable telescoping light system includes two 9 watt LEDP3W-3 LED light bars which produce a combined total of 1,368 lumes of light output at 1.6 amps and 18 watts. The lamps are IP68 rated waterproof and can be adjusted indepenently of each other for maximum area coverage. These lights are multi-voltage and can be operated with voltages ranging from 120 to 277 volts AC via an inline transformer, making them ideal for connecting to power from vehicles and boats. The encapsulated AC to DC transformer steps 120-277V AC down to DC voltage. This transformer has 20 feet of oil and chemical resistant SOOW cable on the output side that connects the LED light to the stepdown transformer, and 5 feet of SOOW cable on the input side of terminated in an industrial grade 5-15 plug. Each of these light bars contain three CREE XLamp XR-E® three watt LEDs producing 228 lumens each paired with high purity optics to produce a tightly focused 10 degree spot beam approximately 375’ long. We also offer optional floodlight versions with a 40 degree beam spread to provide more light over a larger area nearer the fixture, making flood versions ideal for use as work and area lights. These LED light bars are waterproof to 3 meters, sealed against intrusion by dust and dirt and very ruggedly constructed to withstand the most demanding environments, conditions and applications. These light masts are typically mounted to trailers or other stable surfaces via square mounting base-plate which has been drilled to accept four mounting bolts. This light tower weighs 35 lbs, and can easily support and lift 30 lbs fixtures. The entire tower assembly is shipped via common freight carrier and when shipped measures approximately 6 feet long, 2 feet wide, 2 feet tall and weighs 60 lbs. Larson Electronics is a manufacturer and as such can custom tailor these units to the customer’s requirements with longer sections and larger mounting plates.   |
