300 Watt Pneumatic Light Tower - Extends to 18 Feet - Two 150W High Output LED Light Heads

LARSON ELECTRONICSSKU: PL3-PLM-18-2X150W-LED
filler

Price:
Sale price$23,241.99

Description

Specifications / Additional Information
PLM-18-2X150W-LED Pneumatic Light Tower Quick Summary
Mast Specs 8 - 8 Ft Extendable Mast
Length: 8 feet - 18 Feet Pneumatic Operation
Weight: 300 lbs Electric Air Pump
Capacity: 150 lbs
Operation: Pneumatic Mast - Electric Air Pump Lights
Mounting:1/2" thick, 12 inch Square, Four Hole Bracket IP68 Waterproof to 3 meters
Shipping: Common Freight Active Heat Management
Shipping Weight:380 lbs Ambient Op Temp -40C to +80C

LED Light Specs
Lamp Type: CREE XLamp-XPG® LED
Watts: 300 (150W ea)
Lumens: 29,580 (14,790 ea) Phone: 1-903-270-1187
Amps: 2.5 (on 120 volts) Toll Free: 1-800-369-6671
Lighting Configuration: 25° Spot or 60° Flood Fax: 1-903-498-3364
Color Temp: 6000K E-mail:
' Product Overview '

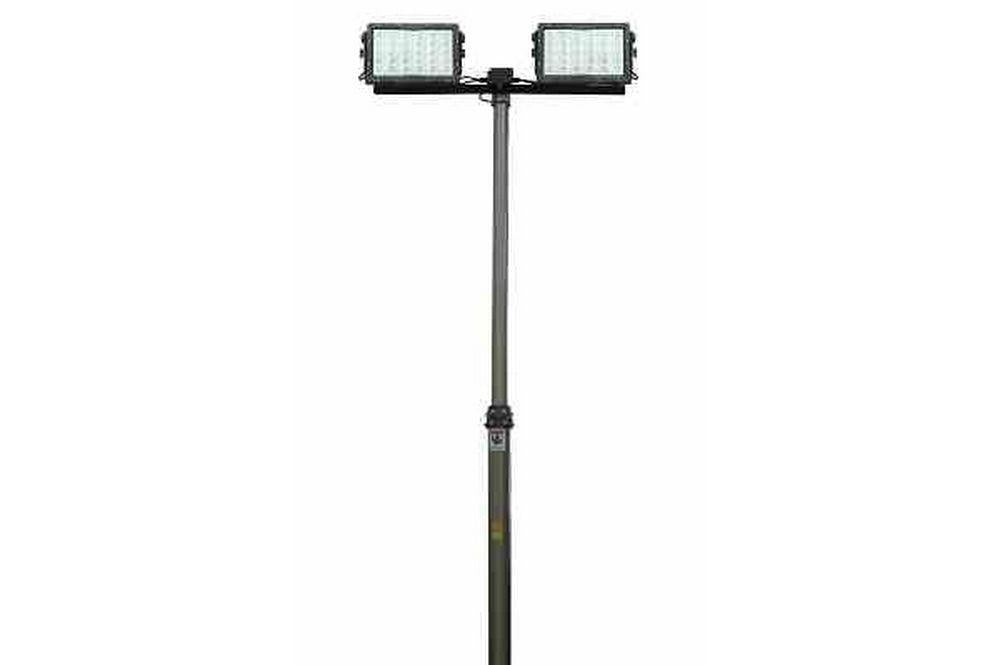

The PLM-18-2X150W-LED Pneumatic Light Tower from Larson Electronics is an 18 foot extendable light tower equipped with two LED light fixtures producing approximately 29,580 lumens. The two 150 watt LED lamps produce a wide spread of intense white light, allowing this unit to effectively cover large work areas with high quality illumination. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO LIGHT MASTS OR LIGHT TOWERS* The PLM-18-2X150W-LED telescoping pneumatic light tower allows operators to quickly and safely deploy 300 watts of intense LED lighting in locations where elevated illumination is needed for maximum area coverage. This three section light boom can be extended to 18 feet for maximum area coverage and collapsed to 8 feet for closer more intense illumination. A locking top mounting plate allows operators to easily remove the light assembly for storage or transport. The mast is elevated using an included 250 watt 220 Volt AC 50/60hz, 1/3 horsepower air compressor. An air release valve located at the base of this pneumatic mast allows operators to lower the tower.
Included with this light tower are two of our wet area suitable fixtures producing approximately 14,790 lumens each at 150 watts per light head. Each lamp features sixty CREE XLamp XPG® five watt LEDs producing 493 lumens each arranged in rows and paired with high purity optics to produce a well focused 25 degree spot beam that is ideal for providing far reaching concentrated illumination while still covering a substantial amount of area. We also offer optional floodlight versions with a 60 degree beam spread to provide more light over a larger area nearer the fixture, making flood versions ideal for use as dedicated work and area lights. These LED lights are waterproof to 3 meters, sealed against intrusion by dust and dirt, and very ruggedly constructed to withstand the most demanding environments, conditions and applications. Each floodlight is securely fastened to the light boom and each lamp includes a support bracket to help maintain lamp stability within its housing. The lamps are connected to the power source via a water tight male pin connector that attaches to a receptacle located on the end of the telescoping boom. All wiring runs through the mast, meaning no loose wires when the tower is collapses. These light masts are typically mounted to trailers or other stable surfaces via a 12 inch square, 1/2 inch thick mounting base-plate which has been drilled to accept four mounting bolts (3/4 inch). A 24 inch wide and 1/4 inch thick mounting plate is attached to the upper section of the mast which provides a strong and stable platform for the two LED fixtures. We can equip this mast with 1000W or 1500W Metal Halide lights or a wide variety of high powered LED lights with comparable power. Call us at 1-800-369-6671 or contact us at to discuss any special custom ordering requirements. Suggested Applications: Construction sites, event lighting, emergency services, highway projects, industrial plants, mining, excavation, natural disaster relief, environmental cleanup, and anywhere a mobile light source with large area coverage capability is needed.
