|PLM-18-3X150W-LED Pneumatic Light Tower
|8 - 8 Ft Extendable Mast
|Length: 8 feet - 18 Feet
|Weight: 300 lbs
|Electric Air Pump
|Capacity: 150 lbs
|Operation: Pneumatic Mast - Electric Air Pump
|Mounting:1/2" thick, 12 inch Square, Four Hole Bracket
|IP68 Waterproof to 3 meters
|Active Heat Management
|Shipping Weight:380 lbs
|Ambient Op Temp -40C to +80C
|LED Light Specs
|Lamp Type: CREE XLamp-XPGÂ® LED
|Watts: 450 (150W ea)
|Lumens: 44,370 (14,790 ea)
|Amps: 3.75 (on 120 volts)
|Toll Free:Â 1-800-369-6671
|Lighting Configuration: 25Â° Spot or 60Â° Flood
|Color Temp: 6000K

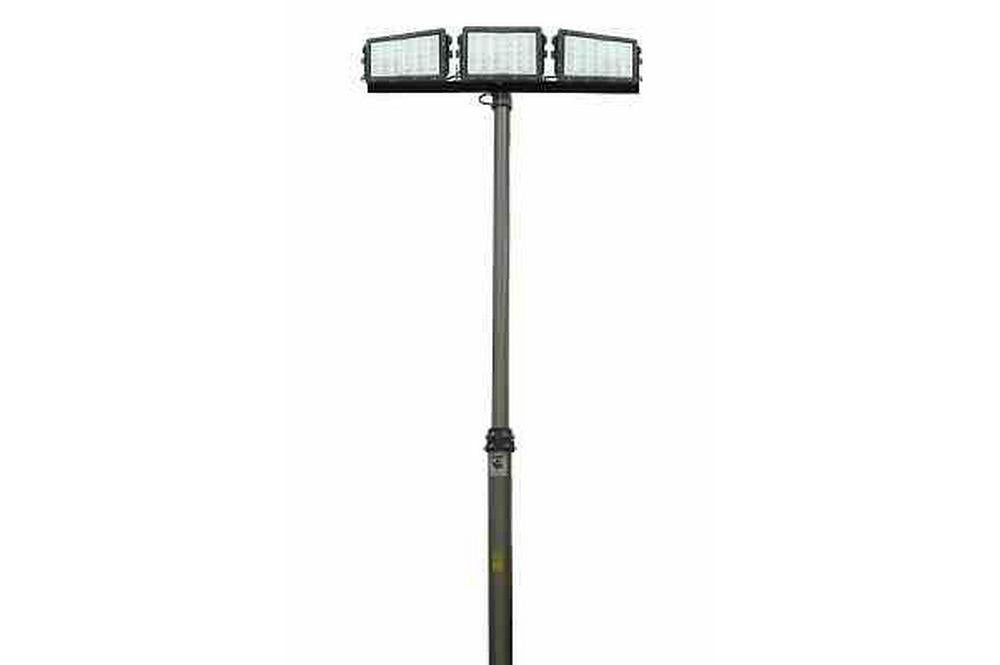

|The PLM-18-3X150W-LED Pneumatic Light Tower from Larson Electronics is an 18 foot extendable light tower equipped with three LED light fixtures producing approximately 44,370 lumens. The three 150 watt LED lamps produce a wide spread of intense white light, allowing this unit to effectively cover large work areas with high quality illumination. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO LIGHT MASTS OR LIGHT TOWERS* The PLM-18-3X150W-LED telescoping pneumatic light tower allows operators to quickly and safely deploy 450 watts of intense LED lighting in locations where elevated illumination is needed for maximum area coverage. This three section light boom can be extended to 18 feet for maximum area coverage and collapsed to 8 feet for closer more intense illumination. A locking top mounting plate allows operators to easily remove the lamp assembly for storage or transport. The mast is elevated using an included 250 watt 220 Volt AC 50/60hz, 1/3 horsepower air compressor. An air release valve located at the base of this pneumatic mast allows operators to lower the tower.
|Included with this light tower are three of our wet area suitable fixtures producing approximately 14,790 lumens each at 150 watts per light head. Ninety CREE XLamp XPGÂ® five watt LEDs producing 493 lumens each are arranged in rows and paired with high purity optics to produce a well focused 25 degree spot beam that is ideal for providing far reaching concentrated illumination while still covering a substantial amount of area. We also offer optional floodlight versions with a 60 degree beam spread to provide more light over a larger area nearer the fixture, making flood versions ideal for use as dedicated work and area lights. These LED lights are waterproof to 3 meters, sealed against intrusion by dust and dirt, and very ruggedly constructed to withstand the most demanding environments, conditions and applications. Each floodlight is securely fastened to the light boom and each lamp includes a support bracket to help maintain lamp stability within its housing. The lamps are connected to the power source via a water tight male pin connector that attaches to a receptacle located on the end of the telescoping boom. All wiring runs through the mast, meaning no loose wires when the tower is collapses. These light masts are typically mounted to trailers or other stable surfaces via a 12 inch square, 1/2 inch thick mounting base-plate which has been drilled to accept four mounting bolts (3/4 inch). A 24 inch wide and 1/4 inch thick mounting plate is attached to the upper section of the mast which provides a strong and stable platform for the two LED fixtures. We can equip this mast with 1000W or 1500W Metal Halide lights or a wide variety of high powered LED lights with comparable power. Call us at 1-800-369-6671 or contact us at to discuss any special custom ordering requirements. Suggested Applications: Construction sites, event lighting, emergency services, highway projects, industrial plants, mining, excavation, natural disaster relief, environmental cleanup, and anywhere a mobile light source with large area coverage capability is needed.
