MegaTower 50' Pneumatic Megatowerâ„¢ - 21 Foot Trailer -Extends 13-49 Feet -Mount Lights and Equipment

LARSON ELECTRONICSSKU: PL3-PLM-50-5S-TLR
filler

Price:
Sale price$224,904.00

Description

Specifications / Additional Information

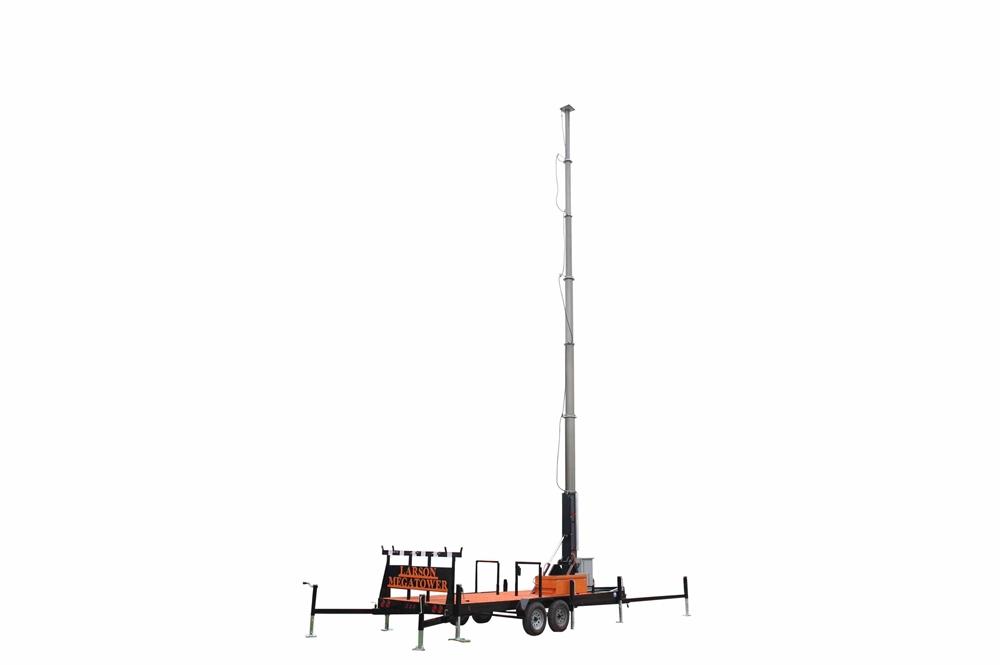

PLM-50-5S-TLR Trailer Mounted 9-Stage Light Megatower™ Quick Summary
Light Mast Specs 13` to 49` Light Mast
Tower Length: 22` to 58` Steel Construction
Materials: Heat Treated 6063B/T5 Aluminum Removable Aluminum Mast Head
Qty of Stages: (9) 4-Point Retractable Outrigger System
Finish: Anodized Powered Boom Deployment
Operation: Pneumatic w/ Hydraulic Ram Powder Coated Finish
Made in the USA
Trailer Specs
Materials: Steel
Trailer Dimensions: 21`-L x 7`-W trailer bed
Height (Mast Collapsed & Upright): 21`-9/32"-H
Height (Mast Extended): 58`-H
Footprint (Outriggers Extended): 34`-3/4" x 12`-9/16"
Hitch: 3" Lunnett
Wiring: 7-Pin Flat
Axles: 7,000 lbs w/ Electric Brakes
Suspension:  Leaf Spring
Outriggers: (4) 6` x 6" x 6" I-Beams Retractable w/ (4) 7,000 lbs Manual Leveling Jacks
Wheels:  (4) 16" 5x4.5" Steel Rims
Tires: (4) P235/80R16
Weight:
Shipping:
Shipping Weight: Common Freight
Options:Length- Mounting-Fixtures/ Call Us for Special Requirements
3 year warranty replacement on this light mast. The customer ships the failed light mast to Larson Electronics at their expense. If the failure is a manufacturer defect, we will repair and/or replace the unit.
' Product Overview '
Made in Texas ***Please note, LED lights are NOT included*** The Larson Electronics PLM-50-5S-TLR trailer mounted fold over 7-stage Megatower™ provides a safe and effective mounting option for operators to use various light heads to elevations up to fifty feet. This pneumatic light tower folds over for easy transportation, features a hydraulic ram upright assist, and air powered pneumatic mast. A mast head capable of mounting up to sixteen light heads allows operators to mount lights and equipment to the top of the pneumatic mast. The entire assembly is mounted onto a 21` by 8` tandem axle trailer, allowing operators to transport this fold over boom from location to location. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO LIGHT MASTS OR LIGHT TOWERS* This telescoping seven stage pneumatic Megatower™ from Larson Electronics is designed to allow operators to quickly and safely deploy lighting in locations where illumination must be elevated to heights up to 50` for effective coverage. This light boom can be extended to 50` for maximum area coverage, and collapsed to 13` for applications where a footprint smaller is required. The tower is constructed of heat treated aluminum tubing with 2.69` foot of overlap per section. The mast is elevated using an included hydraulic ram, and extended to its full height using a trailer mounted air compressor.
Click Images to Enlarge
Telescoping Boom: The pneumatic telescoping boom is constructed of heat treated aluminum with an anodized finish and extends up 50` in height. This boom is raised from and lowered to the folded position by a single hydraulic ram, and extended or retracted by pneumatic system with equipped air compressor. Wiring/Controls: Wiring for the customer provided light heads are grouped into banks of four. Each bank in wired into the NEMA 3R breaker control box at the base of the mast. Operators control the light heads via an on/off switched breaker per bank of four light heads. The air compressor and battery charger are also powered from within this breaker box. Power is provided to the control box via a 20` 10/4 SOOW whip with flying leads for connected to terminal mount gensets. Operators supply 240/120V or 208/120V (depending on the configuration) to the light plant. The mast elevation is controlled by a push button switch to operate the hydraulic ram, allowing operators to raise the mast to the upright position. The vertical deployment is operated by an up/down level, allowing operators to extend it to its full 50` height or retract it to the collapsed height. Trailer: The entire unit is mounted onto a four wheel, tandem axle trailer constructed of 8" box steel equipped with axles. Each axle is rated at 7,000 lbs and equipped with P235/80R16 tubeless tires and wheels. The rear axle is equipped with electric brakes. Tongue weight is rated at 650 lbs and an adjustable 3” lunnett eye for pintle hitches provides secure hookup to tow vehicles. A single 7,000 lbs rated tongue jack provides a stable connect-disconnect platform as well as additional stability during tower deployment. Standard heavy duty safety chains are included. This trailer also includes a front mounted storage area for stowing tools and accessories. The trailer is finished in industrial grade Dupont™ paint for protection against rust and corrosion and provides an attractive finish. Overall dimensions of the entire trailer and boom assembly in the stowed for travel configuration is 21` long by 7’ wide. Six 7,000 lbs hand crank jacks are used for raising the trailer up off the ground, and four 7,000 lbs hand crank jacks mounted on extending outriggers are used for leveling and stabilizing the trailer assembly. Each of the four jacks are attached to a pivoting outrigger constructed of 6` by 6" by 6.3" steel I-beams. The jacks can be leveled by hand crank or attachment provided for power drills. These outriggers can be extended 6` out from the side of the trailer for added stability. This light plant can withstand 35 mph winds when fully extended. When lowered to 30`, the mast can withstand 50 mph winds. When lowered to 22`, the mast can withstand wind speeds up to 95 mph with gusts of 125 mph. Custom builds can be provided for higher wind speed resistance when fully raised. We offer a choice of finishing, equipped light heads, and with or without gensets. These towers can be fitted with Larson Electronics line of high output light heads, or customize the mast head to meet the mounting requirements for your equipment. Optional diesel generators and fuel cells can be equipped from factory, or retrofitted after purchase. The hydraulic system features -65° C cold weather rated rubber hydraulic hoses with metallic fittings and a cold weather rated high viscosity hydraulic fluid. The battery system that powers the hydraulic system features a cold weather rated sealed acid glass mat 12 volt battery wrapped in a heated battery blanket. A cold weather rated battery charger keeps the 12 volt battery charged. All battery components are enclosed within a NEMA 3R housing. All electrical components are wired using cold weather rated SOOW cable with rated to -50°C that features high flexibility, and extreme abrasion, acid, oil, and water resistance even in sub-zero climates.
Click Photos to Enlarge
Suggested Applications: Temporary lighting, construction sites, and security camera deployment. We can equip this mast with 1000W HID-22-SL-REM or 1500W HID-22-15M-SL-REM Metal Halide lights or a wide variety of high powered LED lights with comparable power, including the , , , , and .
