Larson Stud Mounted LED Light - 30 Watts - 2700 Lumen - 12V DC - 6" Pigtail w/ 2-Pin Deutsch Disconnect

Larson ElectronicsSKU: PL3-PML-30W-PAR46-NS

Sale price$1,011.99


PuriLite suggests you place an order directly with us for large Larson orders due to the potential customization requirements. Please call us at 1-844-787-5483 to place your order. If you prefer to place your order online, a PuriLite agent will be in touch with you to discuss any custom options.
Made in the USA

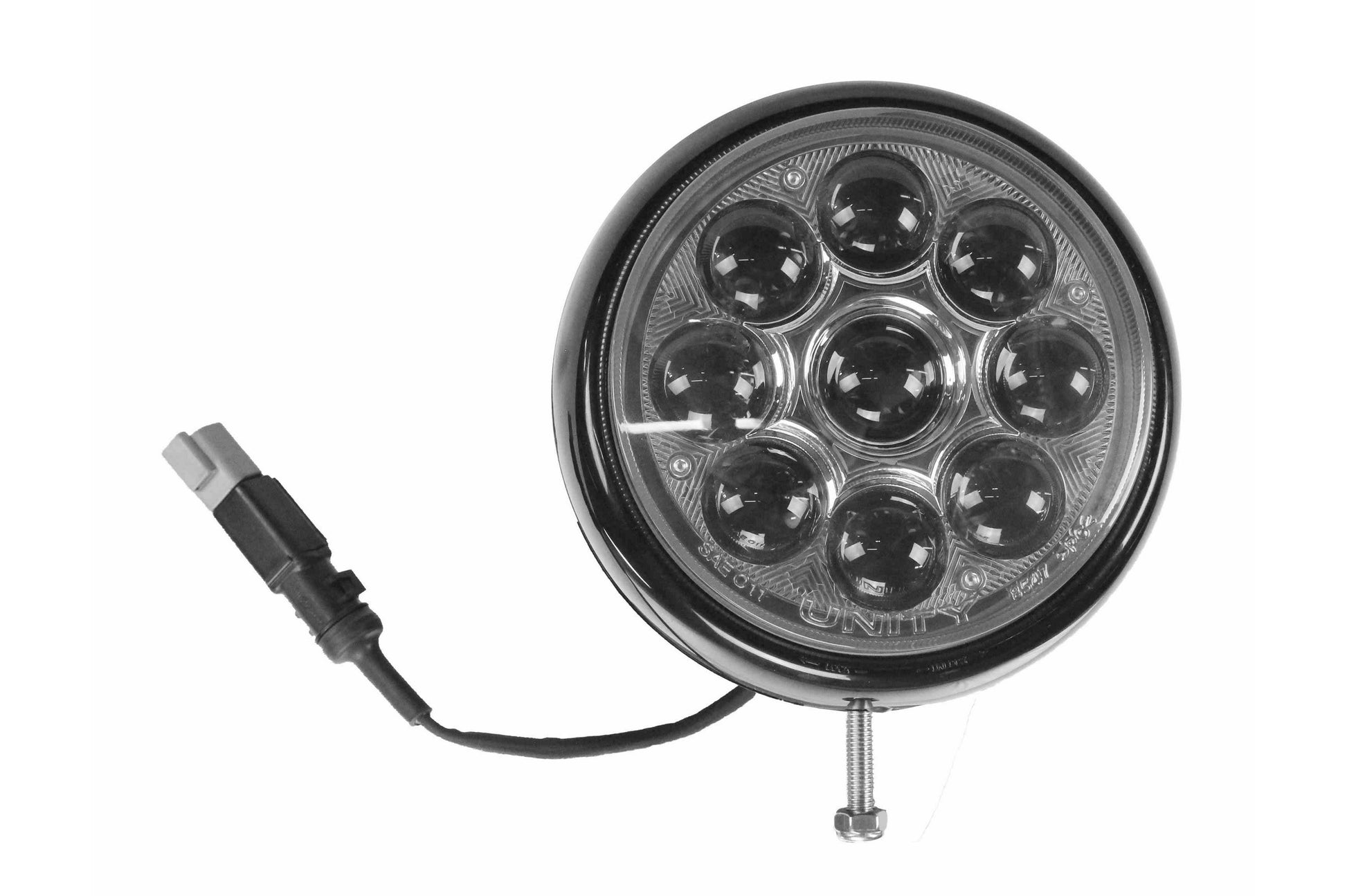

The PML-30W-PAR46-NS stud mount LED light produces 2,700 lumens and is an ideal auxiliary lighting option for trucks, equipment, law enforcement, and military transports and armored combat vehicles. Containing a high output LED lamp assembly housed within a rugged weatherproof housing equipped with a stud mounting bracket, this LED light operates with 12 volt DC and draws 2.5 amps.
The rugged PML-30W-PAR46-NS stud mount LED from Larson Electronics is weatherproof and designed for mounting to vehicle bumpers, roll bars, brush guards, turrets and almost anywhere a powerful auxiliary light is desired. Producing 2,700 lumens of intense light output, this light is available in spot beam configuration and will produce a beam 600’ long by 100’ wide spot beam. The housing provides weatherproof protection for the LED lamp assembly and is designed for easy adjustable mounting and the ability to withstand the rigors of military vehicle and equipment use.
The 30 watt Par46 LED bulb in this unit is highly resistant to damage from shocks and vibration as well as up to 80% more efficient than incandescent vehicle lights. The LED assembly has an average lifespan rating of 50,000 hours, and draws only 2.5 amps, making it an ideal choice for military and construction vehicles and equipment where reliability and low power consumption is important. There is no glass or filaments used in the construction of the LEB bulb and the solid state design of the LEDs results in a lamp that is as rugged as it is efficient.
Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current applied and emitting light. With LED lights, there is no warm up time or cool down time before re-striking and provide instant illumination when powered on, adding to the reliability of LED technology. By nature, LED light sources run significantly cooler than traditional lamps, reducing the chance of accidental burns and increased temperatures due to heat emissions. This solid state design of light emitting diodes provides a more reliable, stable, durable, and energy efficient light source over traditional lighting.
This vehicle light is fitted with a 5/8-18 X 2 stud that can be mounted to vehicle bumpers, roll bars, the turrets of armored vehicles, and just about anywhere a typical auxiliary light is mounted. The fixture is designed for rugged use and will hold position even under aggressive driving conditions. Users can adjust the lamp vertically once mounted for precise aiming.
The LED lamp assembly in this light contains built in driver which allow it to operate directly on 12 volt DC power source without the need for an additional transformer. This low voltage capability makes this light ideal for use on everything from cars and trucks which normally use 12 volt volt DC electrical systems.

Lamp Type: LED
Watts: 30
Lumens Per Watt: 90
Voltage: 9-46V DC
Lighting Configuration: 10° Spot Pattern
Total Lumens: 2,700
Color Temp: 6000K White
LED Lamp Life: 50,000 Hours
Dimensions: Approx 6"-Diam 4"-Depth
Mounting: Single Stud Adjustable Hinge Bracket
Weight: 4 lbs
Wiring: 6" wire terminated in a DT04-2P Waterproof Connector
