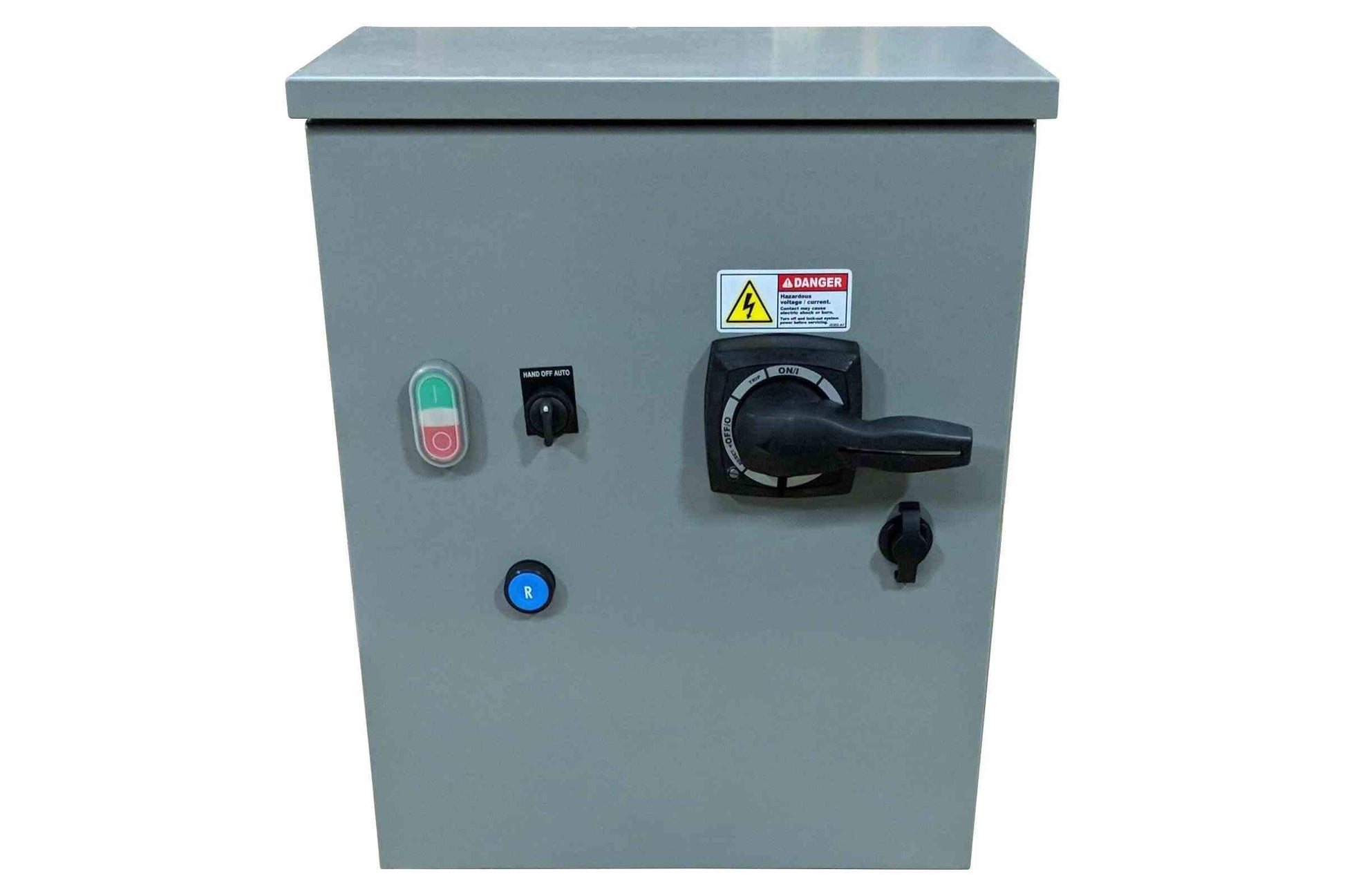

The Larson Electronics PNL-ATL-GPS-3P-230V-2HP-CB-CS-N3R-15021 Golf Course Pump Combination Motor Starter is designed for efficient water-pumping operations and effective irrigation systems. This direct-on-line (across the line) motor starter is compatible with 230V AC and features a 2HP rating. Equipped with push-button controls and HOA selector switch, this unit is protected by a NEMA 3R enclosure and is NRTL Certified to UL 508A.
The PNL-ATL-GPS-3P-230V-2HP-CB-CS-N3R-15021 combination motor starter offers robust industrial controls and system protection of water pumps and irrigation systems in golf courses. This direct-on-line motor starter operates on 230V AC and 6.8 amps (maximum). Rated at 2 horsepower, the unit uses a circuit breaker as a primary disconnect, which also provides circuit/overload protection. The industrial motor starter is equipped with a 3-position hand/off/auto (HOA) switch, as well as start/stop momentary and reset push buttons. Door and disconnect switch can be padlocked for security.
The across-the-line motor starter is protected by a fully-gasketed NEMA 3R enclosure, allowing the unit to be safely used in indoor and outdoor locations. This combination motor starter also carries a NEMA Size 1 rating, is service entry rated and certified to UL 508A.
The PNL-ATL-GPS-3P-230V-2HP-CB-CS-N3R-15021 is compatible with surface and wall mounting requirements. Mounting is facilitated by heavy-duty mounting ears.
Larson Electronics is a NRTL Certified to UL 508A panel shop and certified to build portable power distribution systems. All units are built in accordance to NFPA 70 (National Electric Code) and NRTL Certified to UL 508A. All equipment is NEMA 3R rated for indoor and outdoor use and provide a degree of protection against dirt, water, and ice. NEMA 4 and NEMA 4X equipment can be equipped upon request.
This combination starter is ideal for indoor or outdoor use and applications including but not limited to, golf course pumps, irrigation pumps, well water pumps, industrial motor controls, start-stop operations, condition monitoring, motor protection, pumps, compressors, fans, conveyor belts, manufacturing, processing sites, motor disconnect and more.
Custom Built Systems Available:
Larson Electronics is a manufacturer and we can build industrial motor starter systems to your Specifications. Although we carry several models of combination starters in stock, we can deliver custom ordered units almost as quickly as our prebuilt units. If this model does not meet your needs, please contact us at 1-844-787-5483 or
to discuss your specific requirements.
For built-to-spec models, Larson Electronics can customize a wide range of components and features to ensure compatibility with customer projects, existing systems at sites and technical requirements. Examples of custom features and additions we offer include the following: addition of panel control push buttons, illuminated push buttons, emergency-stop mushroom push button, indicator lights, 2-position and 3-position switches (HOA/LOR/On/Off), lock out/tag out operators, locking switches, auxiliary contacts, programmable timers, photocell (dusk-to-dawn sensor), time meters, control transformer, contactors w/ coil controls, thermal overload motor protection, stack tower light for external indications, pole mounting, weatherproof conduit elbows and more.
Unit Type: Golf Course Pump Combination Motor Starter
Dimensions: 30" x 20" x 8" 48" x 48" x 20"
Weight: 85 lbs
Voltage: 230V AC
Horsepower Rating: 2 HP
Max Amps: 6.8A
Disconnect Type (Protection): Circuit Breaker
Controls: Overload Reset Button, Start/Stop Momentary Push Buttons
Selector Switch: Hand/Off/Auto (HOA) - 3 Positions
Padlockable Components: Door, Disconnect
NEMA Size: 1
Mount: Surface/Wall (Heavy Duty Mounting Ears)
Shipping Dimensions: 48" x 48" x 20"
