530W Solar Light Tower -7' Trailer - (2) 265 Watt Panels - Completely Solar No Fuel Needed


Sale price$35,049.99


Specifications / Additional Information
SPG-0.58K-200A-TLR7-120V Trailer Mounted 3-Stage Solar Trailer Quick Summary
Solar Specs Steel Construction
Panes: (2) 265 Watt panels Powder Coated Finish
Method of Deployment: Fixed Mount (4) 1,000lb Outriggers
System Voltage: 24 Volts 65 mph Wind Resistance
Battery Bank: (2) 8D 250aH 12V Batteries A-Frame for mounted (2) 265 Watt Solar Panels
Battery capacity: 250aH Total / 125aH Usable Fully Solar, No Fuel Needed
Cable: 3/16" Galvanized Aircraft Cable
Inverter: 300 Watt - 24V DC to 120V AC
Receptacles: Duplex 5-15P
Trailer Specs
Materials: Steel
Trailer Dimensions: 7`L` x 7`W trailer bed
Hitch: 2" Ball Coupler
Wiring: 7-Pin Flat
Axle: 3,500lb
Suspension: 3,500 Lb 4-Leaf Double Eye Springs
Outriggers: (4) 1,000 Manual Crack Leveling Jacks
Wheels: (2) 15" 5x4.5 Steel Rims
Tires: ST205/75/D15 H188
Weight: +-600 lbs
Shipping: Common Freight
Shipping Dimensions: 8`-L x 8`-W x 12`-H
Shipping Weight: +-600 lbs
Options: Length- Mounting-Fixtures/ Call Us for Special Requirements
3 year warranty replacement on this solar trailer. The customer ships the failed solar trailer to Larson Electronics at their expense. If the failure is a manufacturer defect, we will repair and/or replace the unit.
' Product Overview '

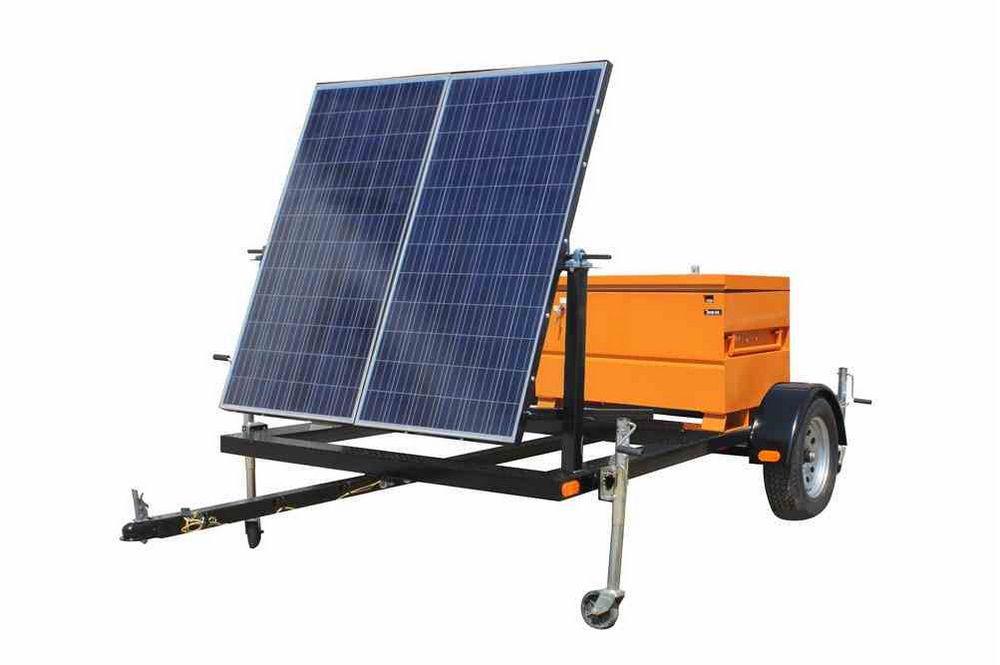

Made in the USA The Larson Electronics SPG-0.58K-200A-TLR7-120V solar powered generator provides operators with a way to power lights, camera, and other electrical equipment in remote locations where standard 120V line voltage is unavailable. This off-grid generator features two 265 watt solar panels and a 250 amp capacity battery bank. The entire assembly is mounted onto a 7` single axle trailer, allowing operators to transport this solar generator from location to location. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO LIGHT MASTS OR LIGHT TOWERS* Solar Powered Generator: This solar powered generator includes two solar panels, solar charging system, (2) 8D 250aH 12V battery bank, 300 watt inverter and duplex 5-15P receptacle mounted on trailer with outriggers. This 0.53KW solar generator system replenishes amp hours of usable battery capacity per day, assuming 5.5 hours of peak charging sunlight. This system delivers 120V AC for lighting and electrical equipment in remote locations where standard AC line voltage is not readily available. Solar Panel Assembly: This unit is comprised of two 265-watt solar panels, generating a total maximum output of 0.53 KW. The panels are mounted to a stationary assembly. The panels are wired to the solar charger control box which manages the charging system. The two solar panels are mounted to a frame angled at 45° to capture the intensity of the sun for optimized light intake. A 300 watt DC to AC inverter and a duplex 5-15P receptacle allows operators to power equipment that required 120V AC. Component Control Center: All the electrical components are encapsulated in a NEMA 3R job box that is bolted to the trailer. Since most of these components are not rated for high heat, our component cooling system circulates air within the job box at 1400 CFM when the ambient temperature exceeds 90 degrees Fahrenheit. The job box that contains the component control system includes locks for security purposes. Trailer Assembly: The entire assembly is mounted to a 7` by 7`, single axle trailer via six 1/2" anchor bolts. The two wheel trailer is equipped with 3,500 lbs axle and leaf springs with 15" trailer tires. A standard 2" ball coupling, two standard safety chains, and 7-pin flat trailer plug allow for easy hookup and towing. The trailer tongue can be removed for long term deployment. A rugged and waterproof job box is included, safely secured to the trailer. Four outriggers mounted to the corners of the trailer allow operators to level the trailer, and provide stabilization during deployment. All trailer lighting complies with DOT/FMVSS regulations.
