Solar Panel Trailer Frame Assembly - Can Hold Up To (6) 74.5"L x 50.5"W Solar Panels - Steel Frame/Stabilizing Jacks
Solar Panel Trailer Frame Assembly - Can Hold Up To (6) 74.5"L x 50.5"W Solar Panels - Steel Frame/Stabilizing Jacks
| SPL-6X-TPMK-TLR-M1 1.5kW Bolt-on Solar Panel Trailer Kit | Ratings/Approvals |
| Unit Type: Solar Panel Trailer Frame Assembly | Rotate and Tilt Control |
| Compatible Panel Dimensions: 74.5"L x 50.5"W | Â |
| Max Number of Panels: 6 | Â |
| Stabilization: Locking Arms w/ Key Holes | Â |
| Control: Rotate, Extend and Collapse | Â |
| Frame Assembly Material: Steel w/ Industrial Grade Coating | Â |
| Battery Box Enclosure: Included w/ N3R Cover | Â |
| Battery Box Capacity: (8) 8D Batteries | Â |
| Battery Box Enclosure Cooling: Natural; Bottom-located Vents | |
| Wiring/Bolts: Customer Provided | |
| Mount: Single-axle Trailer | |
| Trailer Coating: Powder Coated or 2-part Epoxy Steel | |
| Trailer Axle: 3,500 lbs Rating | |
| Leveling: (4) 1,200 lbs Stabilizing Jacks |

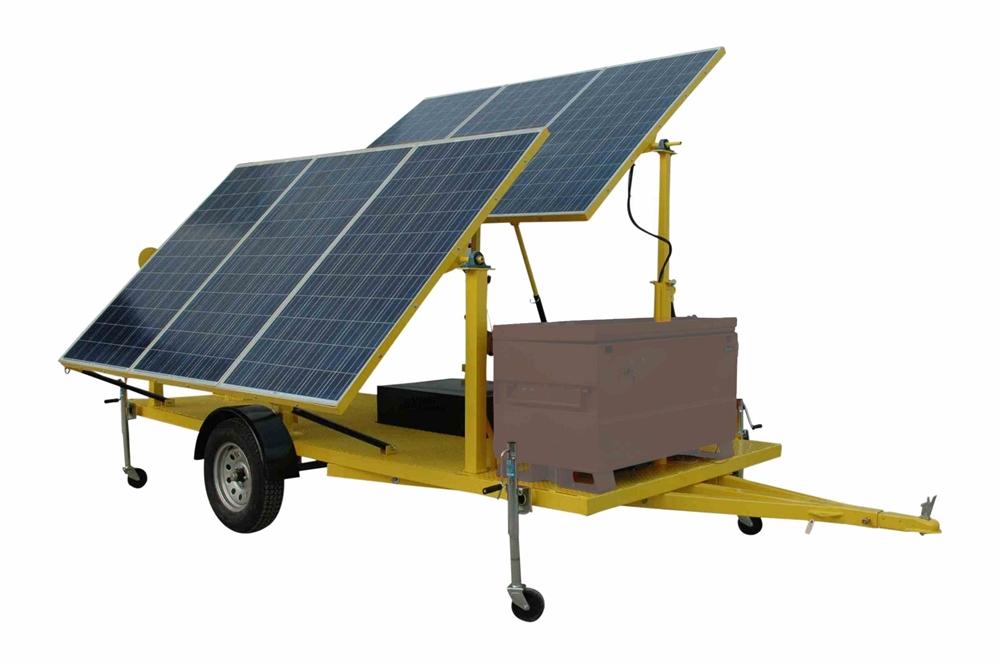

The SPL-6X-TPMK-TLR-M1 from Larson Electronics is a Solar Panel Trailer Frame Assembly that holds up to six solar panels measuring 74.5" long and 50.5" wide and offers portable mobility. Operators may tilt, rotate, extend or collapse installed panels for robust control when optimizing positions during harvesting/charging, storage or transportation. Equipped with a battery box enclosure, the trailer-mounted frame assembly is constructed of steel with an industrial-grade coating for added durability.
**Please note that solar panels ARE NOT INCLUDED with this frame assembly**
This trailer-mounted unit can be rotated until it faces inwards, which protects installed panels during transport. When deployed, the panels are rotated until they face upwards. In order to optimize sun capture, the panels can be set to +/- 15 degrees of the latitude of location on Earth. Houston, Texas, for example, is at a latitude of 30 degrees, so the winter setting is 45 degrees and the summer setting would be 15 degrees. While this does not make a huge difference, every little bit helps. The position of the panels are set via locking stabilization arms with key holes, which increases stabilization of the solar array during deployment in high wind applications. As part of the deployment, operators will set the four stabilizing jacks into position by pulling them out and pinning them into position.
This assembly includes a battery box enclosure, which can hold up to eight, 8D batteries. The enclosure is protected by a top-located NEMA 3R rated cover. This cover serves as a shield and protects the unit from outdoor elements and weather. Natural cooling is provided by vented openings located at the bottom of the battery enclosure.
|
||||||
