Trailer Dimensions: 7.5`L` x 7`W trailer bed- 10.75` total length
Hitch: 2" Ball Coupler
Wiring: 7-Pin Flat
Axle: 3,500lb
Suspension: 3,500 Lb 4-Leaf Double Eye Springs
Outriggers: (4) 1,000 Manual Crack Leveling Jacks
Wheels: (2) 15" 5x4.5 Steel Rims
Tires: ST205/75/D15 H188
Â
Shipping Specs
Weight: +-1000 lbs
Shipping: Common Freight
Toll Free:Â 1-800-369-6671
Shipping Dimensions: 8`-L x 8`-W x 12`-H
Intl:Â 1-214-616-6180
Shipping Weight: +-1000 lbs
Fax:Â 1-903-498-3364
Options: Length- Mounting-Fixtures/ Call Us for Special Requirements
E-mail:Â
'
Product Overview
'

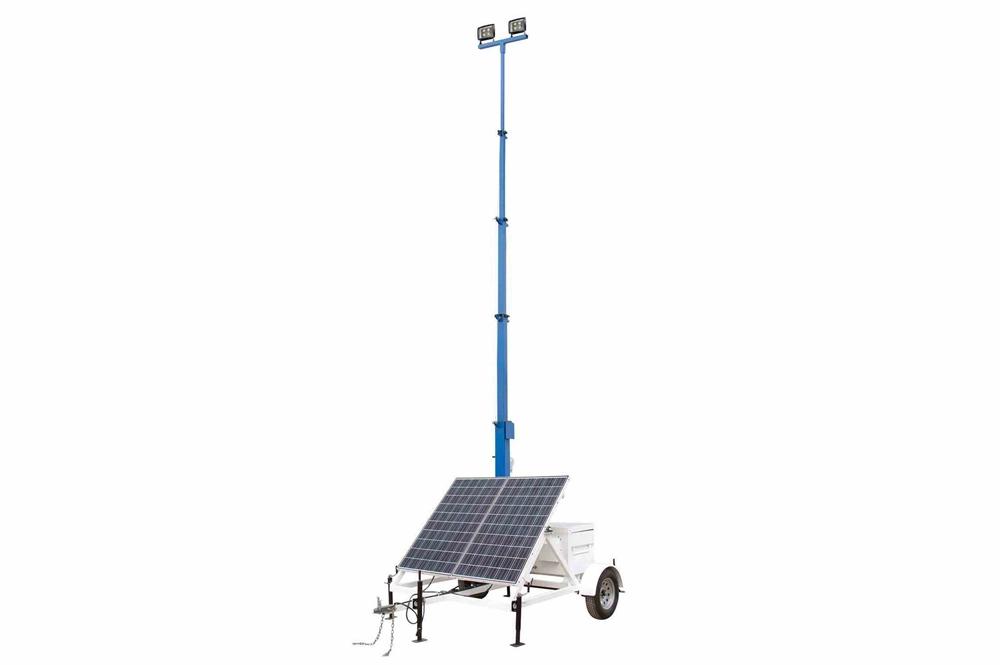

The Larson Electronics SPLT-0.6K-LM30-2XWP60E-1XPTZ-WPP-ISGG-TLR7-M3 solar powered LED light tower provides a safe and effective way for operators to quickly deploy 120 watts of intense LED illumination and a PTZ camera to elevations up to thirty feet. This solar light plant features a telescoping light tower that folds over for easy transportation, a rotating boom that allows for 360° of rotation, a backup generator with receptacles to help charge the batteries when sunlight is unavailable and a removable mast head for storing the two LED light fixtures when not in use. This unit contains two, 300-watt solar panels and a 500-amp capacity battery bank. The entire assembly is mounted onto a 7` single axle trailer, allowing operators to transport this solar light tower from location to location.
*PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO LIGHT MASTS OR LIGHT TOWERS*
Solar Powered Light Tower: This solar light tower includes two 300-watt solar panels, solar charging system, battery bank, battery charger, a backup generator with receptacles, two LED lights with dusk/dawn sensor, outdoor security camera, network connectivity, 48-port network switch, four CAT5E network cables and manual crank up mast mounted on trailer with outriggers. This 0.6KW solar generator system replenishes 350 amp hours of usable battery capacity per day, assuming 5.5 hours of peak charging sunlight. This system delivers 120 volts for lighting mounted atop the 30` telescoping light mast.
Light Mast: This telescoping five stage steel light mast from Larson Electronics is designed to allow operators to quickly and safely deploy the two LED light heads and a PTZ camera in locations where this equipment must be elevated to heights up to 30` for effective coverage. This light boom can be extended to 30` above the trailer floor for maximum area coverage, and collapsed to 13.5` for applications where a footprint smaller is required. The tower is constructed of square steel tubing with a base section 6.6` in length and 6" by 6" by 3/16" thick, lower section 6.78` in length and 5" by 5" by 3/16" thick, middle section 6.93` in length and 4" by 4" by 1/8" thick, upper section 7.08` in length and 3" by 3" by 1/8" thick, and top section 7.58` in length and 2" by 2" by 1/8" thick. Each section has a 1`+ overlap. The mast is extended to its full height using an included 1,000lb rated hand winch with 3/16" galvanized steel cable.
A 44" wide and 2" by 2" by 1/4" thick mounting plate is attached to the upper section of the mast which provides a strong and stable platform for the equipped LED light fixtures. When elevated to its full upright position, the mast can be rotated a full 360°. By loosening the T-Handle, operators can rotate the mast with easy in either direction. The mast can be positioned in one of four different positions, and locked back in place by re-tightening the T-handle. The mast itself spins freely with easy, and can typically be rotated with a single hand. The LM series of towers are powder coated with glossy blue finish for corrosion resistances and aesthetics.
The LM family of telescoping towers feature a proprietary mast guidance system, which provide increased stability during high winds. Four 1,000 lbs hand crank leveling jacks are used for leveling. The jacks can be leveled by hand crank or attachment provided for power drills. These outriggers can be extended 2` out from the side of the trailer for added stability. When lowered to 13.5`, the mast can withstand winds up to 125 mph. Custom builds can be provided for higher wind speed resistance when fully raised.
Click Photo to Enlarge
LED Light Fixtures: This solar light plant is equipped with two Larson Electronics LEDWP-600E high output LED light fixtures. The LEDWP-600E consists of six LEDs paired with high purity specular optics to produce a wide light distribution overpowering that of a 500 watt quartz flood lights. This light is constructed of three angled boards that helps provide a wider spread. Instead of the light only shining forward, the center board is concentrated to go straight out while the boards on the side are 45° offset. This LED unit is designed to withstand demanding conditions and is waterproof, vapor proof, and built to resist the damaging effects of an outdoor environment.
The LED lights are housed within a waterproof aluminum housing that is powder coated for added durability and resistance to corrosion. The housing incorporates integral cooling fins for efficient heat dissipation and increased LED longevity. The LED lamp assembly is protected by a shatterproof polycarbonate lens which is secured to the housing with a waterproof seal. A 1/2" waterproof connector provides a secure and sealed power connection point and rounds out this unit's weather resistant construction.
LED Technology: Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current applied and emitting light. With LED lights, there is no warm up time or cool down time before re-striking and provide instant illumination when powered on, adding to the reliability of LED technology. By nature, LED light sources run significantly cooler than traditional lamps, reducing the chance of accidental burns and increased temperatures due to heat emissions. This solid state design of light emitting diodes provides a more reliable, stable, durable, and energy efficient light source over traditional lighting.
Lamp Control: Each lamp is grouped into banks of two, allowing operators to power one bank or both lamps at a single time to fit the required illumination requirements. An equipped dusk-to-dawn day/night sensor allows for anomalous operation of the light configuration set within the the control center.
Outdoor Camera: A single PTZ security camera provides operators with crisp 1080p full-HD high resolution images. The 4.7-94mm varifocal lens automatically adjusts focus, providing operators with precise 20x optical zoom levels. Integrated long-range IR LEDs, with a wavelength measurement of 850 nm, enable the day/night camera to see distances up to 492` under nighttime conditions. This unit offloads videos in MP4 format and features H.264 and MJPEG video compression. The IP security camera is designed to perform in outdoor locations and rainy conditions. This IP66-rated unit resists the negative effects of non-corrosive liquids. De-fogging features enable the unit to operate in rainy and foggy conditions. This device is capable of operating in temperatures between -22°F and 149°F.
Connectivity: The SPLT-0.6K-LM30-2XWP60E-1XPTZ-WPP-ISGG-TLR7-M3 is equipped with several connectivity features. Operators may connect to a customer-provided CDMA/GSM via a mesh network facilitated by the Ubiquiti AF11-Complete-HB modular radio system. The included Aruba JZ173A access point supports 5 GHz 802.11ac 4x4 MU-MIMO (1,733 Mbps max rate) and 2.4 GHz 802.11n 2x2 MIMO (300 Mbps max rate) radios. A Cisco Model C9300-48UXM-A 48-port network switch inside the NEMA control box at the base of the mast is available for device connectivity. Licenses for the mesh network, access point and network switch are included.
Four CAT5E network cables are accessible, with one of the cables running up the mast and connecting to the PTZ camera. The other three cables, which are spooled inside the junction box, are designed for future development or system expansion.
Solar Panel Assembly: This unit is comprised of two, 300-watt solar panels, generating a total maximum output of 0.6 KW. The panels are mounted to a stationary assembly. The panels are wired to the solar charger control box which manages the charging system. The two solar panels are mounted to a frame angled at 45° to capture the intensity of the sun for optimized light intake.
Component Control Center: All the electrical components are encapsulated in a NEMA 3R job box that is bolted to the trailer. Since most of these components are not rated for high heat, our component cooling system circulates air within the job box at 1400 CFM when the ambient temperature exceeds 90 degrees Fahrenheit. The job box that contains the component control system includes locks for security purposes.
Backup Generator: This light mast features our GPG-9KW-1P-120.240 backup generator. This generator is powered by a 4-stroke OHV single cylinder engine with a forced air cooling system that runs on gas, and is started by pulling the recoil starter, or with the push of a button using the key less electric start. Available receptacles include: (3) 5-20R AC for 115V equipment and (1) L6-20R for 12V DC equipment. A 120V AC battery charger is accessible for plugging into grid power, when it is available. This genset will automatically kick on whenever the voltage of the battery system falls below 12V. This is useful for times when sunlight is insufficient.
Trailer Assembly: The entire assembly is mounted to a 7.5` by 7`, single axle trailer via six 1/2" anchor bolts. The two wheel trailer is equipped with 3,500 lbs axle and leaf springs with 15" trailer tires. A standard 2" ball coupling, two standard safety chains, and 7-pin flat trailer plug allow for easy hookup and towing. The trailer tongue can be removed for long term deployment. A rugged and waterproof job box is included, safely secured to the trailer. Four outriggers mounted to the corners of the trailer allow operators to level the trailer, and provide stabilization during deployment. All trailer lighting complies with DOT/FMVSS regulations.
