20' Solar Security Tower - 7.5' Trailer - (1) 300W Panel - (1) PTZ Camera, (2) Bullet Cams, 4TB NVR - 4G Router/Wi-Fi


Sale price$85,369.99


Specifications / Additional Information
SPLT-.30K-LM20-TLR7-ACC-1XPTZ-2X6MP.OZ-1TB-W4G-M2 Trailer Mounted Solar Generator Security Mast Quick Summary
Mast Specs 12' to 20' Mast
Tower Length: 12' to 20' Steel Construction
Stages: 3 Powder Coated Finish
Mast Head Length: 44" Removable Mast Head
Materials: Steel (4) 1,000 lb Outriggers
Finish: Powder Coated - Gloss Blue 65 MPH Constant Wind Speed Rating
Operation: (1) 2,500 lb Manual Crank Winch 85 MPH Gust Rating
Mast Cable: 3/16" Galvanized Aircraft Cable Electric Operation
Cable Sheath: Sealtight Coiled Tubing A-Frame for Mounted (1) 300 Watt Solar Panel
Fully Solar, No Fuel Needed
Solar Specs Low Noise Operation
Panels: (1) 300 Watt Panel Day/Night Monitoring
Method of Deployment: Fixed Mount 328' IR Distance
System Voltage: 12 Volts Full-HD, 23x Optical Zoom
Solar Charge Controller: LCD Display - Charge/Real-time Status Motion Detection
Battery Bank: Lithium Ion Battery Bank FCC NVR
Battery Capacity: 160 aH Embedded Linux Operating System
Battery Charger: 120V 15A CAT5E Networking Cable
Cord: 25' 16/3 SOOW Cord w/ Cord Cap Wi-Fi and 4G/LTE Router
Cord Cap: 5-15P Waterproof Shore Power Extended Coverage via External Antenna
  Customer-provided 4G Service
PTZ Camera Specs NEMA 3R Job Box w/ Padlock
Unit Type: (1) Security Camera Easy Setup for Rapid Deployment
Camera Dimensions: 14.38"-H x 7.12"-D Loud Speaker PA System for Voice Warnings
Camera Weight: 9 lb SMS Notifications
Total Watts: 68W (Max)
Voltage: 24 V AC (PoE - 802.3at)
Image Sensor:  CMOS
Connectors: 1.0Vp-p, 75 Ohm, BNC
Effective Pixels: 2.1 MP, 1920 x 1080 Resolution
Min. Illumination: 0.02 Lux @ F1.6 AGC On, 0 Lux w/ IR
Electronic Shutter: 1 ~ 1/10,000s
Lens: 4.7-94mm Varifocal Lens
Angle of View: 58.3° (Wide) ~ 3.2° (Tele)
Pan: Endless, 360°
Tilt Control: 190° Minimum
Optical Zoom: 23x
Day/Night: ICR
IR Viewable Distance: 328` (850 nm)
Video Framerate: 1080p @ 30fps
Video Offload: MP4
Video Output: (1) BNC
Language: English
Ambient Temperature Range: -22°F to 149°F
Housing Materials: Aluminum
Lens Material: Polycarbonate
Mounting: Tower
Stationary IP Security Camera Specs
Unit Type: Security Camera
Dimensions: 4.09" H x 3.94" H x 12.28" D
Camera Weight: 4.41 lb
Total Watts: 12W (Heater Off), 18W (Heater On)
Voltage: 12 V DC
PoE: 802.3af/802.3at
Image Sensor:  CMOS
Connectors: Audio In/Out, LAN (RJ-45), CVBS
Effective Pixels: 3072(H) * 2048(V)
Min. Illumination: 0.014 Lux (Color), 0 Lux w/ IR
Shutter Speed: 1 ~ 1/100,000
Lens: 2.8-12mm Motorized Auto Focus Lens
Angle of View: 94.5° (Wide) - 30.5° (Tele)
Day/Night: ICR
Video Framerate: 24 fps @ 3072 x 2048
Video Output: 1 Vp-p Composite Output (BNC)
Alarm Output: 1x Out
Language: English
Ambient Temperature Range: -40°F to 140°F
Housing Materials: Aluminum
Lens Material: Polycarbonate
Mounting: Wall or Surface
Wiring Hub: (2) Conduit Ports
Strobe Light Specs
Lamp Type: LED
Dimensions: 4.5"-High, 6.5" Diameter
Lamp Weight: 3 lbs
Wattage: 14.4
Lumens: 1,440
Candela: 1,200
Luminous Efficiency: 100 Lumens per Watt
Lighting Configuration: Strobing Flash
Voltage: 12 or 24 volts DC
Mounting: Permanent Mount, 1" NPT Pipe Mount
Wiring:  Direct Wiring to Power Source
Ambient Temp: -45°C to +55°C
NVR Specs
Device Type: Network Video Recorder
Storage Capacity: 1 TB SATA Hard Drive
Channels: 8
Camera Resolution Support: Up to 8MP
Installation Type: Plug and Play
Incoming Bit Rate: 40Mbps
Outgoing Bit Rate: 80Mbps
FPS: 60fps Per Channel
Compression Format: H.265, H.264, H.264 OVC
Recording Modes: Continuous, Schedule, Event, Motion Detection, VCA
Export Format: MP4
Video Outputs: (1) RCA, (1) VGA, (1) HDMI, (1) USB 2.0 (Front), (1) USB 3.0 (Rear)
Two-way Audio Input: 1-ch, RCA
Power Over Ethernet: = 120W, Supported Standards- 802.3af and 802.3at
Alarm Input: 4x (Rear Panel), Camera Dependent
Alarm Output: 1x (Rear Panel), Camera Dependent
Monitor: 14" HD Screen w/ Anti-glare Monitor
Mouse: Included
Power Requirements: 100 ~ 240 V AC
Housing Material: Aluminum
Operating Temp: 14°F ~ 131°F
Networking Cable: CAT5E
Remote Connectivity: Yes w/ Customer-provided 4G Service
Router/Antenna Specs
Router Type: 4G/LTE Rugged Router
Modem: 600 Mbps Minimum
Built-in Security: Yes
Monitoring: Uptime w/ Real-time Alerts
4G Plan/Service: Customer Provided
External Antenna Frequency: 690~960 MHz, 1710~2170 MHz, 2500~2700 MHz
External Antenna Gain: 5dB
External Antenna Height: 12'
Trailer Specs
Materials: Steel
Trailer Dimensions: 7.5'L x 7'W Trailer Bed- 10.75' Total Length
Hitch: 2" Ball Coupler
Wiring: 7-Pin Flat
Axle: 3,500 lb
Suspension: 3,500 lb 4-Leaf Double Eye Springs
Outriggers: (4) 1,000 Manual Crack Leveling Jacks
Lights: DOT Listed - All Running Lights
Wheels: (2) 15" 5x4.5 Steel Rims
Tires: ST205/75/D15 H188 Special Orders - Requirements
Weight: +-600 lb
Shipping: Common Freight Toll Free: 1-800-369-6671
Shipping Dimensions: 8'-L x 8'-W x 12'-H Intl: 1-214-616-6180
Shipping Weight: +-600 lb
Options: Length - Mounting - Fixtures / Call Us for Special Requirements
' Product Overview '

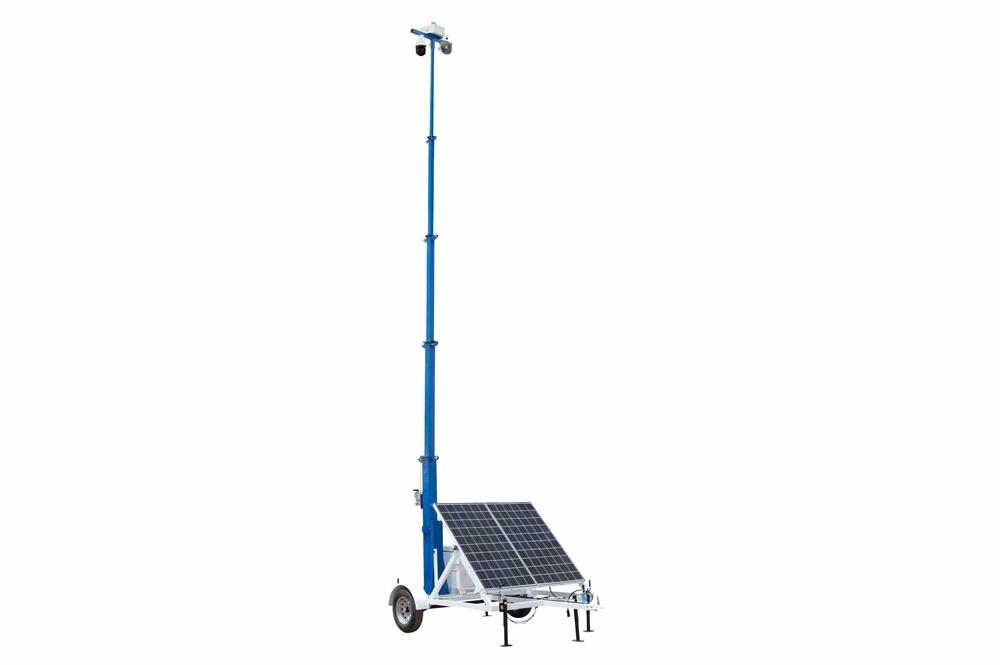

The SPLT-.30K-LM20-TLR7-ACC-1XPTZ-2X6MP.OZ-1TB-W4G-M2 from Larson Electronics is a Solar Powered Security Tower that provides a safe and effective way for operators to quickly deploy equipment to elevations up to 20 feet. This solar security plant features a telescoping tower that folds over for easy transportation, a rotating boom that allows for 360° rotation, and a removable mast head for storage when not in use. The low-noise unit features one PTZ outdoor camera, two stationary IP security cameras, one blue strobe light, one loud speaker PA system, Wi-Fi connectivity, and router/wireless 4G hotspot access (requires customer-provided 4G plan), one 300-watt solar panel, and a 160aH capacity battery bank with a 120V 15-amp battery charger equipped with 25' of 16/3 SOOW cord terminated in a 5-15P waterproof shore power cord cap. A 4TB NVR can be found at the base of the mast. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO LIGHT MASTS OR LIGHT TOWERS* This trailer mounted security mast with solar generator has a 12" x 12" x 6" junction box and a trio of outdoor cameras mounted at the top of the mast. The junction box supports the security cameras for a 360° field of view and can be used with other electrical devices for each operator's specific needs, such as small sensors and monitoring devices. The junction box is mounted to the mast head via a half-moon shaped mounting plate. External sealtite coiled tubing runs around the mast to allow operators to run Ethernet cable to the junction box at the top of the mast. The tubing connects the junction box and base solar component box together. The entire assembly is mounted onto a 7.5' single axle trailer with DOT-listed running lights, allowing operators to transport this portable solar tower from location to location. Operators may access a 4TB NVR for network configurations. The system, which supports wireless customer-provided 4G hotspot access, utilizes CAT5E cable for networking. PTZ Outdoor Camera: One security camera provides operators with crisp, 1080p full-HD high resolution images. A 4.7-94mm varifocal lens automatically adjusts focus, providing operators with precise 23x optical zoom levels. Integrated long-range IR LEDs, with a wavelength measurement of 850 nm, enable this day/night camera to view objects at 328' minimum under nighttime conditions. The PTZ device features endless 360° panning and 190° (minimum) tilt control. The unit offloads videos in MP4 format and features H.264 and MJPEG video compression. The cutting-edge security devices are designed to perform in outdoor locations and rainy conditions. The IP66-rated units resist the negative effects of non-corrosive liquids. De-fogging features enable the units to operate in rainy and foggy conditions. The devices are capable of operating in temperatures between -22°F and 149°F. Stationary IP Security Cameras: Two stationary IP security cameras provide operators with crisp, high resolution images in rugged, outdoor environments. These units operate on 12 V DC, with optional PoE (802.3af, 802.3at). A 2.8-12mm motorized lens automatically adjusts focus for enhanced clarity during operation. Integrated long-range IR LEDs enable the camera to see distances up to 165` in dark, nighttime conditions. Internal microSD card storage reaches up to 128GB (card not provided). Operators can setup and integrate alarms to serve as notifications with the unit. These 6MP cameras measure a compact 4.09" x 3.94" x 12.28". The stationary IP security cameras is built to perform under extreme temperature and rainy conditions. This IP67 rated waterproof unit resists the negative effects of non-corrosive liquids. To withstand cold environments, a defogging system and built-in heater regulates the temperature of the internal components of the device. This IP camera is capable of operating in temperatures between -40°F - 140°F (heater on). Strobe Light: The compact, high powered LED beacon contains an LED lamp assembly that produces 360° of brilliant light without the dark spots or unevenness of traditional incandescent beacon lights. This beacon is equipped with auxiliary LEDs on top, helping to make this a Class 1 rated beacon and capable of producing a brilliant flashing pattern that is visible at extended distances. Blue in color, this strobing beacon is mounted on top of the tower for maximum coverage and visibility. The LED beacon has 30 flash patterns including four simulated rotating patterns. This unit also offers alternate or simultaneous flash patterns with up to eight connected LED beacons. The waterproof beacon has a black powder coated die cast base that contains a fully potted circuit board. A clear polycarbonate lens protects the LED assembly and the housing is waterproof, shock resistant, and built for reliable and durable operation. NVR: The solar tower contains an 8-channel NVR that can be used with the network cameras. Setup only takes minutes via plug-and-play, which automatically detects, displays and configures system components. With multiple recording modes (Schedule, Continuous, Motion Detection and Event) and 1TB of storage, users could capture hours of footage with ease. The remote configurable network recorder features a bit rate of 40Mbps incoming and 80Mbps outgoing at up to 60fps per channel. To maximize storage, the unit supports H.265, H.264, and H.264 OVC video compression. The network recorder is compatible with two-way audio streaming (camera dependent) and includes 9 ethernet ports (RJ-45 interface). During recording, the unit handles the following data: activity log, email notification, event log, event notification, video analytics and event search. This device offloads videos in MP4 format. Cameras hooked up to the NVR may use power directly via PoE (802.3af / 802.3at) during operation. The NVR runs on 100 - 240V AC of power and is suitable for use in temperatures between 14°F - 131°F. This unit is supported by a 14" HD screen with an anti-glare monitor and mouse. Remote monitoring is possible using a customer-provided 4G service. NVR Inputs: (1) RCA, 4 Sensor Inputs NVR Outputs: (1) RCA, (1) VGA, (1) HDMI, (1) USB 2.0 (front), (1) USB 3.0 (rear) Router/Wireless 4G Hotspot: Connectivity features are facilitated by a 4G/LTE rugged router. Equipped with built-in security, the unit offers 600 Mbps internet speeds (minimum). The internal router can be utilized to monitor uptime and for real-time alerts. Customers must provide their own 4G service/plan for the router, as the system does not come with an internet plan. An external antenna is available for signal boosting and extending hotspot coverage. The antenna measures 12' and offers compatibility with the following frequencies: 690~960 MHz, 1710~2170 MHz and 2500~2700 MHz.
Click Photo to Enlarge
Security Features: The SPLT-.30K-LM20-TLR7-ACC-1XPTZ-2X6MP.OZ-1TB-W4G-M2 features some extra security features not commonly found on towers of this type. This security tower is equipped with a loud speaker PA system that allows operators to deter trespassers and other unwanted intruders with their voice or voice recordings. This can be performed in real time via a remotely connected computer or via prerecorded messages that can be programmed to sound when motion is detected. Similarly, the top mounted strobe light will flash when motion is detected in the coverage area of the tower. Another extra feature offered by the SPLT-.30K-LM20-TLR7-ACC-1XPTZ-2X6MP.OZ-1TB-W4G-M2 is the ability to send SMS notifications when motion is detected by the tower. This allows operators to be notified immediately of possible security threats or alerts as well as continue to receive security notifications even if they are not actively monitoring the camera feeds. Solar Powered Security Tower: This continuous-operation solar security tower includes one 300 watt solar panel, a solar charging system, a 160 aH lithium ion battery bank, and manual crank mast mounted on trailer with outriggers. This 0.30 KW solar generator system replenishes amp hours of usable battery capacity per day, assuming 5.5 hours of peak charging sunlight. This system delivers 12 volts for equipment mounted atop the 20' telescoping mast. Operators can use an included 120V battery charger to charge the batteries when sunlight is unavailable, using 25' of 16/3 SOOW cord with a 5-15P waterproof shore power cord cap. Mast: This telescoping three stage steel mast from Larson Electronics is designed to allow operators to quickly and safely deploy a variety of equipment in locations where it must be elevated to heights up to 20' for effective coverage. This mast can be extended to 20' above the trailer floor for maximum area coverage, and collapsed to 12' for applications where a smaller footprint is required. The tower is constructed of square steel tubing with a lower section 12 feet in length and 4 inches in diameter, a middle section 8 feet in length and 3.5 inches in diameter, and an upper section 6 feet and 3 inches in diameter. Each section has 2` of overlap. The mast is extended to its full height using a manual cranks winch with 3/16" galvanized steel cable. Junction boxes are mounted at the top of the first stage and at the very top of the mast for equipment setup, connection, and deployment. A 44" wide and 2" by 2" by 1/4" thick mounting plate is attached to the upper section of the mast which provides a strong and stable platform for the equipped cameras. A half-moon shaped mounting plate on the top of the mast head provides a secure mounting platform for the NEMA 3R 12" x 12" x 6" junction box, where operators can mount cameras, indicator lights, and route electrical cabling. When elevated to its full upright position, the mast can be rotated a full 360°. By loosening the T-Handle, operators can rotate the mast with easy in either direction. The mast can be positioned in one of four different positions, and locked back in place by re-tightening the T-handle. The mast itself spins freely with easy, and can typically be rotated with a single hand. The LM series of towers are powder coated with glossy blue finish for corrosion resistances and aesthetics. The LM family of telescoping towers feature a proprietary mast guidance system, which provide increased stability during high winds. Four 1,000 lb hand crank leveling jacks are used for leveling. The jacks can be leveled by hand crank or attachment provided for power drills. These outriggers can be extended 2' out from the side of the trailer for added stability. The unit features the following wind ratings: 65 mph constant wind and 85 mph gusts. Custom builds can be provided for higher wind speed resistance when fully raised.
Click Photo to Enlarge
Solar Panel Assembly: This unit is comprised of one 300-watt solar panel, generating a total maximum output of 0.30 KW. The panel is mounted to a stationary assembly. The panel is wired to the solar charger control box which manages the charging system. The solar panel is mounted to a frame angled at 45° to capture the intensity of the sun for optimized light intake. An included solar charge controller features an LCD display, which provides information surrounding charge status and real-time (current) status. Component Control Center: All the electrical components are encapsulated in a NEMA 3R job box that is bolted to the trailer. Since most of these components are not rated for high heat, our component cooling system circulates air within the job box at 1400 CFM when the ambient temperature exceeds 90 degrees Fahrenheit. The job box that contains the component control system includes locks for security purposes. Trailer Assembly: The entire assembly is mounted to a 7.5' by 7', single axle trailer via six 1/2" anchor bolts. The two wheel trailer is equipped with a 3,500 lb axle and leaf springs with 15" trailer tires. A standard 2" ball coupling, two standard safety chains, and 7-pin flat trailer plug allow for easy hookup and towing. The trailer tongue can be removed for long term deployment. A rugged and waterproof job box is included, safely secured to the trailer. Four outriggers mounted to the corners of the trailer allow operators to level the trailer, and provide stabilization during deployment. The trailer is equipped with complete DOT-listed running lights.
