|SPLT-.58K-80A LM30-4XWP600E-TLR10 Trailer Mounted 3-Stage Light Tower
|Light Mast Specs
|13.5` to 30` Light Mast
|Tower Length: 13.5` to 30`
|Mast Head Length: 36 " x 2"OD
|Power Coated Mast Finish
|Removable Mast Head
|Finish: Powder Coated - Alternating Orange/White
|(4) 1,000lb Retractable Outriggers
|Operation: (2) 1,000lbs Hand Winches, Electric Optional
|125 mph Wind Resistance
|Cable: 3/16" Galvanized Aircraft Cable
|Manual or Optional Electric Operation
|A-Frame w/ (2) 265 Watt Solar Panels
|Fully Solar, No Fuel Needed
|Panes: (2) 265 Watt panels
|Method of Deployment:Â Fixed Mount
|Panel protection:Â Fused combiner box
|System Protection: Battery over/under and ground fault
|System Voltage:Â 12 Volts
|Battery Bank: 1 12V 200aH 8D Battery
|Battery capacity:Â 200ah total and 100ah usable
|Trailer Dimensions: 10-L` x 6`-W trailer bed
|Hitch: 2" Ball Coupler
|Wiring: 7-Pin Flat
|Suspension: 5,400 Lb 4-Leaf Double Eye Springs
|Outriggers: (4) 1,000 Manual Crack Leveling Jacks - Retractable
|Wheels: (2) 15" 5x4.5 Steel Rims
|Tires: ST205/75/D15 H188
|Finish: Painted Orange
|Weight: +-1200 lbs
|Shipping: Common Freight
|Toll Free:Â 1-800-369-6671
|Shipping Dimensions: 16.5`-L x 4`-W x 5`-H
|Shipping Weight: +-1700 lbs
|Options: Length- Mounting-Fixtures/ Call Us for Special Requirements

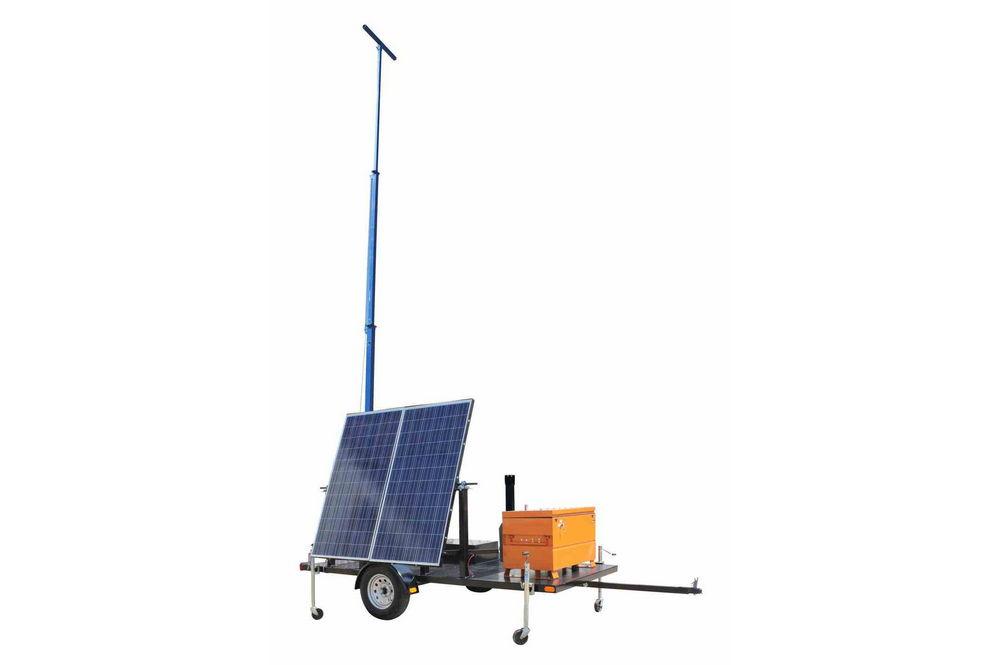

|Made in the USA The Larson Electronics SPLT-.58K-80A-LM30-TLR10-NAF-OFP solar light tower provides a safe and effective way for operators to quickly deploy lights, security cameras and other equipment to elevations up to thirty feet. This solar light plant features a telescoping light tower that folds over for easy transportation, features a rotating boom that allows for 360Â° of rotation, and a removable mast head for storing the four LED light fixtures when not in use. This unit features two 265 watt solar panels and a 200 amp capacity battery bank. The entire assembly is mounted onto a 10` single axle trailer, allowing operators to transport this solar light tower from location to location. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO LIGHT MASTS OR LIGHT TOWERS* Solar Powered Light Tower: This solar light tower includes two solar panels, solar charging system, battery bank and manual crank up mast mounted on trailer with outriggers. This 0.58KW solar generator system replenishes amp hours of usable battery capacity per day, assuming 5.5 hours of peak charging sunlight. This system delivers 12 volts for equipment mounted atop the 30` telescoping light mast. Light Mast: This telescoping five stage steel light mast from Larson Electronicsâ€™ is designed to allow operators to quickly and safely deploy mounted lights or equipment in locations where this equipment must be elevated to heights up to 30` for effective coverage. This light boom can be extended to 30` above the trailer floor for maximum area coverage, and collapsed to 13.5` for applications where a footprint smaller is required. The tower is constructed of square steel tubing with a base section 6.6`Â in length and 6" by 6" by 3/16" thick, lower section 6.78`Â in length and 5" by 5" by 3/16" thick, middle sectionÂ 6.93`Â in length and 4" by 4" by 1/8" thick, upper section 7.08` in length and 3"Â by 3" by 1/8" thick, and top section 7.58` in length and 2" by 2" by 1/8" thick. Each section has aÂ 1`+Â overlap. The mast is elevated using an included 1,000lb rated hand winch with 3/16" galvanized steel cable and extended to its full height using a second 1,000 lbs winch. A 36" wide and 2" OD 1/4" thick mounting plate is attached to the upper section of the mast which provides a strong and stable platform for the equipped LED light fixtures. When elevated to its full upright position, the mast can be rotated a full 360Â°. By loosening the T-Handle, operators can rotate the mast with easy in either direction. The mast can be positioned in one of four different positions, and locked back in place by re-tightening the T-handle. The mast itself spins freely with easy, and can typically be rotated with a single hand. The LM series ofÂ towers are coated with alternating orange and white finish for corrosion resistances and aesthetics.Â The mast is powder coated orange and white, alternating, with the base stage orange, middle stage white, and top stage and mast head orange. The LM family of telescoping towers feature a proprietary mast guidance system, which provide increased stability during high winds. Four 1,000 lbs hand crank leveling jacks are used for leveling. The jacks can be leveled by hand crank or attachment provided for power drills. These outriggers can be extended 2` out from the side of the trailer for added stability. When lowered to 13.5`, the mast can withstand winds up to 125 mph. Custom builds can be provided for higher wind speed resistance when fully raised.
Solar Panel Assembly: This unit is comprised of two 265-watt solar panels, generating a total maximum output of 0.53 KW. The panels are mounted to a stationary assembly. The panels are wired to the solar charger control box which manages the charging system.
Solar Charge Controller: In this 12 volt system solar control system, each panel is terminated with a fused combiner box with a single lever action cut-off switch. With the switch set to the â€˜onâ€™ position, the combiner box passes power to the 80-amp capacity Outback Extreme charge controller. This solar charge controller system uses the Outback Extreme series since it standard temperature threshold is more than 160 degrees Fahrenheit, due to its integrated heat sink and fan assembly. Oddly enough, most charge controllers arenâ€™t rated past 104 degrees Fahrenheit despite the fact the will always be close to direct sunlight. In the summer time in Texas, our fabrication shop is normally warmer than that, so this solar light tower uses a charge controller that would support the southern heat. We improve on that capability by shading the charge controller and adding additional air flow from the exhaust of a 1400 CFM component cooling system.
Component Control Center: In order to ensure that the 50% threshold on the batteries is controlled, this solar trailer includes a system of min/max voltage sensors and relays that monitor the voltage produced by the batteries and will automatically shut off power distribution when the battery capacity falls below 50%. This protects the batteries from failure. We also include ground fault protection and an Outback Mate 3 monitoring system to track and log all activities related to the charger controller and battery health. In the event there is an issue with the solar trailer, the SD card can be removed from the Mate 3 and sent to Larson Electronics for analysis.
All the electrical components, including the combiner panel, charge controller, over/under battery monitoring and ground fault isolation are encapsulated in a NEMA 3R job box that is bolted to the trailer. Since most of these components are not rated for high heat, our component cooling system circulates air within the job box at 1400 CFM when the ambient temperature exceeds 90Â° Fahrenheit. The component control center also includes a terminal block so that customers can mount additional electronic gear without interfering with the charging systems. The job box that contains the component control system includes locks for security purposes.
