|SPLT-.53K-JB-NB-TLR Trailer Mounted Solar Generator||Quick Summary|
|Solar Specs||Steel Construction|
|Panels: (2) 265 Watt panels||(4) 1,000 lb Outriggers|
|Method of Deployment: Fixed Mount||A-Frame for mounted (2) 265 Watt Solar Panels|
|System Voltage: 12 Volts||Fully Solar, No Fuel Needed|
|Trailer Dimensions: 7.5`L` x 7`W trailer bed- 10.75 total length|
|Hitch: 2" Ball Coupler|
|Wiring: 7-Pin Flat|
|Suspension: 3,500 Lb 4-Leaf Double Eye Springs|
|Outriggers: (4) 1,000 Manual Crack Leveling Jacks|
|Wheels: (2) 15" 5x4.5 Steel Rims|
|Tires: ST205/75/D15 H188|
|Weight: +-600 lbs|
|Shipping: Common Freight||Toll Free:Â 1-800-369-6671|
|Shipping Dimensions: 8`-L x 8`-W x 12`-H||Intl:Â 1-214-616-6180|
|Shipping Weight: +-600 lbs|
|Options: Length- Mounting-Fixtures/ Call Us for Special Requirements|

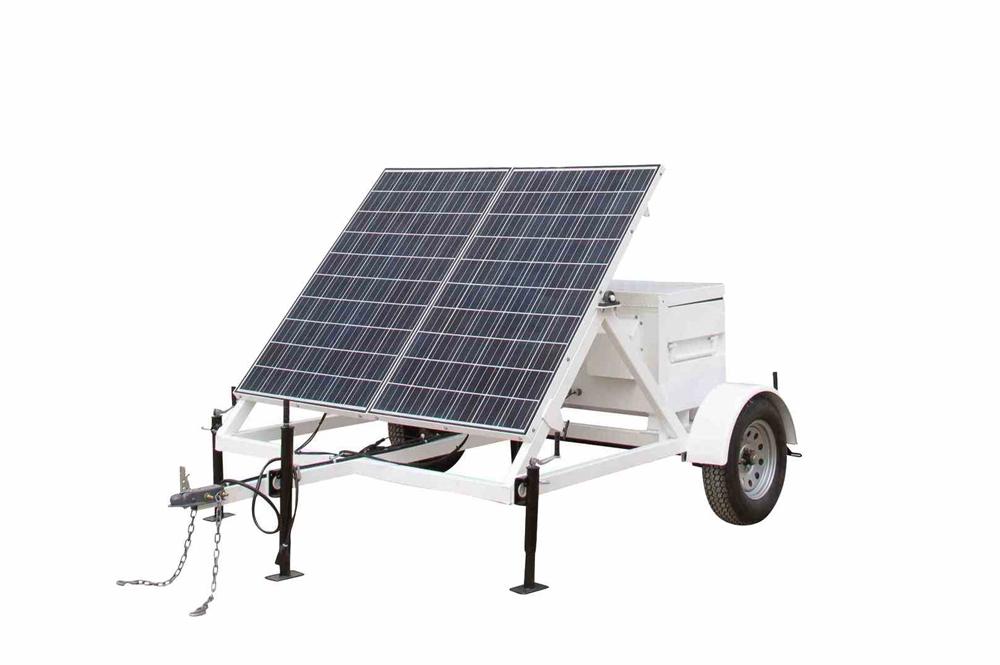

|Made in the USA The Larson Electronics SPLT-.53K-JB-NB-TLR Portable Solar Trailer provides a safe and effective way for operators to power devices and equipment in remote sites. This unit features two 265-watt solar panels, solar charging equipment and a NEMA 3R job box. All equipment is mounted to a 7.5' trailer with outriggers. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO LIGHT MASTS OR LIGHT TOWERS* This trailer mounted solar generator consists of two 265-watt solar panels, generating a total maximum output of 0.53 KW. The panels are mounted to a stationary assembly. The panels are wired to the solar charger control box which manages the charging system. The two solar panels are mounted to a frame angled at 45Â° to capture the intensity of the sun for optimized light intake. Component Control Center: All the electrical components are encapsulated in a NEMA 3R job box that is bolted to the trailer. Since most of these components are not rated for high heat, our component cooling system circulates air within the job box at 1400 CFM when the ambient temperature exceeds 90 degrees Fahrenheit. The job box that contains the component control system includes locks for security purposes. Trailer Assembly: The two wheel trailer is equipped with 3,500 lbs axle and leaf springs with 15" trailer tires. A standard 2" ball coupling, two standard safety chains, and 7-pin flat trailer plug allow for easy hookup and towing. The trailer tongue can be removed for long term deployment. A rugged and waterproof job box is included, safely secured to the trailer. Four 1,000 lbs hand crank leveling jacks are used for leveling. The jacks can be leveled by hand crank or attachment provided for power drills. These outriggers can be extended 2` out from the side of the trailer for added stability. All trailer lighting complies with DOT/FMVSS regulations.|
