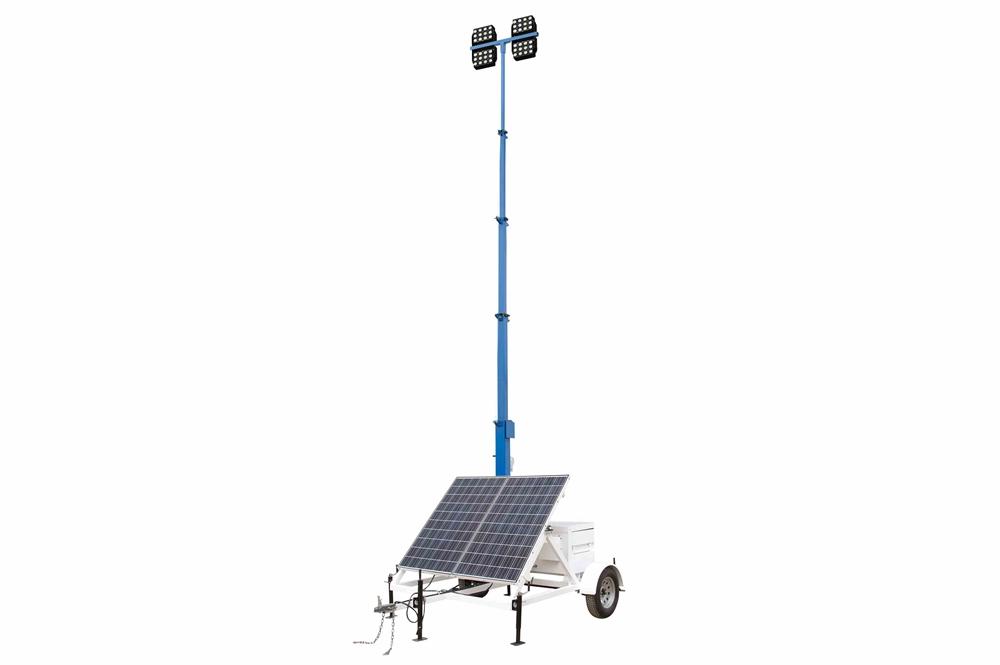

580W Solar Light Tower - 30' Tower - 14' Trailer - (4) LED Lamps - 4kW Generator - Timer/Sensor

LARSON ELECTRONICSSKU: PL3-SPLT-.53K-LM30-4X60LTL-ISDG-AT.DNS-TLR14
filler

Price:
Sale price$62,021.99

Description

Specifications / Additional Information
SPLT-.53K-LM30-4X60LTL-ISDG-AT.DNS-TLR14 Trailer Mounted Light Tower Quick Summary
Light Mast Specs 13.5` to 30` Light Mast
Tower Length: 13.5` to 30` Steel Construction
Mast Head Length: 44" Power Coated Finish
Materials: Steel Removable Mast Head
Finish: Powder Coated - Gloss Blue (4) 1,000lb Outriggers
Operation: (1) 1,000lbs Hand Winch 125 mph Wind Resistance
Cable: 3/16" Galvanized Aircraft Cable Manual or Optional Electric Operation
  A-Frame for mounted (2) 265 Watt Solar Panels
Solar Specs Fully Solar, No Fuel Needed
Panes: (2) 265 Watt panels IP67 Waterproof/Vapor Proof Lamps
Method of Deployment: Fixed Mount 50,000+ Hour LED Life
System Voltage: 24 Volts Auto Timer + Day/Night Sensor
Battery Bank: (4) 6V 200aH batteries 14' Trailer
Battery Capacity: 200aH Total / 100aH Usable

Backup Genset Specs
Unit Type: Diesel
Generator Capacity: 4kW
Fuel Tank Capacity: 20 Gallons

LED Lamp Specs
Lamp Qty: (4)
Lamp Type: CREE LED
Voltage: 24V DC
Total Watts: 400W
Single-lamp Watts: 100W
Total Lumens: 32,400 lms
Single-lamp Watts: 8,100 lms
Luminous Efficacy: 81 lm/w
LED Life Expectancy: 80,000+ hours
Color Temp: 3000K, 4000K, 5000K or 6500K
Color Rendering Index: 80
Beam Angle: 10° Spot, 24° Wide Spot, 38° Narrow Flood, 60° Flood or 90° Wide Flood
Optics Efficiency: 98% - PMMA High Transmittance Optics
LED Drive: 90%
Amps: 6.8A @ 24V DC
Ambient Temp Range: -40°C to +80°C
Materials: Die Cast Aluminum Housing, PMMA Optics
Mount: Tower
Housing Color: Natural Aluminum
Lamp Settings: Automatic, Timed Interval, Manual (via 3-way Switch)

Trailer Specs
Materials: Steel
Trailer Dimensions: 14`L` x 7`W trailer bed - 10.75` total length
Hitch: 2" Ball Coupler
Wiring: 7-Pin Flat
Axle: 3,500lb
Suspension: 3,500 Lb 4-Leaf Double Eye Springs
Outriggers: (4) 1,000 Manual Crack Leveling Jacks
Wheels: (2) 15" 5x4.5 Steel Rims
Tires: ST205/75/D15 H188
Weight: +-600 lbs
Shipping: Common Freight Toll Free: 1-800-369-6671
Shipping Dimensions: 8`-L x 8`-W x 12`-H
Shipping Weight: +-600 lbs Fax: 1-903-498-3364
Options: Length- Mounting-Fixtures/ Call Us for Special Requirements E-mail:
' Product Overview '
Made in the USA The Larson Electronics SPLT-.53K-LM30-4X60LTL-ISDG-AT.DNS-TLR14 Solar Light Tower provides a safe and effective way for operators to quickly deploy 400 watts of intense LED illumination to elevations up to thirty feet. This solar light plant features a telescoping light tower that folds over for easy transportation, features a rotating boom that allows for 360° of rotation, and a removable mast head for storing the four LED light fixtures when not in use. Equipped with a 4kW backup diesel generator, the unit features two, 265-watt solar panels and a 200-amp capacity battery bank. The entire assembly is mounted onto a 14` single axle trailer, allowing operators to transport this solar light tower from location to location. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO LIGHT MASTS OR LIGHT TOWERS* Solar Powered Light Tower: This solar light tower includes two solar panels, solar charging system, battery bank, backup diesel generator, four LED lamps with auto timer/sensor and a manual crank-up mast mounted on a 14' trailer with outriggers. This 0.53KW solar generator system replenishes amp hours of usable battery capacity per day, assuming 5.5 hours of peak charging sunlight. This system delivers 24 volts for lighting mounted atop the 30` telescoping light mast. Light Mast: This telescoping five stage steel light mast from Larson Electronics’ is designed to allow operators to quickly and safely deploy the four LED light heads in locations where this equipment must be elevated to heights up to 30` for effective coverage. This light boom can be extended to 30` above the trailer floor for maximum area coverage, and collapsed to 13.5` for applications where a smaller footprint is required. The tower is constructed of square steel tubing with a base section 6.6` in length and 6" by 6" by 3/16" thick, lower section 6.78` in length and 5" by 5" by 3/16" thick, middle section 6.93` in length and 4" by 4" by 1/8" thick, upper section 7.08` in length and 3" by 3" by 1/8" thick, and top section 7.58` in length and 2" by 2" by 1/8" thick. Each section has a 1`+ overlap. The mast is extended to its full height using an included 1,000lb rated hand winch with 3/16" galvanized steel cable. A 44" wide and 2" by 2" by 1/4" thick mounting plate is attached to the upper section of the mast which provides a strong and stable platform for the equipped LED light fixtures. When elevated to its full upright position, the mast can be rotated a full 360°. By loosening the T-Handle, operators can rotate the mast with easy in either direction. The mast can be positioned in one of four different positions, and locked back in place by re-tightening the T-handle. The mast itself spins freely with easy, and can typically be rotated with a single hand. The LM series of towers are powder coated with glossy blue finish for corrosion resistances and aesthetics. The LM family of telescoping towers feature a proprietary mast guidance system, which provide increased stability during high winds. Four 1,000 lbs hand crank leveling jacks are used for leveling. The jacks can be leveled by hand crank or attachment provided for power drills. These outriggers can be extended 2` out from the side of the trailer for added stability. When lowered to 13.5`, the mast can withstand winds up to 125 mph. Custom builds can be provided for higher wind speed resistance when fully raised.
44" Mast Head for mounting lights and equipment Mast folds over for transportation and when not in use
Click Image to Enlarge Click Image to Enlarge
LED Light Fixtures: This solar light plant is equipped with four of Larson Electronics` GAU-LTL-60W-LED-24VDC high output LED light fixtures. Each LED lamp produces 8,100 lumens of high intensity light while drawing only 100 watts at 1.7 amps from a 24 volt electrical system. Six CREE® high output LEDs producing 1,350 lumens each are arranged in rows and paired with PMMA high purity optics to produce a well focused 24° wide spot beam that is ideal for providing far reaching concentrated illumination while still covering a substantial amount of area. We also offer optional optics with 10° spot, 38° narrow flood, 60° flood, and 90° wide flood beam spreads. The spot beams are tightly focused and are designed for high elevation mounting to achieve distance, making spot versions ideal for high mast and spots lighting. The flood beams are designed to provide more light over a larger area nearer the fixture, making flood versions ideal for use as dedicated work and area lights. The GAU-LTL-60W-LED-24VDC series of LED lights from Larson Electronics offers IP67 rated construction that is designed to withstand extremes of environmental and operating conditions. These units can withstand rapid temperature changes of -40° Celsius to +80° Celsius, are waterproof, and resist ingress of dust, dirt and humidity. The housings are formed from die cast aluminum and the optics are high transmission PMMA with 98% light transmittance. The CREE® LEDs help these units achieve resistance to vibrations and are rated at 70% lumen maintenance after 80,000+ hours of use. We recommend these LED lights for use in applications where a lot of vibration, dust, dirt, dampness and abusive working conditions are encountered. LED Technology: Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current applied and emitting light. With LED lights, there is no warm up time or cool down time before re-striking and provide instant illumination when powered on, adding to the reliability of LED technology. By nature, LED light sources run significantly cooler than traditional lamps, reducing the chance of accidental burns and increased temperatures due to heat emissions. This solid state design of light emitting diodes provides a more reliable, stable, durable, and energy efficient light source over traditional lighting. Lamp Control: The LED lamps feature three settings for versatile operation, which is facilitated by a 3-way switch (automatic, timed interval and manual). Automatic operation is facilitated by a day/night (dusk to dawn) sensor, only turning the fixtures on when ambient light levels reach below 5 lux. Timed interval operation allows operators to set a timed schedule for the lamps. Manual operation includes standard on/off switch for manual override.
Images Below Show Light Tower Lowered and Raised to 30ft.
Click Images to Enlarge
Lamps Off (Ambient Light) (4) 60 Watt LED Lamps Turned On Illuminating Wall 200ft. Away (20,000+sq.ft. area)
Area from Above
Solar Panel Assembly: This unit is comprised of two, 265-watt solar panels, generating a total maximum output of 0.53 KW. The panels are mounted to a stationary assembly. The panels are wired to the solar charger control box which manages the charging system. The two solar panels are mounted to a frame angled at 45° to capture the intensity of the sun for optimized light intake. Backup Generator: An included backup generator can be used for supplementary power. This 4kW diesel genset contains a 20-gallon fuel tank. Component Control Center: All the electrical components are encapsulated in a NEMA 3R job box that is bolted to the trailer. Since most of these components are not rated for high heat, our component cooling system circulates air within the job box at 1400 CFM when the ambient temperature exceeds 90 degrees Fahrenheit. The job box that contains the component control system includes locks for security purposes. Trailer Assembly: The entire assembly is mounted to a 14` by 7`, single axle trailer via six 1/2" anchor bolts. The two-wheel trailer is equipped with 3,500 lbs axle and leaf springs with 15" trailer tires. A standard 2" ball coupling, two standard safety chains, and 7-pin flat trailer plug allow for easy hookup and towing. The trailer tongue can be removed for long term deployment. A rugged and waterproof job box is included, safely secured to the trailer. Four outriggers mounted to the corners of the trailer allow operators to level the trailer, and provide stabilization during deployment. All trailer lighting complies with DOT/FMVSS regulations.
