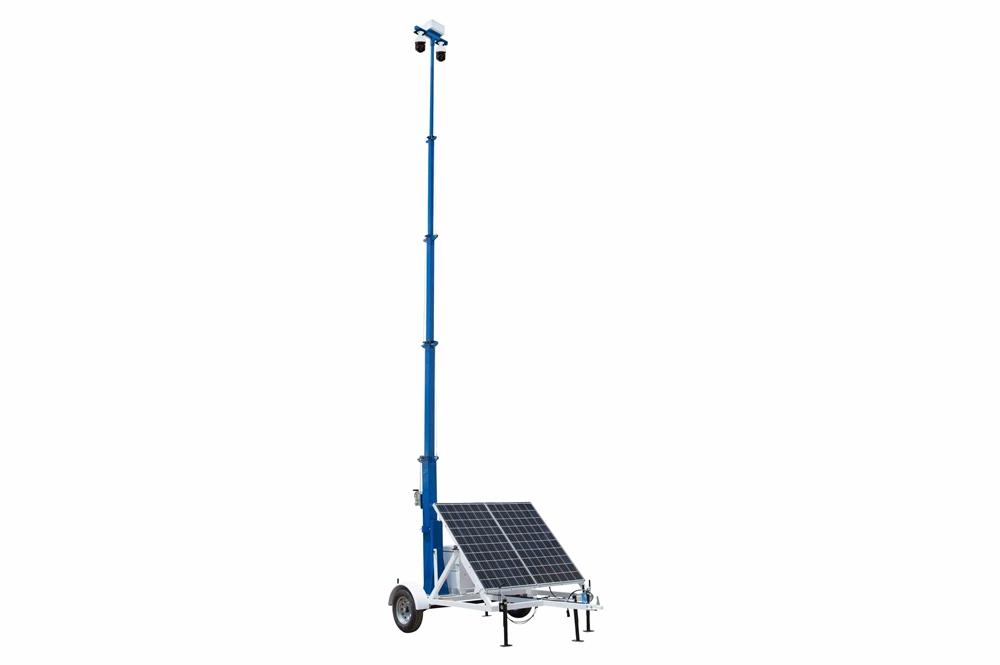

45' Portable Solar Security Tower - 7.5' Trailer - (2) 5MP Cameras, 2TB NVR, Router/4G Hotspot - NDAA Compliant


Sale price$58,493.99


Specifications / Additional Information
SPLT-.53K-LM45-2XN3B-PW-TLR7-NDAA-2XPTZ-2TB-W4G-M1 Trailer Mounted Solar Generator Security Mast - NDAA Compliant Quick Summary
Mast Specs National Defense Authorization Act (NDAA) Compliant
Tower Length: 13.5` to 45` 13.5` to 45` Mast
Mast Head Length: 44" Steel Construction
Materials: Steel Powder Coated Finish
Finish: Powder Coated - Gloss Blue Removable Mast Head
Operation: (1) 1,000lbs Hand Winch (4) 1,000lb Outriggers
Mast Cable: 3/16" Galvanized Aircraft Cable 125 mph Wind Resistance
Cable Sheath: Sealtight Coiled Tubing Manual or Optional Electric Operation
A-Frame for mounted (2) 265 Watt Solar Panels
Solar Specs Fully Solar, No Fuel Needed
Panels: (2) 265 Watt panels Low Noise Operation
Method of Deployment: Fixed Mount IP66 Waterproof Cameras
System Voltage: 12 Volts Day/Night Monitoring
Battery Bank: (2) 12V 8D 250aH batteries De-fog Viewing
Battery Capacity: 500aH Total / 250aH Usable 66` IR Distance
  Motion Detection
Dome Camera Specs CAT5E Networking Cable
Unit Type: (2) Security Camera Professional Grade Router
Camera OEM: Arecont Vision Extended Coverage via External Antenna
Camera Model #: MConteraIP AV05CLD-100 Verizon 4G Hotspot
Single-camera Dimensions: 5.77"-D x 5.42"-H
Single-camera Weight: 2.65 lbs
Total Watts: 13W (Max)
Voltage: 12-48V DC, 24V AC (PoE - 802.3at)
Image Sensor:  CMOS Progressive Sensor
Shutter Speed: Auto/manual 0.1ms ~ 500ms
Effective Pixels: 5 MP, 2592 H x 1944 V - Full FOV Resolution
Min. Illumination: 0.1 Lux (Color Day Mode), 0.01 Lux (B/W - Night Mode)
Lens: 2.7–13.5mm
Angle of View: H-FOV = 30°–92°, V-FOV = 22°–64°
Day/Night: IR
IR Distance: 66`
Video Framerate: Up to 30fps (1080p)
Compression Type: H.265/H.264 (MPEG-4, Part 10)/Motion JPEG
Bit Rate Control: 64K–8000K
Transmission Protocols: SNMP, HTTP, HTTPS, IPv6, IPv4, SSL, TCP/IP, UPnP, UDP, RTCP, RTSP, RTP, SMTP, NTP, DHCP, FTP, 802.1x, Zero Configure
Multi-Streaming: (2) H.265/H.264 stream, (1) M-JPEG stream
Users: Live viewing/Administrator for up to 10 Clients
Alarm Input/Output: (1) Input (Wet Contact), (1) Output (Wet Contact)
Event Trigger: Motion Detection, Tampering Detection, Alarm In
Notifications: Send/record message via e-mail/FTP/NAS/SD card, record JPG/mp4
Storage: MicroSDXC slot up to 256GB (card not included)
Language: English
Ambient Temperature Range: -4°F to 122°F
Housing Materials: Die-cast Aluminum Chassis
Lens Material: 4" Polycarbonate Dome Bubble
Mounting: Tower
NVR Specs
Device Type: Network Video Recorder
Storage Capacity: 2 TB SATA Hard Drive
Channels: 8
Camera Resolution Support: Up to 8MP
Installation Type: Plug and Play
Incoming Bit Rate: 40Mbps
Outgoing Bit Rate: 80Mbps
FPS: 60fps Per Channel
Compression Format: H.265, H.264, H.264 OVC
Recording Modes: Continuous, Schedule, Event, Motion Detection, VCA
Export Format: MP4
Video Outputs: (1) RCA, (1) VGA, (1) HDMI, (1) USB 2.0 (Front), (1) USB 3.0 (Rear)
Two-way Audio Input: 1-ch, RCA
Power Over Ethernet: = 120W, Supported Standards- 802.3af and 802.3at
Alarm Input: 4x (Rear Panel), Camera Dependent
Alarm Output: 1x (Rear Panel), Camera Dependent
Power Requirements: 100 ~ 240V AC
Housing Material: Aluminum
Operating Temp: 14°F ~ 131°F
Networking Cable: CAT5E
Router/Antenna Specs
Router Type: Pepwave Surf SOHO Router
WAN Interface: 1x 100/1000M Ethernet Port, 1x USB 2.0 Interface, Wi-Fi as WAN
LAN Interface: 4x 100/1000M Ethernet Ports, Simultaneous Dual-Band 11ac Wi-Fi AP
Wi-Fi AP Operating Frequency: 2412 - 2472MHz and 5180 - 5825MHz
Wi-Fi Data Rates: 3x3 MIMO, 2.4GHz: 450Mbps or 5GHz: 1300Mbps
Wi-Fi Antenna: 3x External Wi-Fi Antenna
Router Throughput: 120 Mbps
Power Input: DC Jack: 10V - 24VDC AC Adapter: AC Input 100V - 240V, DC Output 12V, 3A
Power Consumption: 26W (w/ USB WAN), 22W (w/o USB WAN)
Dimensions: 9.17` x 5.6` x 1.18`
Weight: 0.86 lbs
Humidity: 15% - 95% (Non-condensing)
External Antenna Frequency: 690~960 MHz, 1710~2170 MHz, 2500~2700 MHz
External Antenna Gain: 5dB
External Antenna Height: 12`
Trailer Specs
Materials: Steel
Trailer Dimensions: 7.5`L` x 7`W trailer bed- 10.75 total length
Hitch: 2" Ball Coupler
Wiring: 7-Pin Flat
Axle: 3,500lb
Suspension: 3,500 Lb 4-Leaf Double Eye Springs
Outriggers: (4) 1,000 Manual Crack Leveling Jacks
Wheels: (2) 15" 5x4.5 Steel Rims
Tires: ST205/75/D15 H188
Weight: +-600 lbs
Shipping: Common Freight Toll Free: 1-800-369-6671
Shipping Dimensions: 8`-L x 8`-W x 12`-H
Shipping Weight: +-600 lbs Fax: 1-903-498-3364
Options: Length- Mounting-Fixtures/ Call Us for Special Requirements E-mail:
' Product Overview '
Made in the USA The Larson Electronics SPLT-.53K-LM45-2XN3B-PW-TLR7-NDAA-2XPTZ-2TB-W4G-M1 solar powered security tower provides a safe and effective way for operators to quickly deploy cameras, security devices, and other equipment to elevations up to 45 feet. This solar security plant features a telescoping tower that folds over for easy transportation, a rotating boom that allows for 360° of rotation and a removable mast head for storage when not in use. The low-noise unit features two, NDAA compliant dome cameras, router/wireless 4G hotspot access, two, 265-watt solar panels and a 400aH capacity battery bank with 200aH being usable. A 2TB NVR can be found at the base of the mast. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO LIGHT MASTS OR LIGHT TOWERS* This trailer mounted security mast with solar generator has a 12" x 12" x 6" junction box and two, outdoor cameras mounted at the top of the mast. The junction box supports the security cameras for a 360° field of view and can be used with other electrical devices for each operator's specific needs, such as small sensors and monitoring devices. The junction box is mounted to the mast head via a half-moon shaped mounting plate. External sealtite coiled tubing runs around the mast to allow operators to run Ethernet cable to the junction box at the top of the mast. The tubing connects the junction box and base solar component box together. The entire assembly is mounted onto a 7.5` single axle trailer, allowing operators to transport this portable solar tower from location to location. Operators may access a 2TB NVR for network configurations. The system, which supports wireless 4G hotspot access, utilizes CAT5E cable for networking. The outdoor security cameras comply with the 2019 National Defense Authorization Act (NDAA). The regulation bans federal governments, their contractors and businesses with national security interests from buying and using surveillance equipment made by specific major China-based manufacturers, including Hikvision, Dahua and their OEMs. Security products sold by Honeywell, Bosch, Panasonic, ADT, Flir and many more are affected by the ban. NDAA compliance also includes a ban on ZTE, Huawei and Hytera telecommunication equipment. Network Cameras: The security cameras provide operators with crisp, 1080p full-HD high resolution images. A 2.7-13.5mm lens automatically adjusts focus, providing operators with precise optical zoom levels. Integrated long-range IR LEDs enable the day/night cameras to see distances up to 66` under nighttime conditions. The units offer auto backlight compensation, auto gain control, unlimited privacy masking and multi-streaming capabilities. The dome cameras each measure a compact 5.77" x 5.42". Protected by a 4" polycarbonate lens bubble, the cutting-edge security devices are designed to perform in outdoor locations and rainy conditions. The IP66-rated units resist the negative effects of non-corrosive liquids. De-fogging features enable the units to operate in rainy and foggy conditions. The devices are capable of operating in temperatures between -4°F and 122°F. NVR: The solar tower contains an 8-channel NVR that can be used with the network cameras. Setup only takes minutes via plug-and-play, which automatically detects, displays and configures system components. With multiple recording modes (Schedule, Continuous, Motion Detection and Event) and 2TB of storage, users could capture hours of footage with ease. The remote configurable network recorder features a bit rate of 40Mbps incoming and 80Mbps outgoing at up to 60fps per channel. To maximize storage, the unit supports H.265, H.264, and H.264 OVC video compression. The network recorder is compatible with two-way audio streaming (camera dependent) and includes 9 ethernet ports (RJ-45 interface). During recording, the unit handles the following data: activity log, email notification, event log, event notification, video analytics and event search. This device offloads videos in MP4 format. Cameras hooked up to the NVR-POE-8CH-2TB may use power directly via PoE (802.3af / 802.3at) during operation. The NVR runs on 100 - 240VAC of power and is suitable for use in temperatures between 14°F - 131°F. NVR Inputs: (1) RCA, 4 Sensor Inputs NVR Outputs: (1) RCA, (1) VGA, (1) HDMI, (1) USB 2.0 (front), (1) USB 3.0 (rear) Router/Wireless 4G Hotspot: Operators can connect to Verizon 4G internet via a professional-grade router. The unit supports dual-band 2.4 GHz (450 Mbps) and 5 GHz (1,300 Mbps), as well as 3x3 MIMO. Stateful firewall and DoS prevention ensures secure network usage during operation. Settings and configurations are controlled via a cloud-based smartphone app or web-based computer program. An external antenna is available for signal boosting and extending hotspot coverage. The antenna measures 12` and offers compatibility with the following frequencies: 690~960 MHz, 1710~2170 MHz and 2500~2700 MHz.
Click Photo to Enlarge
Solar Powered Security Tower: This continuous-operation solar security tower includes two 265 watt solar panels, solar charging system, battery bank and manual crank up mast mounted on trailer with outriggers. This 0.53KW solar generator system replenishes amp hours of usable battery capacity per day, assuming 5.5 hours of peak charging sunlight. This system delivers 12 volts for equipment mounted atop the 45` telescoping mast. Mast: This telescoping five stage steel mast from Larson Electronics is designed to allow operators to quickly and safely deploy a variety of equipment in locations where it must be elevated to heights up to 45` for effective coverage. This mast can be extended to 45` above the trailer floor for maximum area coverage, and collapsed to 13.5` for applications where a footprint smaller is required. The tower is constructed of square steel tubing with a base section 6.6` in length and 6" by 6" by 3/16" thick, lower section 6.78` in length and 5" by 5" by 3/16" thick, middle section 6.93` in length and 4" by 4" by 1/8" thick, upper section 7.08` in length and 3" by 3" by 1/8" thick, and top section 7.58` in length and 2" by 2" by 1/8" thick. Each section has a 1`+ overlap.  The mast is extended to its full height using an included 1,000lb rated hand winch with 3/16" galvanized steel cable. Junction boxes are mounted at the top of the first stage and at the very top of the mast for equipment setup, connection, and deployment. A 44" wide and 2" by 2" by 1/4" thick mounting plate is attached to the upper section of the mast which provides a strong and stable platform for the equipped cameras. A half-moon shaped mounting plate on the top of the mast head provides a secure mounting platform for the NEMA 3R 12" x 12" x 6" junction box, where operators can mount cameras, indicator lights, and route electrical cabling. When elevated to its full upright position, the mast can be rotated a full 360°. By loosening the T-Handle, operators can rotate the mast with easy in either direction. The mast can be positioned in one of four different positions, and locked back in place by re-tightening the T-handle. The mast itself spins freely with easy, and can typically be rotated with a single hand. The LM series of towers are powder coated with glossy blue finish for corrosion resistances and aesthetics. The LM family of telescoping towers feature a proprietary mast guidance system, which provide increased stability during high winds. Four 1,000 lbs hand crank leveling jacks are used for leveling. The jacks can be leveled by hand crank or attachment provided for power drills. These outriggers can be extended 2` out from the side of the trailer for added stability. When lowered to 13.5`, the mast can withstand winds up to 125 mph. Custom builds can be provided for higher wind speed resistance when fully raised.
Click Photo to Enlarge
Solar Panel Assembly: This unit is comprised of two 265-watt solar panels, generating a total maximum output of 0.53 KW. The panels are mounted to a stationary assembly. The panels are wired to the solar charger control box which manages the charging system. The two solar panels are mounted to a frame angled at 45° to capture the intensity of the sun for optimized light intake. Component Control Center: All the electrical components are encapsulated in a NEMA 3R job box that is bolted to the trailer. Since most of these components are not rated for high heat, our component cooling system circulates air within the job box at 1400 CFM when the ambient temperature exceeds 90 degrees Fahrenheit. The job box that contains the component control system includes locks for security purposes. Trailer Assembly: The entire assembly is mounted to a 7.5` by 7`, single axle trailer via six 1/2" anchor bolts. The two wheel trailer is equipped with 3,500 lbs axle and leaf springs with 15" trailer tires. A standard 2" ball coupling, two standard safety chains, and 7-pin flat trailer plug allow for easy hookup and towing. The trailer tongue can be removed for long term deployment. A rugged and waterproof job box is included, safely secured to the trailer. Four outriggers mounted to the corners of the trailer allow operators to level the trailer, and provide stabilization during deployment. All trailer lighting complies with DOT/FMVSS regulations.
