Larson 4-Stage Trailer Hitch Mount Equipment Tower w/ T-Head - 6.4' to 20' - Powder Coated

Larson ElectronicsSKU: PL3-TAPTH-20FT-MOD2

Sale price$14,356.99


Made in Texas

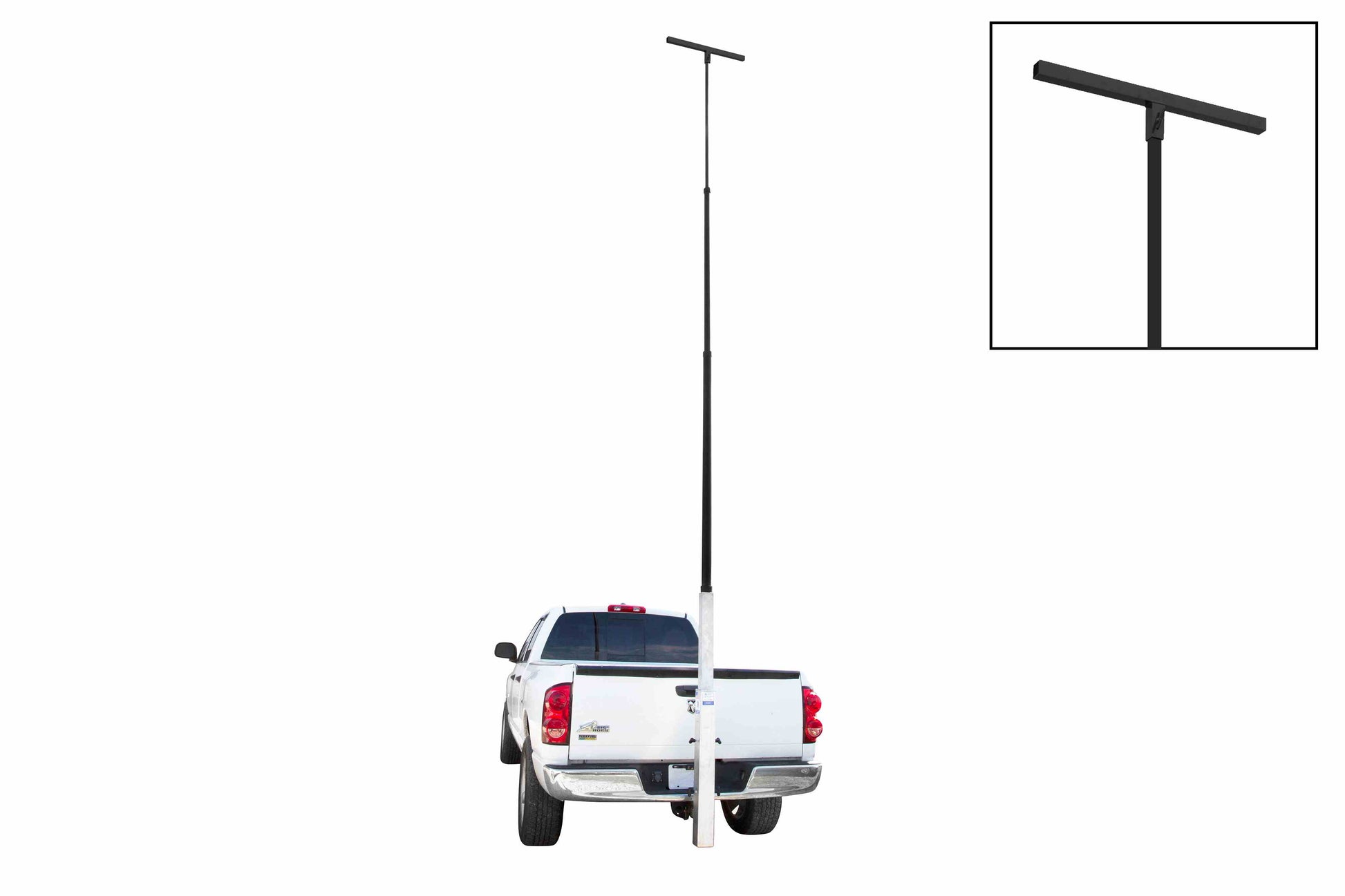

The TAPTH-20FT-MOD2 from Larson Electronics is a Trailer Hitch Mount Equipment Tower with T-Head Mount that allows operators to mount and lift lights, speakers, cameras and other electronic equipment to heights of up to twenty feet. This four-stage trailer hitch mount tower is constructed from durable aluminum and extends from 6.4 feet to twenty feet while allowing for quick deployment of mounted equipment. When completely collapsed, the TAPTH-20FT-MOD2 will easily fit into the bed of most pickup trucks.
The four-stage aluminum pole on the TAPTH-20FT-MOD2 can extend up to 20` and collapses down to 6.4` for storage, lower elevation of camera operation and transportation. The adjustable pole mount features a pneumatic braking system that prevents unexpected or sudden collapse of the pole. In the event the pole is fully extended and the operator inadvertently releases the locking tabs, the pole will ease down gently instead of suddenly collapsing. This feature is useful for preventing damage to the unit. The bottom stage of this unit measures 36.25" tall by 4" wide while the top stage has an inner diameter of 1".
This trailer hitch mount tower is constructed of heavy-duty powder coated aluminum. This unit seamlessly attaches to a standard size trailer hitch and raises to 20` without the need for any tools. The aluminum pole is lightweight without compromising strength to support mounted equipment and the trailer hitch mount is built for strength and flawless deployment even in difficult conditions.
The TAPTH-20FT-MOD2 offers a straightforward process for operators to deploy in the field. Upon arrival at the target location, the operator attaches the trailer hitch mount to the desired hitch. The hitch section can be adjusted using a T-handle for trucks and vehicles of different heights. Once it is firmly attached to the hitch mount, the collapsed aluminum pole is placed into the vertical structure of the trailer hitch mount and secured by tightening the T-handle. The operator then places the mounting plate with the attached equipment to the top of the 20` aluminum pole. Extension of the pole to maximum heights is also a simple process that doesn`t require any tools. The operator twists each stage of the pole to loosen the locking mechanism and uses a hand-over-hand motion to fully extend each stage before locking it into position. Lowering the pole uses the same procedure (in reverse) while support from the pnuematic braking system prevents sudden drops.
Equipment Mounting:
The TAPTH-20FT-MOD2 is equipped with a T-Head for mounting lights, cameras, and other equipment. The T-Head measures 24" wide. The crossbar measures 2" x 2" and is constructed from 1/4" thick aluminum.
Suggested Applications:
Depending on the equipment the operator chooses to mount on this trailer hitch mount equipment pole, the TAPTH-20FT-MOD2 is suitable for border patrol operations, security monitoring, law enforcement operations, military surveillance, covert operations and more. This unit may also be used to monitor outdoor events, large crowds, gatherings, chemical plants, food processing facilities, wastewater establishments, government sites, construction projects, remote operations, emergency camps and other large or industrial properties.
Contact for more information about our custom options tailored to meet your specific industry needs.

Type: Trailer Hitch Mount Equipment Tower
Pole Dimensions: Telescoping - 6.4` to 20`
Weight: 25 lb
Mounting: Trailer Hitch Mount w/ Telescoping Aluminum Pole
Top Stage Inner Diameter (ID): 1"
Mounting Plate Dimensions: 24"W x 2" x 2" x 1/4" Thick
