Larson 3.1 MP Thermal Infrared Imaging Camera - Laser Spot, GPS, Bluetooth, Wi-Fi - 2.5 Hrs Runtime

Larson ElectronicsSKU: PL3-TMRCMR-PCM-3.1MP

Sale price$173,919.99


PuriLite suggests you place an order directly with us for large Larson orders due to the potential customization requirements. Please call us at 1-844-787-5483 to place your order. If you prefer to place your order online, a PuriLite agent will be in touch with you to discuss any custom options.

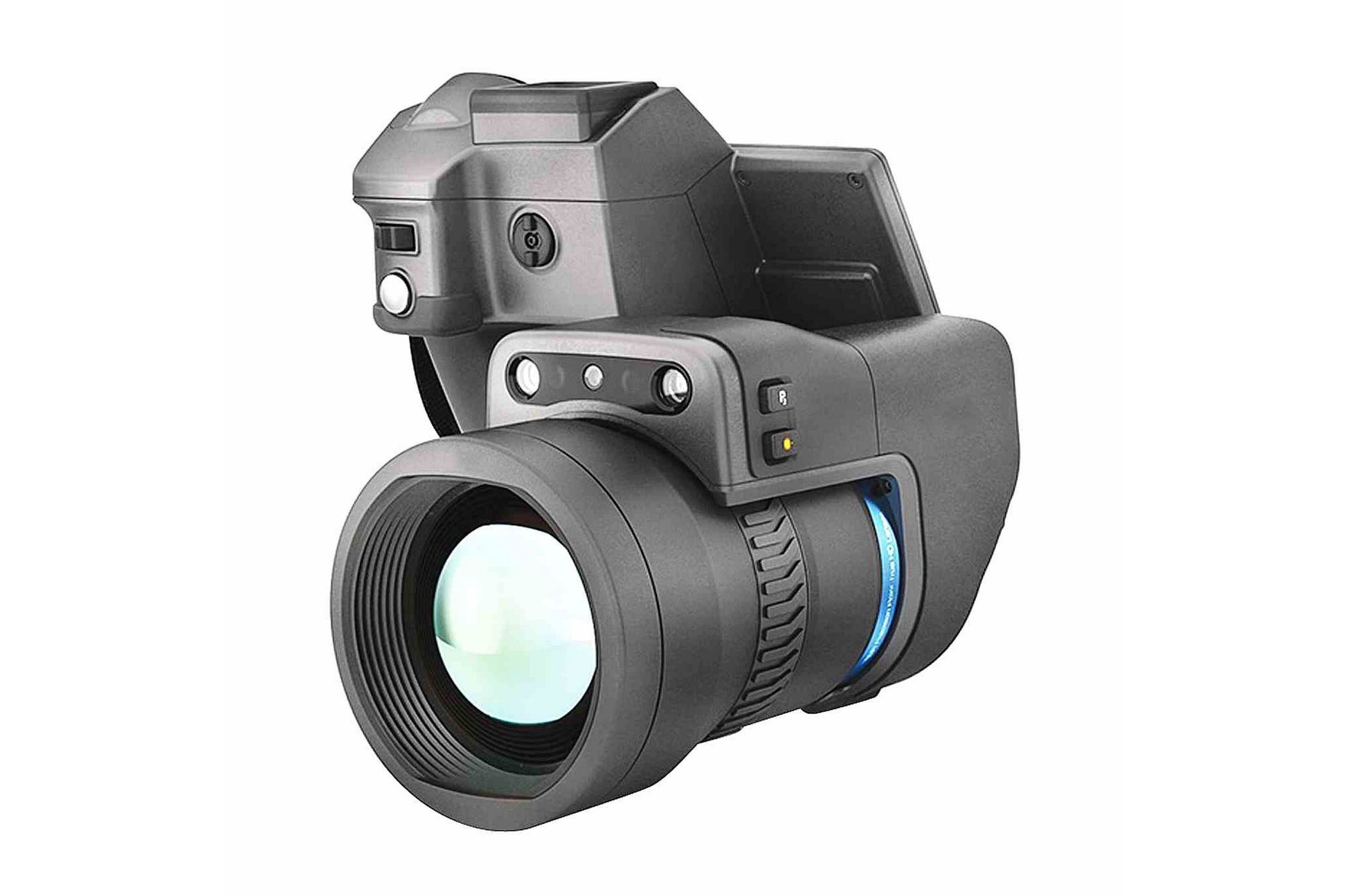

The TMRCMR-PCM-3.1MP Thermal Infrared Imaging Camera is a robust temperature-monitoring device for industrial facilities. Featuring 1024 × 768 HD resolution on a 4.3" screen, this unit can measure temperatures between -40°C and 2,000°C with +/- 1-2% accuracy. Wireless connectivity options include Bluetooth and Wi-Fi. This IP54-rated device is powered by a rechargeable li-on battery with a runtime of 2.5 hours.
Camera Features:
The TMRCMR-PCM-3.1MP is a cutting-edge thermal imaging tool for industrial operations. This unit is capable of producing 3.1 MP images at 1024 × 768 HD resolutions. Featuring a detectable temperature range of -40°C to 2,000°C, the monitoring device provides accurate readings of +/- 1-2 percent in main range with a sensitivity threshold of 0.02°C, depending on the external conditions of the site. Up to 8x continuous digital zoom and a field of view of 28° × 21° ensures precise targeting of objects or surfaces.
The portable thermal camera features proprietary image-enhancing features that removes unwanted noise from images. As a result, the generated thermal images are exceptionally clear, allowing viewers to distinguish small details, signs and logos with minimal effort. A 800 x 480 touchscreen viewfinder allows operators to take snapshots without limiting one`s periphial vision.
The thermal imaging camera supports a wide range of connectivity and communication features for data sharing and storage. Bluetooth and Wi-Fi (802.11 b/g/n) are available for wireless transmission of images in real-time. GPS and a compass provides geographical information. For storage, operators can insert an SD card in the removable SD card slot. Image annotation options include voice, text, image description (tag) and sketch.
This unit is powered by a rechargable li-on battery. In a fully charged state, the power cell offers 2.5 hours of runtime. It also takes 2.5 hours to charge the battery to 90 percent capacity. Operators can charge the battery using an AC adapter, connecting to 90-260V AC outlets or a vehicle connector, connecting to a standard 12V DC vehicle port.
The housing of the thermal imaging device is constructed of heavy-duty magnesium. For protection in rugged work sites, this unit is IP54 rated. The TMRCMR-PCM-3.1MP is designed to be used in a handheld, portable manner. For hands-free applications, operators can mount the device on a tripod (UNC 1/4" - 20).
Thermal monitoring, non-destructive testing (NDT), stress testing, inspections, industrial sites, oil and gas, manufacturing, outdoor systems monitoring, power plants, substations, motors, large machines, cicruit boards, insulated tanks, pipelines and more.
Contact for more information about our custom options tailored to meet your specific industry needs.

Unit Type: Thermal Infrared Imaging Camera
Dimensions: 6.6" × 8.0" × 7.4"
Camera Weight: 4.3 lbs
IR/MSX Resolution: 1024 x 768 Pixels
Screen Size: 4.3"
Megapixels: 3.1 MP
Thermal Sensitivity/NETD:   <20 mK @ +30°C
Field of View (FOV): 28° × 21°
Minimum IR Focus Distance: 1.32`
Focal Length: 1.42"
Digital Zoom: 1-8x Continuous
Object Temperature Range: –40 to +150°C, 0 to +650°C, +300 to +2,000°C
Accuracy: +/- 1°C for Readings Between 5°C and 150°C or +/- 2°C for Readings Between –40°C and 2000°C
Viewfinder: 800 × 480 Pixels, Touchscreen
Connectivity/Geographic: Bluetooth, Wi-Fi, Internal Antenna, GPS, Compass
Image Storage Format: Standard JPEG, SD Card Compatible
Laser Classification: Class 2 (Semiconductor AlGaInP Diode Laser, 1 mW, 635 nm [Red])
Video Lamp: Built-in LED
Ports: USB 2.0, HDMI Type C, (1) SD Card Slot
Operating Temp Range: –15°C to +50°C
Housing Material: Magnesium
Mounting: Tripod or Manual (Handheld)
Battery: Rechargeable Li-ion Polymer
Runtime: 2.5 Hrs
Charger:   AC Adapter (90-260V AC) or Vehicle Port (12V DC)
Color: Black
