TPM-2XWP60E-DNS-10C Telescoping Industrial LED Light
Quick Summary
Lamp Type: CREE LED
Listed for use in United States and Canada
Lamp Dimensions: W-9" D-3.25" H-6.5"
Waterproof/Vapor Proof
Pole Dimensions: Telescoping - 3` to 8.5` Adjustable
3` to 8.5` Adjustable Pole
Weight: 8.3 Lbs Per Lamp
Universal Voltage 120-277V
Total Watts: 120W (60 Per Lamp)
IP68 Waterproof
Voltage: 120-277V AC 50/60 Hz
Impact/Vibration Resistant Construction
Lumens: 10,800 (5,400 Per Lamp)
50,000 Hour LED Life
LED Life Expectancy: 50,000 Hours
ETL Approved for Wet Locations
CRI: 80
Day/Night Photocell
Amps:Â 1 @ 120 VAC
Light Color: 5,600K
Beam Type: 60° Flood
Mounting: Adjustable U-Bracket w/ Thru-Holes
Housing Materials: Cast Aluminum
Housing Finish: Powder Coated
Lens Materials: Polycarbonate
Ambient Temp Range: -25°C to +60°
Luminous Efficacy: 90 lm/w
Wiring: 10` 16/3 SOOW Cord w/ General Area Cord Cap
E-mail:
Cord Cap Options: 5-15 Straight, 6-15 Straight, L5-15 Twist, L6-15 Twist, UK BS1363, Intl. Schuko, Pigtail
Â
Â
'
Product Overview
'

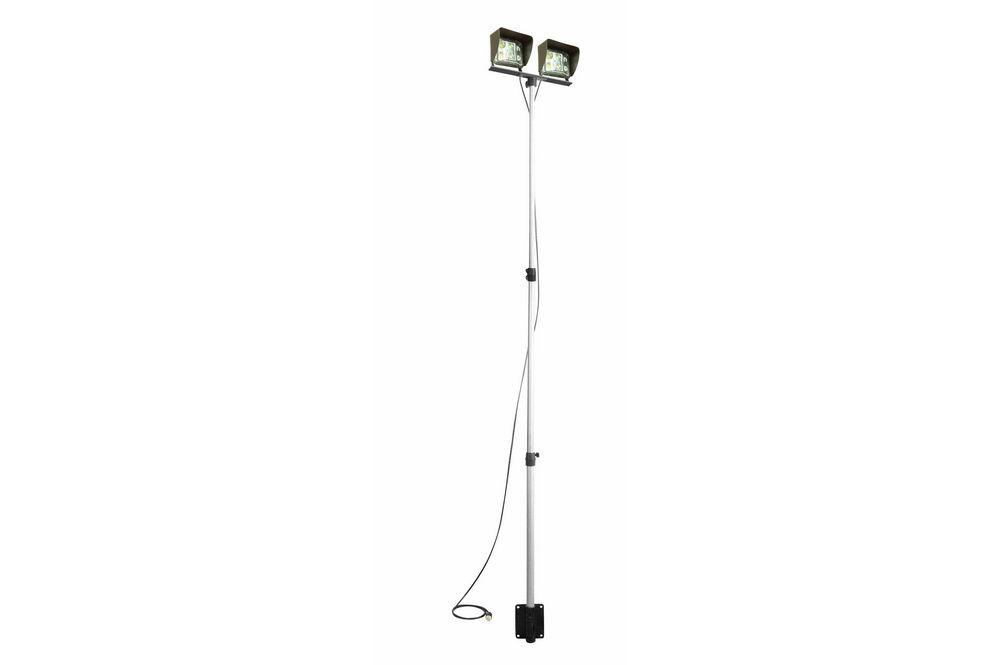

The TPM-2XWP60E-DNS-10C from Larson Electronics is an Industrial LED Light with Telescoping Pole that offers high light output from a compact form factor, and is designed to provide a more durable and long lived alternative to halogen and metal halide units. This powerful, telescoping LED light produces 10,800 lumens, operates on 120 to 277V AC, features a telescoping pole that is adjustable from 3 to 8.5 feet, and includes a mounting plate with four predrilled holes for easy mounting on flat surfaces. This unit features an integrated photocell mounted to the top of the pole.
The TPM-2XWP60E-DNS-10C is designed to withstand demanding conditions and is IP68 waterproof, vapor proof, and built to resist the damaging effects of an outdoor environment. The two included LED lights are 60 watts each and produce a long flood beam of light while drawing only 1 total amp at 120 VAC. Each light assembly consists of six LEDs each, paired with high purity specular optics to produce a wide light distribution overpowering that of a two 500-watt quartz flood lights. These lights are constructed of three angled boards that helps provide a wider spread. Instead of the light only shining forward, the center boards are concentrated to go straight out while the boards on the side are 45° offset.
Durability: Each LED lamp consists of six LEDs housed within a waterproof aluminum housing that is powder coated for added durability and resistance to corrosion. The housing incorporates integral cooling fins for efficient heat dissipation and increased LED longevity. The LED lamp assemblies are protected by a shatterproof polycarbonate lens which is secured to the housing with a waterproof seal. A 1/2" waterproof connector provides a secure and sealed power connection point and rounds out this unit`s weather resistant construction. An optional glare shield for each lamp is shipped with this unit.
LED Benefits: Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation and/or transportation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied, providing instant illumination with no warm up or cool down time before re-striking. Because there is no warm up period, this light can be cycled on and off with no reduction in lamp life.
LED lights run at significantly cooler temperatures than traditional metal halide and high pressure sodium lights and contain no harmful gases, vapors, or mercury, making them both safer and more energy efficient. No extra energy is wasted in cooling enclosed work areas due to external heat emissions from bulb type lights, and the operator risks associated with traditional lighting methods, such as accidental burns and exposure to hazardous substances contained in the glass bulbs, are eliminated. In addition, LEDs are also safer for the environment as they are 100% recyclable, which eliminates the need for costly special disposal services required with traditional gas burning and arc type lamps.
High Output LEDs: The LEDs in this unit are Cree units that have been chosen for their high lumen per watt ratio and extreme long life. These Cree LEDs provide 90 lumens per watt effective lumen output and have a 50,000 rated lifespan, giving them better efficiency and operational life than traditional light sources. These lights are equipped with high purity optics and available in a long beam 60° flood configuration for wide area coverage. Utilizing a polycarbonate lens, this fixture produces a higher light output than similar fixtures equipped with thicker glass lenses. The TPM-2XWP60E-DNS-10C has is offered in 5,600K cool white with a color rendering index of 80.
Mounting: The TPM-2XWP60E-DNS-10C features a telescoping pole that is adjustable from 3 to 8.5 feet. The telescoping pole features a mounting plate that has four predrilled holes for easy mounting to flat surfaces. This pole features a pneumatic braking system that prevents unexpected or sudden collapse of the pole. If the pole is loaded with a pair of heavy fixtures for instance and the operator inadvertently releases the locking tabs, the pole will simple ease down gently rather than suddenly collapse.
Wiring/Plug: This general use telescoping LED light fixture is equipped with 10 feet of 16/3 chemical and abrasion resistant SOOW cord that is fitted with an industrial grade cord cap for easy connection to common wall outlets. Plug options include standard 5-15 15 amp straight blade plug for 110V wall outlets with ground, standard 6-15 15 amp straight blade plug for 220-240V wall outlets with ground, NEMA L5-15 15 amp twist lock plug for 125V twist lock outlets, NEMA L6-15 15 amp twist lock plug for 240V twist lock outlets, British BS1363 13 amp fused 3-blade plug for United Kingdom outlets, or a two pin 16 amp rated Schuko plug with ground contact and socket for European outlets up to 250V. Alternatively, we can provide flying leads with no plug for hard wire applications or for operators who prefer to wire in user provided cord caps. Please choose pigtail option below for flying leads with no plug.
Power: These lights operates on 120 to 277V A and providing versatile power connection options. Each lamp draws just 0.5 amps at 120 VAC.
Photocell: The day/night detecting sensor that automatically turns on an flag pole LED light when the level of daylight drops. This phoocell can detect ambient lighting and tell whether it is night or day outside. The sensor is also equipped with a test shield, allowing operators to override the sensor to ensure its functioning properly. The photocell is mounted to the top of the fixture.
Versatility: The TPM-2XWP60E-DNS-10C is listed for use in United States and Canada. The unit carries an IP65 waterproof rating ensuring protection against ingress from oils and water sprayed from any direction on the fixture. This light is ideal for indoor or outdoor applications and industrial operations where wet conditions are commonly encountered.
