Description
PuriLite suggests you place an order directly with us for large Larson orders due to the potential customization requirements. Please call us at 1(647) 254-9757 to place your order. If you prefer to place your order online, a PuriLite agent will be in touch with you to discuss any custom options.
Made in the USA

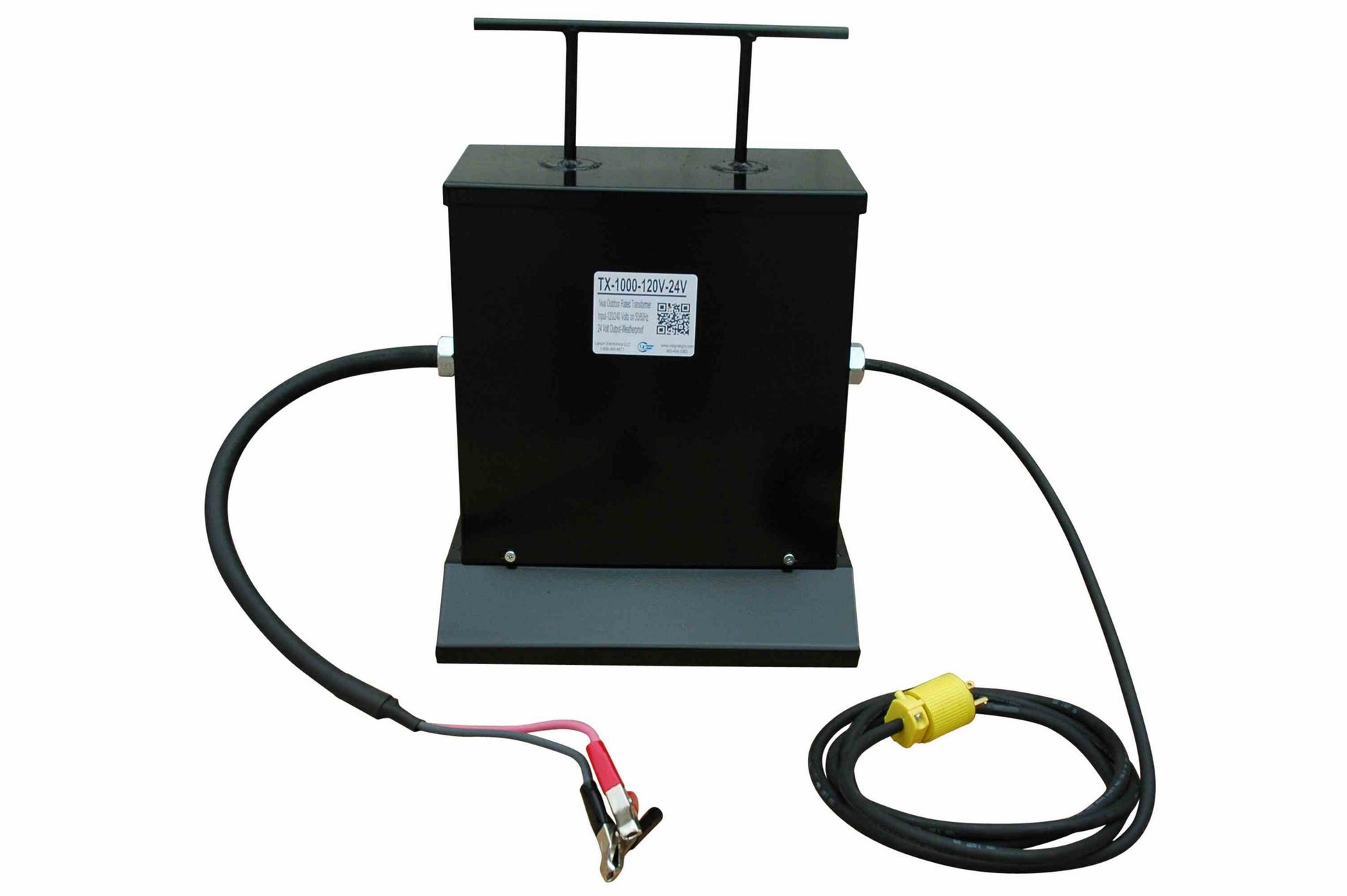

The Larson Electronics TX-1000-30FT.12FT 1kva power transformer converts 110-120/220-240 VAC at 50/60hz to 12 or 24 VDC and is ideal for powering 12 or 24 volt based lights and equipment.
This 1KVA, coil based power transformer accepts 120-240 VAC electrical current and provides 12 volts at 83 amps or 24 volts at 41 amps via a 1 foot SOOW cord depending upon the chosen configuration. The transformer in this unit is encased within a weatherproof NEMA 3R rated enclosure and produces minimal interference with the wireless radio receivers often found in remote controlled lighting equipment such as Golight wireless remote controlled spotlights.
The primary input on this unit accepts either 120 or 240 VAC at 50/60 Hz depending upon configuration, and is connected through a 5 foot SOOW cord with industrial cord cap. Output from this unit delivers 12 Volts at 83 amps or 24 Volts at 41 amps DC depending upon the unit’s configuration. This unit is preconfigured for specific current input and output before shipping. Please select your desired current voltages from the drop down boxes below when ordering.
Some power transformers produce significant radio frequency interference which can cause erratic operation of radio controlled devices. This NEMA 3R encapsulated transformer is ideal for use with wireless remote controlled Golight models GL-3049H, RCL360HID and any other equipment that relies on radio receivers for remote operation when mounted 2 feet or more from such equipment. This heavy duty unit measures 25†tall x 14†wide x 11†deep, is surface mountable, and provides a reliable and low interference low voltage power solution for equipment requiring 12 or 24 VDC.
We can build transformers to your Specifications. If this model does not meet your needs, please contact us at 1(647) 254-9757 or
Contact info@purilite.ca
.
Specifications
Line In:
Line Out: 12VDC -24VDC
KVA: 1
Rating: NEMA 3R Enclosure
Dimensions: 25"H x 14"W x 11"D
Wiring: Input- 30` SOOW Cord Output- 12` SOOW Cord
Mounting: Surface Mount
Made in the USA
The Larson Electronics TX-1000-30FT.12FT 1kva power transformer converts 110-120/220-240 VAC at 50/60hz to 12 or 24 VDC and is ideal for powering 12 or 24 volt based lights and equipment.
This 1KVA, coil based power transformer accepts 120-240 VAC electrical current and provides 12 volts at 83 amps or 24 volts at 41 amps via a 1 foot SOOW cord depending upon the chosen configuration. The transformer in this unit is encased within a weatherproof NEMA 3R rated enclosure and produces minimal interference with the wireless radio receivers often found in remote controlled lighting equipment such as Golight wireless remote controlled spotlights.
The primary input on this unit accepts either 120 or 240 VAC at 50/60 Hz depending upon configuration, and is connected through a 5 foot SOOW cord with industrial cord cap. Output from this unit delivers 12 Volts at 83 amps or 24 Volts at 41 amps DC depending upon the unit’s configuration. This unit is preconfigured for specific current input and output before shipping. Please select your desired current voltages from the drop down boxes below when ordering.
Some power transformers produce significant radio frequency interference which can cause erratic operation of radio controlled devices. This NEMA 3R encapsulated transformer is ideal for use with wireless remote controlled Golight models GL-3049H, RCL360HID and any other equipment that relies on radio receivers for remote operation when mounted 2 feet or more from such equipment. This heavy duty unit measures 25†tall x 14†wide x 11†deep, is surface mountable, and provides a reliable and low interference low voltage power solution for equipment requiring 12 or 24 VDC.
We can build transformers to your Specifications. If this model does not meet your needs, please contact us at 1(647) 254-9757 or
Contact info@purilite.ca
.
Specifications
Line In:
Line Out: 12VDC -24VDC
KVA: 1
Rating: NEMA 3R Enclosure
Dimensions: 25"H x 14"W x 11"D
Wiring: Input- 30` SOOW Cord Output- 12` SOOW Cord
Mounting: Surface Mount
