1 kVA Outdoor Rated Transformer - 120/240VAC Input - 24 Volt Output - General Area Cord Cap

LARSON ELECTRONICSSKU: PL3-TX-1000-WM-2XLV
filler

Price:
Sale price$4,708.00

Description

Specifications / Additional Information
TX-1000-WM-2XLV Power Transformer
Line In:120/240V AC @ 50/60Hz
Line Out: 12V DC or 24V DC
KVA: 1
Rating: NEMA 3R Enclosure
Dimensions: 18.125"H x 12"W x 9.373"D
Mounting: Surface Mount Flange Brackets
Line In Wiring: 10` 16/3 SOOW Cable w/ General Area Cord Cap
Cord Cap Options: 5-15 Straight, 6-15 Straight, L5-15 Twist, L6-15 Twist, UK BS1363, Intl. Schuko, Pigtail
Line Out Wiring: 10` 10/3 SOOW Cable to Jbox - (2) 3` Whips from Jbox w/ Blunt Cut Ends
Line Out Termination: Blunt Cut Ends
' Product Overview '

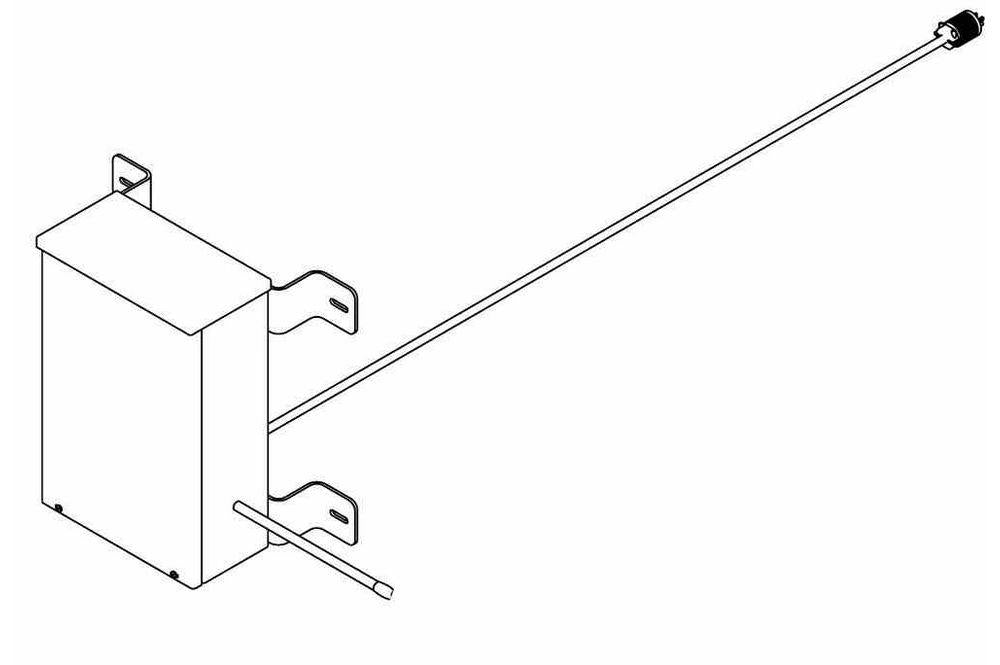

Made in the USA The Larson Electronics TX-1000-WM-2XLV Wall Mount 1kVA power transformer converts 110-120/220-240V AC at 50/60hz to 12 or 24V DC and is ideal for powering 12 or 24 volt based lights and equipment. This 1kVA, coil based power transformer accepts 120-240V AC electrical current and provides 12 volts at 83 amps or 24 volts at 41 amps via a 10` SOOW cord depending upon the chosen configuration. The output cord is terminated with blunt cut ends to allow operators to wire their own connectors. No amphenol connectors are included with this transformer. The transformer in this unit is encased within a weatherproof NEMA 3R rated enclosure and produces minimal interference with the wireless radio receivers often found in remote controlled lighting equipment such as Golight wireless remote controlled spotlights. The primary input on this unit accepts either 120 or 240V AC at 50/60 Hz depending upon configuration, and is connected through a 10` SOOW cord terminated in a choice of general area cord cap. Output is provided by 10` 10/3 SOOW cable to a waterproof junction box. The junction box has two 3` whips terminated in blunt cut ends, providing 41.5 amps at 12V DC or 20.5 amps at 24V DC. This unit is preconfigured for specific current input and output before shipping. Please select your desired current voltages from the drop down boxes below when ordering.
Click Photos to Enlarge
5-15 Straight Blade Plug 15 Amp / 125V Rated L5-15 Twist Lock Plug 15 Amp / 125V Rated L6-15 Twist Lock Plug 15 Amp / 250V Rated
UK BS1363 Straight Blade Plug 13 Amp / 250V Rated / Internal Fuse Intl Schuko 2-Pin Plug 16 Amp / 250V Rated / Grounded Flying Leads / Pigtail Wires
Wiring/Plug: This wall mount power transformer is equipped with 10 feet of 16/3 chemical and abrasion resistant SOOW cord that is fitted with an industrial grade cord cap for easy connection to common wall outlets. Plug options include standard 5-15 15 amp straight blade plug for 110V wall outlets with ground, standard 6-15 15 amp straight blade plug for 220-240V wall outlets with ground, NEMA L5-15 15 amp twist lock plug for 125V twist lock outlets, NEMA L6-15 15 amp twist lock plug for 240V twist lock outlets, British BS1363 13 amp fused 3-blade plug for United Kingdom outlets, or a two pin 16 amp rated Schuko plug with ground contact and socket for European outlets up to 250V. Alternatively, we can provide flying leads with no plug for hard wire applications or for operators who prefer to wire in user provided cord caps. Please choose pigtail option below for flying leads with no plug. Some power transformers produce significant radio frequency interference which can cause erratic operation of radio controlled devices. This NEMA 3R encapsulated transformer is ideal for use with wireless remote controlled Golight models GL-3049H, RCL360HID and any other equipment that relies on radio receivers for remote operation when mounted 2 feet or more from such equipment. This heavy duty unit measures 18.125" tall by 12" wide by 9.373" deep, is surface mountable, and provides a reliable and low interference low voltage power solution for equipment requiring 12 or 24V DC. We can build transformers to your specifications. If this model does not meet your needs, please contact us at 1-800-369-6671 or .
