500 VA Portable Transformer - 120 or 240 V AC to 12 or 24 V AC or DC - NEMA 3R
500 VA Portable Transformer - 120 or 240 V AC to 12 or 24 V AC or DC - NEMA 3R
| TX-40-120-1224-WP Power Transformer | Quick Summary |
| Line In Cable: 10` SOOW Cable Terminated in Cord Cap | Converts 120 V or 240 V to 12 or 24 VAC or DC |
| Primary Voltage: 120 or 240 VAC @ 50/60Hz | NEMA 3R Weatherproof |
| Transformer: 500 VA | Overload Protection |
| Secondary Voltage: 12 or 24 V AC or DC | Short Circuit Protection |
| Max Wattage: 500 W | CSA C22.2 14-13 |
| Max Input Amps: 4.17 A @ 120 V, 2.08 A @ 240 V | UL 508A |
| Max Output Amps: 41.67 A @ 12 V, 20.84 A @ 24 V | |
| Wiring: 10` 16/3 SOOW w/ General Area Cord Cap | |
| Cord Cap Options: 5-15, 6-15, 5-20, 6-20, L5-15, L6-15, L5-20, L6-20, BS1363, Schuko, or Pigtail | |
| Dimensions: 18"H x 12"L x 5"W | |
| Weight: 24 lb | |
| Mounting: Carrying Handle/Surface Mount | |
| *All grounding shall comply with state and local codes and meet the minimum requirements of the National Electronic Code section 250* |
Made in the USA

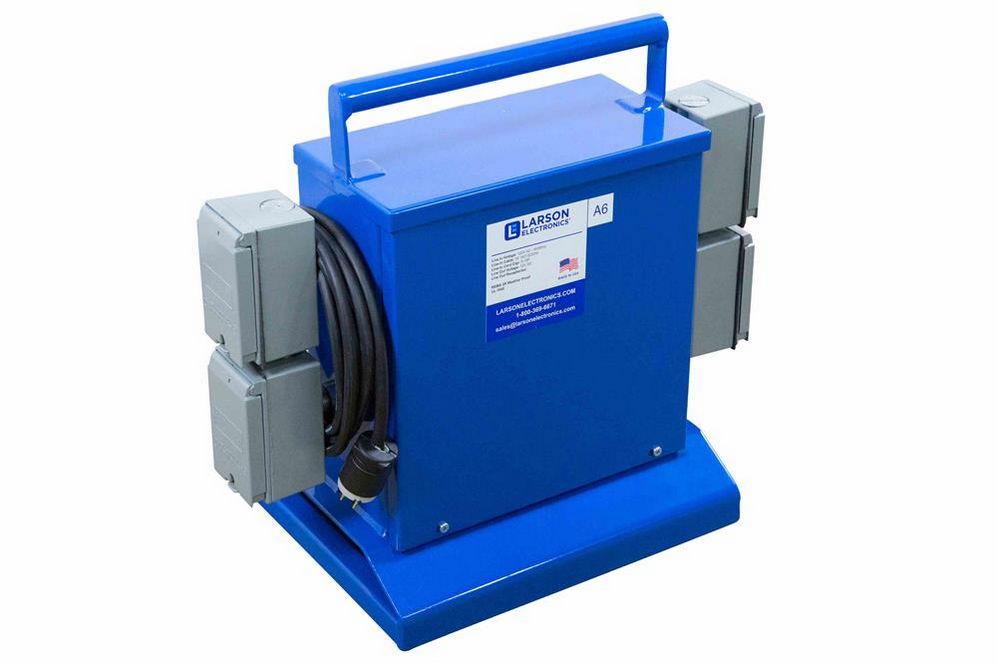

The TX-40-120-1224-WP from Larson Electronics is a Portable Transformer that converts 120 or 240 VAC, 50/60hz to 12 or 24 VAC or DC. This compact power distribution transformer is designed for portability and convenience as well as durability and includes an elevated base platform for protection from standing water, and weatherproof construction.
The TX-40-120-1224-WP portable power transformer distribution system from Larson Electronics is built to provide operators with a reliable source of low voltage 12 or 24 volt power in AC or DC. With overload and short circuit protection, this unit safely allows operators to power equipment up to 500 watts from a standard 120 or 240VAC power source.
This portable low voltage transformer features four, 20-amp 125V L5-20 twist-lock receptacles, which provide sealed and secure connections. To connect devices, the operator must insert the plug and twist it until it locks into place in order to energize the plug. This design provides a secure and safe connection that prevents arcing and accidental plug pullouts. The TX-40-120-1224-WP portable transformer features short circuit and overload protection. In the event of circuit overload, the unit automatically shuts down to protect the transformer from damage and restarts after 30 seconds.
|
||||||||||||||||||
