Transformer - 500 VA - Converts 120V or 240V AC to 12V or 24V AC Outlets - 2 Twist Lock Outlets

Transformer - 500 VA - Converts 120V or 240V AC to 12V or 24V AC Outlets - 2 Twist Lock Outlets

Sold by: LARSON ELECTRONICS

$3,338.00 CAD
$3,338.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications / Additional Information
TX-500VA-2XAO Power Transformer Features/Ratings
Line In: 120 V or 240 V AC @50/60Hz (2) Twist Lock Receptacles
Line Out: (2) L5-20 Receptacles 12/24 V AC
Line Out: (2) GFCI Protected 5-15 Standard Receptacles
Transformer Watts: 500
Dimensions: 12"H x 12"L x 5"W
Wiring: Input - 6' SOOW Cord w/ 5-15 Plug
Mounting: Carrying Handle/Surface Mount
Weight: 55 lb
Ratings: NEMA 3R Weatherproof
*All grounding shall comply with state and local codes and meet the minimum requirements of the National Electronic Code section 250*
' Product Overview '

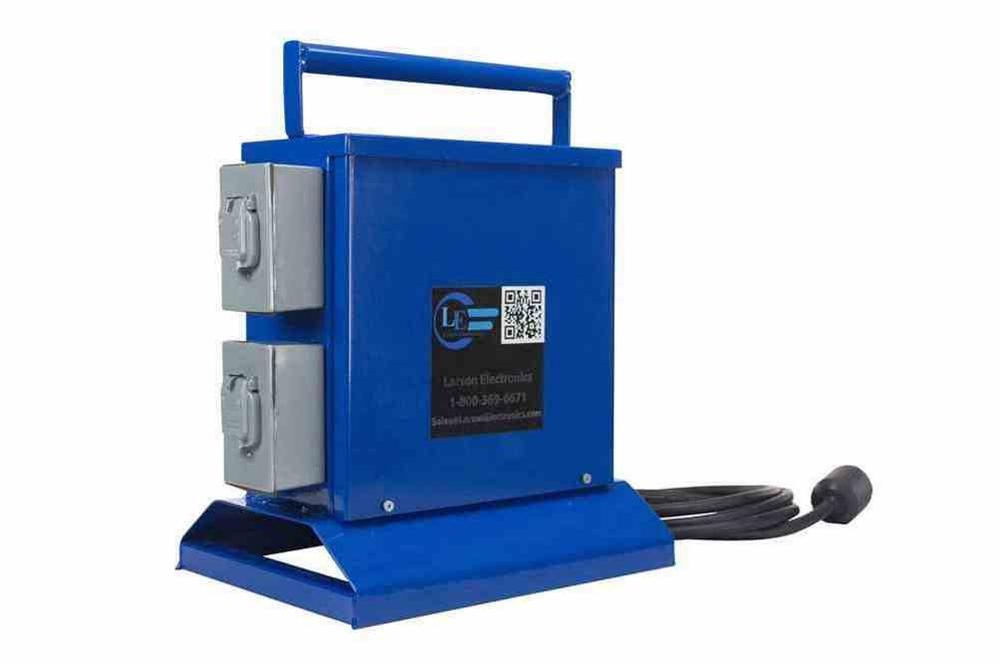

The TX-500VA-2XAO from Larson Electronics is a Power Transformer that converts 120/240 V AC at 50/60 Hz to 12/24 V AC and is ideal for powering 12/24 volt based lights and equipment. The TX-500VA-2XAO features two (2) twist lock outlets. The TX-500VA-2XAO power distribution system from Larson Electronics is built to provide operators with a reliable source of low voltage 12 or 24 volt power while also providing the versatility of allowing operation of standard voltage equipment. This compact power distribution transformer is designed for portability and convenience as well as durability and includes an integral carrying handle, elevated base platform for protection from standing water, and weatherproof construction that withstands direct water spray and wetness when the self sealing and weatherproof outlet covers are closed.
Click Photo to Enlarge
The TX-500VA-2XAO portable power distribution system provides 500 Watts and converts primary 120 V AC or 240 V AC electrical current into 12 or 24 V AC current. This means that this power distribution system can provide either 12-24 V DC or 12-24 V AC through its secondary output. The output side is equipped with two L5-20 sockets designed to accept twist lock plugs. This power transformer also incorporates an integrated adjustable voltage control which allows operators to increase the voltage levels fed to equipment from the unit to compensate for voltage drops that occur when very long length cords are used. Should operators experience drops in the intensity of illumination produced by lighting equipment because of the use of extra long cords for example, the operator can increase the voltage from 12 to 24 volts to compensate and maintain light intensity. For example, operators can use 12 volts for a 50 foot line, but can raise the voltage to 18 volts to push volatge down a 150 foot cord, so the light, for example, still receives the full 12 volts. Also included are 2 GFCI protected outlets which are compatible with 5-15 plugs, enabling operators to run standard voltage equipment and appliances as well as low voltage equipment through the twist lock connections. The TX-500VA-2XAO power distribution system ships with a 6 foot SOOW cord with standard 5-15 plug for connection to 120 VAC. For 240V applications, customers will need to specify their desired plug (additional charges may apply). Choose your desired input voltages from the drop down boxes below.
