Linkable Vapor Proof 25 Watt LED Handheld Trouble light with 25' SJOW Cord - 120-240V

LARSON ELECTRONICSSKU: PL3-VPHLED-12W-25
filler

Price:
Sale price$654.99

Description

Specifications / Additional Information
VPHLED-12W-25 Work Light Features
Lamp Type: LED Vapor Proof
Dimensions: 24"-L x 2.75"-Dia Damp Area Suitable
Weight: 3.5 lbs IP66 Rated - Sealed against dusts and water
Voltage: 120-240V AC 50/60 Hz High Output LEDs
Total Watts: 25 Watts Impact/Vibration Resistant
Total Lumens: 2800 Food Safe Polycarbonate Lens
Luminous Efficacy: 112 lm/w Made in the USA
Lamp Life: 50,000+ Hours
Color Temperature: 5000K
Color Rendering Index: >80 CRI
Beam Angle: 100°
Amp Draw: 0.21A @ 120V, 0.11A @ 240V
Power Factor: >0.90
Mounting: Thru Holes on End Caps & Back T-Slot
Housing Material: Extruded aluminum w/ rubber end caps
Lens Materials: Polycarbonate
Housing Finish: Powder Coated - Gloss Blue Toll Free: 1-800-369-6671
Wiring: 25` SJOW cord w/ Male Plug, 3` w/ Female Connector Intl: 1-903-270-1187
Cord Cap: 5-15 (110-120V), 6-15 (220-240V), L5-15 (110-120V), L6-15 (220-240V), or Pigtail (Customer provides cord caps) E-mail:
' Product Overview '

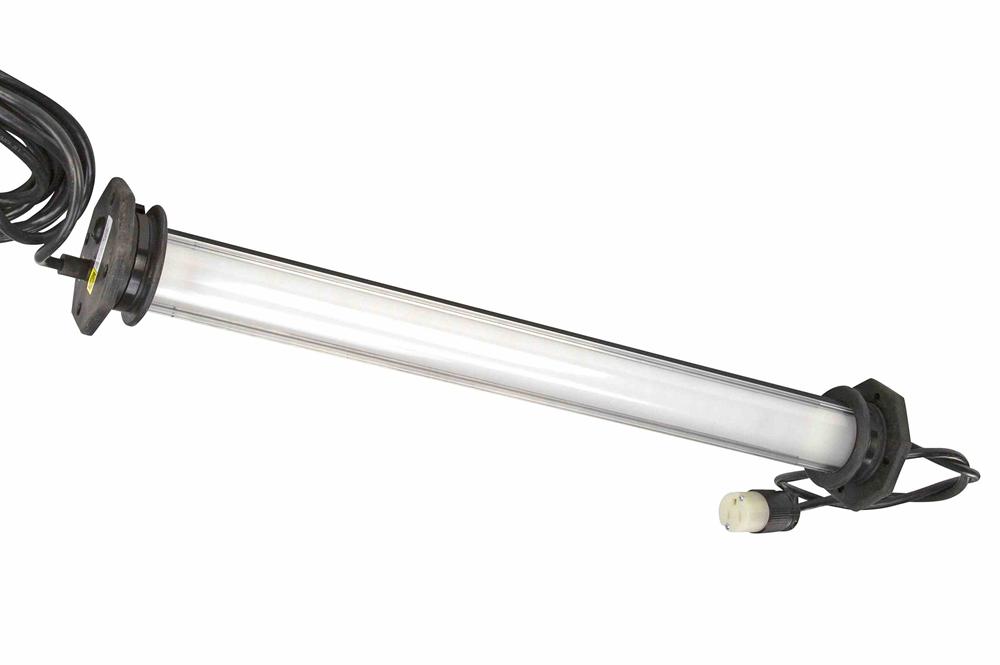

Made in Texas The Larson Electronics VPHLED-12W-25 Vapor Proof 25 Watt LED Shelter Light is vapor proof, food safe, and approved for damp locations. This LED hand light produces four times as much illumination as a 40 watt biaxial fluorescent bulb and is ideal for close quarter work, inspection activities, and food processing/handling applications. The 25 watt LED assembly in this work light from Larson Electronics produces four times as much illumination as a comparable biaxial fluorescent bulb, making it a more powerful and durable alternative to incandescent and fluorescent work lights. This LED work light comes complete with 25` of SJOW cord and a standard 5-15 straight blade plug. The VPHLED-12W-25 LED trouble light is IP66 rated, vapor proof, and suitable for food handling applications. The end caps on this unit are rubber coated to provide secure handling and protection against impacts and vibrations. A food safe polycarbonate lens provides durable protection for the powerful LED assembly. Two sliding bracket nuts on the T-slot back of the unit allows operators to attach hooks or other brackets to hang this unit overhead for use as task and general area lighting. Each end cap has four thru holes, allowing for attached hooks, chains, or ties to the light from each end cap. This LED light is safe for use in damp areas and is sealed against the intrusion of vapors.
Male and female cord caps allow for easy daisy chain connections.
Click Images to Enlarge
Unlike the glass tube design of traditional fluorescent lamps, these LED lamps have no filaments or fragile housings to break during operation. Instead of using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current applied and emitting light. The LED assembly is mounted to the extruded aluminum, with a polycarbonate lens protecting the LEDs. With LED lights, there is no warm up time or cool down time before re-striking and provide instant illumination when powered on, adding to the reliability of LED technology. By nature, LED light sources run significantly cooler than fluorescent lamps, reducing the chance of accidental burns and increased temperatures due to heat emissions. This solid state design of light emitting diodes provides a more reliable, stable, durable, and energy efficient light source over traditional fluorescent lighting. Safety within the workplace is another benefit of LED work lights and temporary lighting. All light sources produce heat. With traditional work lamps, such as incandescent and halogen light sources, the lamp reaches high surface temperatures. These surface temperatures introduce a burn risk to anyone that allows prolonged skin contact with the light source, as well as a fire hazard if a flammable material is accidentally set too close to the light source for an extended period of time. While LED fixtures do still produce heat, they are designed with heat sinks to properly disperse the heat. Each LED bulb is engineered to disperse and expel this heat quickly and efficiently, keeping the lamp cooler than traditional light sources. This LED work light operates at a lower surface temperature than a comparable model with traditional light source, and thus does not present a significant burn risk if an operator or bystander accidentally brushed up against an exposed lamp, and reduce the fire hazard should they fixture accidentally come in contact with a flammable material for a short period of time. This significantly increases the safety within the work environment. Voltage: The drivers in this unit provide the ability to automatically monitor and adjust input current to maintain the correct LED voltage levels regardless of input levels across a specific range. These light towers can operate on current ranging from 110 to 240V AC 50/60 Hz without any modifications to the light necessary as a result. This ability to sense and adjust input current also provides protection against voltage spikes and drops that can occur in electrical systems which would otherwise result in burning up or premature LED failure without it. Commonly found voltages include 110V 50Hz, 110V 60Hz, 115V 50Hz, 115V 60Hz, 120V 50Hz, 120V 60Hz, 220V 50 Hz, 230V 50 Hz, 230V 60Hz, and 240V 60Hz. Appropriate cord caps are requires to operate on desired voltage.
Click Photos to Enlarge
5-15 Straight Blade Plug 15 Amp / 125V Rated L5-15 Twist Lock Plug 15 Amp / 125V Rated L6-15 Twist Lock Plug 15 Amp / 250V Rated
Wiring and Plug: This unit is designed for daisy chain connections, with a male cord cap on one end and a female cord cap on the other. 25` of 16/3 SJOW cable is provided for line in cable, and 3` for line out cable. Operators can connect multiple units end-to-end for up to thirty units on a single 10 amp circuit. Cord cap options include 5-15P and 5-15C straight blade plug and connector for 110-120V, 6-15P and 6-15C straight blade plug and connector for 220-240V, NEMA L5-15 twist lock plug and connector for 110-120V, or NEMA L6-15P and L6-15C twist lock plug and connector for 220-240V. Alternatively, we can provide flying leads with no plug for hard wire applications or for operators who prefer to wire in user provided cord caps. Please choose pigtail option below for flying leads with no plug. Additional cord cap options are available upon request. The 50,000+ hour operating life and cool operation of the LEDs, rugged aluminum housing, polycarbonate lens, and high output of this lamp make it an ideal work light for operators looking to upgrade from fragile fluorescent and hot running incandescent work lights. This LED work light will far out last incandescent and fluorescent lamps, has none of the high heat that can cause burns from accidental contact with a hot drop light housing, and has no ballast like fluorescent models. Combined with its high light output, these features result in a work light that outclasses traditional handlamps by every measure of performance.
Made in USA Quality LED Benefits
1. SJOW cord 2. Damp Area Suitable 3. Rubberized Housing End caps/Bump Guards 4. Impact/Vibration Resistant. 5. Hight Output LEDs. 6. Vapor Proof - IP66 Sealed against dusts and water 7. Industrial Grade Rugged Construction. 8. Food Grade Safe - No Glass 9. Multiple Mounting Options 10. Long LED Operational Life. 4x illumination of a biaxial fluorescent bulb. Cooler running operation. 50,000 Hour LED lamp operational life. Resistant to impacts/vibrations. Low power consumption. Better light quality than incandescent bulbs. No fragile glass or toxic mercury. Good Color Rendering Bright and even output.
