Incandescent Hand Lamp - Inline Transformer - Vapor Proof - VAC to VDC - 25' SOOW Cord

LARSON ELECTRONICSSKU: PL3-VPL-120X12-25
filler

Price:
Sale price$1,121.99

Description

Specifications / Additional Information

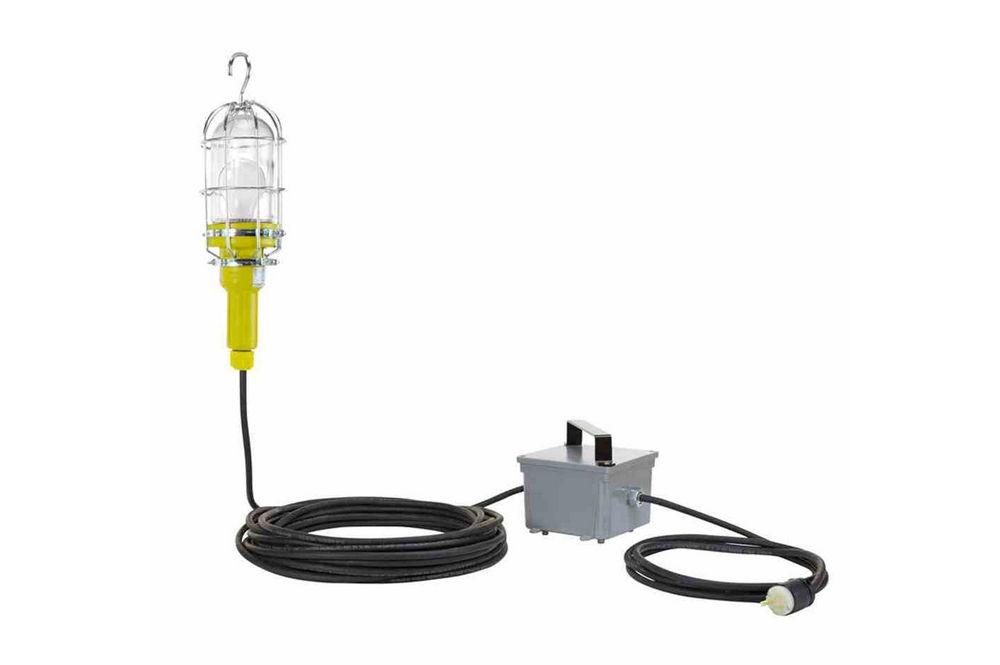

VPL-120X12-25 Vapor Proof Hand Lamp
Lamp Type: Incandescent
Listing: United States
Dimensions: 4.5" OD x 13.5" L x 2" OD Handle
Weight: 15 lbs
Input Voltage: Input 120V AC, 220V AC
Output Voltage: Output 12V DC, 24V DC
Total Watts: 60W, 75W or 100W - Depending on the Wattage Selection
Ambient Operating Temperature - 20 ° to + 40 °
Housing Material: Stainless Steel Mesh Guard, Rubberized Handle
Lens Material: Tempered Glass Globe
Mounting: Stainless Steel Hook
Wiring: 25’ 16/3 SOOW Cord, Inline Transformer with 5’ 16/3 SOOW Cord
Cord Cap: General Area Cord Cap Toll Free: 1-800-369-6671
Cord Cap Options: 5-15 Straight, 6-15 Straight, L5-15 Twist, L6-15 Twist. UK BS1363, Intl. Schuko, Pigtail Intl: 1-903-270-1187
Amperage: 0.83 @ 120V E-mail:
' Product Overview '
Marine grade construction, an industrial 25’ cord, and a stainless steel hook ensure the VPL-120X12-25 Vapor Proof Hand Lamp is ready for long-lasting, reliable performance no matter where the job takes you. A sturdy vapor seal preventing the intrusion of moisture and water combined with a steel mesh guard and rubberized handle allow this fixture to withstand rough handling and rugged outdoor conditions. Equipped with an inline transformer system, this portable work light is available in 120V AC or 220V AC input, 12V DC or 24V DC output, as well as 60W, 75W or 100W watts. Light Features: The VPL-120X12-25 portable hand lamp is the preferred light choice for operators seeking a heavy duty yet simple, no-frills lighting solution that gets the job done. The VPL-120X12-25 Vapor Proof Hand Lamp is constructed with marine grade parts designed to withstand the rough weather and corrosive conditions associated with marine environments. The solid vapor seal keeps water from entering the light head or handle. A tempered glass dome and stainless steel mesh guard protect the bulb while the rubberized handle provides operators with a firm gripping surface. A stainless steel mounting hook and an extra-long 25` cord give operators versatile hanging and connection options as well as allowing for unrestricted movement around the workspace. When hung overhead, the VPL-120X12-25 provides a full 360° of illumination that is comparable to the light available directly beneath a street lamp. Mounting: The VPL-120X12-25 is mounted using the stainless steel hook.
Click Photos to Enlarge
5-15 Straight Blade Plug 15 Amp / 125V Rated L5-15 Twist Lock Plug 15 Amp / 125V Rated L6-15 Twist Lock Plug 15 Amp / 250V Rated
UK BS1363 Straight Blade Plug 13 Amp / 250V Rated / Internal Fuse Intl Schuko 2-Pin Plug 16 Amp / 250V Rated / Grounded Flying Leads / Pigtail Wires
Wiring/Power: This LED hand lamp is equipped with 25 feet of 16/3 chemical and abrasion resistant SOOW cord that is fitted with an industrial grade cord cap for easy connection to common wall outlets. Plug options include standard 5-15 15 amp straight blade plug for 110V wall outlets with ground, standard 6-15 15 amp straight blade plug for 220-240V wall outlets with ground, NEMA L5-15 15 amp twist lock plug for 125V twist lock outlets, NEMA L6-15 15 amp twist lock plug for 240V twist lock outlets, British BS1363 13 amp fused 3-blade plug for United Kingdom outlets, or a two pin 16 amp rated Schuko plug with ground contact and socket for European outlets up to 250V. Alternatively, we can provide flying leads with no plug for hard wire applications or for operators who prefer to wire in user provided cord caps. Please choose pigtail option below for flying leads with no plug. The inline transformer system is equipped with 5` of 16/3 SOOW cord. Available input voltages for are 120V AC and 220V AC. Available output voltages are 12V DC and 24V DC. OSHA requires that the light is plugged into a GFI protected outlet. Suggested Applications: The VPL-120X12-25 offers versatile lighting solutions suitable for marine environments as well as for general heavy duty outdoor applications.
Lamp Features
1. 25` 16/3 SOOW cord 2. Inline transformer system with 5` 16/3 SOOW cord 3. Stainless steel mesh guard 4. Marine grade construction 5. Vapor seal prevents ingress of water and moister 6. Rubberized handle provides superior grip 7. Stainless steel hook for flexible mounting 8. Listed for the United States
