Non-Metallic Vaporproof Fluorescent Light for Corrosion Resistant Requirements (Saltwater)

LARSON ELECTRONICSSKU: PL3-VPL-CRNM-48-2L
filler

Price:
Sale price$773.99

Description

Specifications / Additional Information
VPL-CRNM-48-2L - Vaporproof Fluorescent Light Ratings/Approvals
Lamp Type: 4` Fluorescent UL 1598A Marine Type (Salt water)
Surface Dimensions: 49.975"-L x 7.975"-W x 5.1"-H California Title 24 Compliant
Pendant Dimensions: 49.731"-L x 7.205"-W x 5.425"-H Listed for Canada
Weight: 8 Lbs T4 Temperature Rating
Voltage: Universal 120-277V AC 50/60Hz Non-Metallic Construction
Total Watts: 108W (T5HO), 64W (T8) or 120W (T12HO Meets US Coast Guard specifications
Total Lumens: 10,000 (T5HO), 5900 (T8), or 8100 (T12HO)
Lamp Life (Hours): 20,000 (T5HO), 24,000 (T8), 12,000 (T12HO)
Efficiency (Lumens per Watt): 92 (T5HO), 92 (T8), 67.5 (T12HO)
Color Temp: 5000K (T5HO) or 4100K (T5HO, T8, T12HO)
Beam Angle: 160° Horizontal, 116.5° Vertical
Mounting: Flange Type Surface Bracket or Pendant Hub
Wiring Hub: 3/4" NPT
Materials: Non-Metallic Housing, Acrylic Lens
Wiring Hub:1/2" or 3/4" NPT
Ambient Temp Range: -20°C to +70°C
Minimum Operating Temp: -30°C
Maximum Case Temp: 90° C
*Wattage totals are lamps only and may vary with different lamps.
' Product Overview '

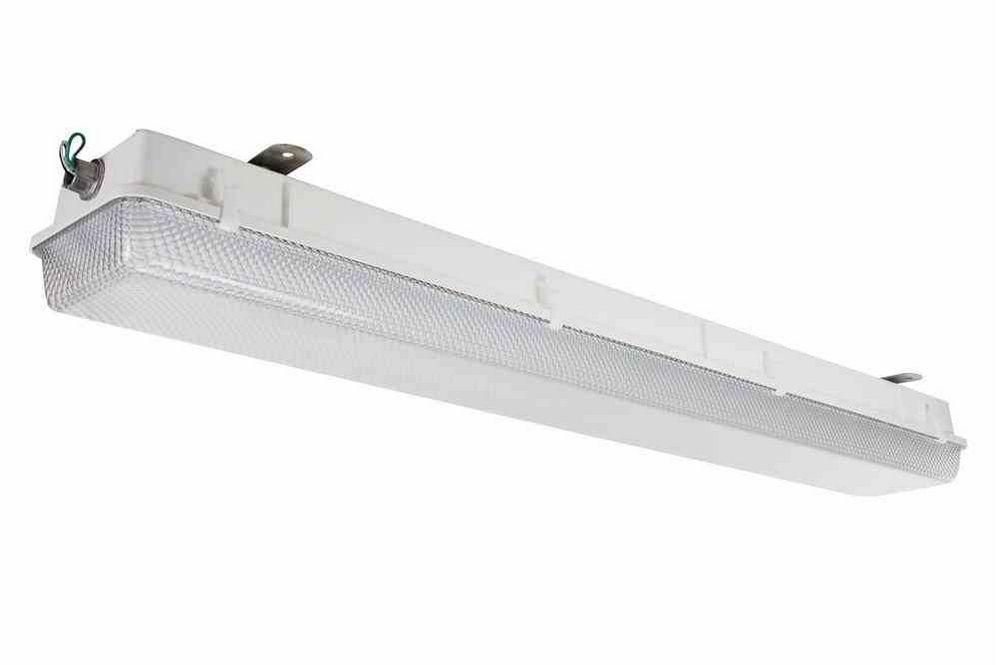

Made in the USA The VPL-CRNM-48-2L from Larson Electronics is a Vaporproof Fluorescent Light Fixture that has a T4C temperature rating and is specifically designed to handle the rigors of wet and corrosive marine environments. The VPL-CRNM-48-2L features a non-metallic housing. The VPL-CRNM-48-2L weatherproof/vaporproof fluorescent light fixture is designed for use in wet areas and saltwater-marine environments where corrosion resistance is critical to equipment longevity and safety. This non-metallic fixture is constructed of non-corrosive materials including a polyester housing reinforced with glass fiber, a poured in gasket for reliable sealing and an impact resistant acrylic diffuser. Eight corrosion resistant plastic latches secure the lamp cover to the housing and provide a firm lock against the poured in seal to prevent drips and water intrusion. The VPL-CRNM-48-2L carries a UL 1598A outdoor marine rating and meets US Coast Guard specifications.
Click Photo to Enlarge
NOTE ON LAMPS: This fixture comes equipped with two T5HO, T8, or T12HO fluorescent lamps. The F54-T5/850/HO 54 Watt lamps produce 5,000 lumens per bulb for 20,000 lumens per fixture, a 5000 or 4100 Kelvin color and a 20,000 hour rated service life. The F32-T8/841 32 watt lamps produce 2950 lumens per bulb for 5900 lumens per fixture, a 4100 Kelvin color and a 24,000 hour rated service life. The F48-T12/HO 60 watt lamps produce 4050 lumens per bulb for 8100 lumens per fixture, and a 12,000 hour rated service life. The VPL-CRNM-48-2L has an electronic universal voltage ballast and operates on a range of voltages from 120V to 277V AC 50/60Hz including: 120 Volt 60 HZ, 220 Volt 50 HZ, 240 Volt 60 HZ and 277 Volts 60 HZ.
Surface Mount (Standard)
Flanged Surface Mount Brackets: Flange type stainless steel mounts attached at each end of the fixture enables it to be simply secured to any surface. The mounts provide some shock absorbency protection while enabling the user to simply mount the fixture with the through-hole taps that protrude on each side of the fixture. The mounting holes are 38.25" on center apart along the top of this hazardous location light. The mounting holes are 3.9" and 7.2" on center across the top of the light.
Pendant Mount (Optional)
Suspension/Pendant Mounting: Pendant mount fixtures hang from the ceiling and are suspended by rigid pipe. Each fixture is equipped with either two 1/2" or 3/4" NPT hubs, one on each end of the fixture. Operators bring rigid pipe down to the threaded mounting hubs. Wiring is fed down through the rigid pipe to one of the NPT hubs and tied in to the fixture`s lead wires, completing the electrical connection. The remaining pendant hub provides support for the opposite end of the fixture. Suggested Applications: The VPL-CRNM-48-2L is designed for marine wet and damp locations, where corrosion resistant fluorescent lights are required. This includes petrochemical facilities, lubrication pits, oil drilling rigs, crew quarters, solvent/cleaning areas, water treatment areas, processing plants and marine loading docks.
Made in USA Quality Lamp Options
1. Each unit dialectrically tested. 2. Fixture arrives assembled and lamped to reduce installation time and cost. Flange type stainless steel mounts attached at each end of the fixture enables it to be simply secured to any surface. 3. Fixture housing constructed of glass fiber reinforced polyester. 4. Relamping done via 8 plastic snap locking latches, which enable the operator to remove the door and access the lamps. 5. Lamp cover-diffuser constructed of high impact acrylic for corrosion resistance and lamp protection. 6. 1/2" or 3/4", threaded access hole for wiring conduit. F54-T5/850/HO – 54 Watt, 5000 lumens per bulb, 20,000 hours life, 5000 Kelvin color F32-T8/841 – 2950 lumens per bulb, 24,000 hours life, 4100 Kelvin color F48-T12/HO – 4050 lumens per bulb, 12,000 hours life, 4100 Kelvin color
