100 Watt Incandescent Vapor Proof Droplight / Handlamp - 80' 16/3 SOOW Cord - NEMA 4X

LARSON ELECTRONICSSKU: PL3-VPLHL-100W-80
filler

Price:
Sale price$717.99

Description

Specifications / Additional Information
VPLHL-100W-80 Vapor Proof Incandescent Drop Light Ratings/Approvals
Lamp Type: Incandescent Bulb Listed for United States and Canada
Dimensions: 13"L x 4.5"Dia (Head) x 2"Dia (Handle) NRTL Certified to 153
Total Weight: 13.84 lbs Vaporproof
Lamp Weight: 5 lbs NEMA 4X
Voltage: 120V AC 60Hz, 220V AC 60Hz or 240V AC 60Hz
Total Watts: 100 watts, 75 watts or 60 watts
Lumens: 1000 (100W), 750 (75W), or 600 (60W)
Luminous Efficacy: 10 Lm/W
Lamp Life: 4,000 Hours
Color Temperature: 2700K
Color Rendering Index: 100 CRI
Beam Angle: Omni-Directional
Ambient Operating Temperature: -20°C to +50°C
Housing Material: Aluminum and Plastic
Globe Material: Tempered Glass
Mounting: Hanging Hook / Handheld
Wiring: 80` 16/3 AWG SOOW Cable Toll Free: 1-800-369-6671
Cord Cap: 5-15, 5-20, L5-15, L5-20, BS1363, Schuko, or Pigtail Intl: 1-903-270-1187
E-mail:
' Product Overview '

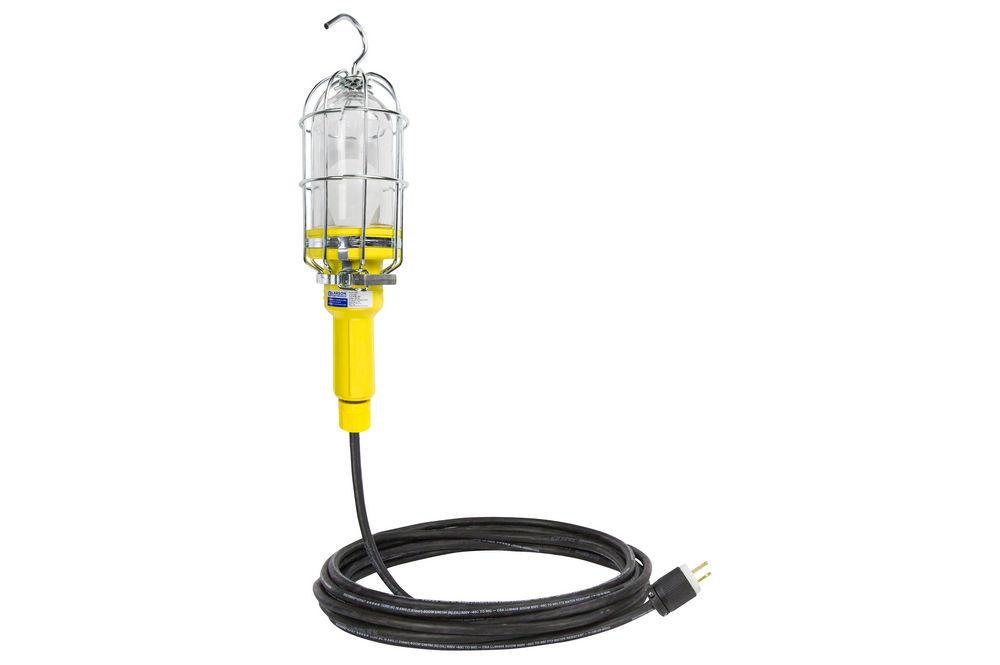

Made in the USA The Larson Electronics VPLHL-100W-80 100 watt Vaporproof Trouble Light / Hand Lamp / Drop Light light with 80` cord is both waterproof and vapor proof and constructed and certified to prevent the intrusion of water and/or moisture into the handle and/or head when used as instructed in wet locations. This unit is NRTL Certified to UL 153 and NEMA 4X. This 100 watt incandescent vaporproof work light from LarsonElectronics.com comes complete with a 80` long 16/3 SOOW cable for long range and convenient operation. This waterproof and vaporproof drop light features a rubberized, insulated handle to provide a safe and secure grip and a stainless steel wire guard enclosure to protect the glass dome. Vaporproof lights are constructed and NRTL Certified to UL 153 standards, NEMA 4X rated, and designed to prevent water and/or moisture to enter the handle and/or head when used as instructed in wet locations. Rubberized handle improves operators grip and stainless steel mesh guard enclosures protects glass dome. Stainless hook enables operator to hang this task light overhead. Effective wet area task lighting that illuminates 5 feet in all directions with 3 foot candles of light, which is approximately the same amount of light available directly under a street light. Lamp: Each vapor proof lamp is equipped with a 60 watt, 75 watt, or 100 watt rough service lamp that is protected by a tempered glass globe. Please note, incandescent lamps are being phased out. Larson Electronics offers a line of vapor proof LED drop lights equipped with industrial grade LED lamps with higher light coverage than standard 100 watt rough service lamps. Voltage: This vapor proof drop light is equipped with an incandescent lamp and available in 120V, 220V, or 240V AC 50/60Hz configurations.
Click Photos to Enlarge
5-15 Straight Blade Plug 15 Amp / 125V Rated L5-15 Twist Lock Plug 15 Amp / 125V Rated L6-15 Twist Lock Plug 15 Amp / 250V Rated
UK BS1363 Straight Blade Plug 13 Amp / 250V Rated / Internal Fuse Intl Schuko 2-Pin Plug 16 Amp / 250V Rated / Grounded Flying Leads / Pigtail Wires
Wiring/Plug: This vapor proof hand lamp is equipped with 80` of 16/3 chemical and abrasion resistant SOOW cord that is fitted with an industrial grade cord cap for easy connection to common wall outlets. Plug options include standard 5-15 15 amp straight blade plug for 110V wall outlets with ground, standard 6-15 15 amp straight blade plug for 220-240V wall outlets with ground, NEMA L5-15 15 amp twist lock plug for 125V twist lock outlets, NEMA L6-15 15 amp twist lock plug for 240V twist lock outlets, British BS1363 13 amp fused 3-blade plug for United Kingdom outlets, or a two pin 16 amp rated Schuko plug with ground contact and socket for European outlets up to 250V. Alternatively, we can provide flying leads with no plug for hard wire applications or for operators who prefer to wire in user provided cord caps. Please choose pigtail option below for flying leads with no plug.
Lamp Features
Lamp Rubberized Handle No Ballast 80` 16/3 SOOW Cable Stainless Steel Swivel Hook Waterproof/Vapor Proof NRTL Certified to UL 153  NEMA 4X
