10 Watt Vapor Proof (Waterproof) LED Drop Light - Inline Stepdown Transformer - 120/277V to 24V -50'


Sale price$923.99


Specifications / Additional Information
VPLHL-10WLED-24I-50 Vapor Proof LED Drop Light Ratings
Listing: United States Waterproof / Vapor Proof
Lamp Type: LED 50,000 LED Lamp Life
Lamp Dimensions: 13"-L" 4.5"-Dia (Head) 2"-Dia (Handle) Multiple Lamp Color Options
Weight: 15 lbs 120/277V Stepped Down to 24V DC
Input Voltage: 100-277V AC, 50/60Hz / 127-431V DC Encapsulated Stepdown Transformer
Output Voltage: 24V DC Multiple Plug Options
Total Watts: 10W Made in the USA
Total Lumens: 1,050
Luminous Efficacy: 105 Lm/W
Lamp Life: 50,000+ Hours
Color Temp: 6000K, Red, Blue, Green, or Amber
Color Rendering Index: 80 CRI (White)
Beam Angle: 360°
Lighting Configuration: Flood Pattern
Power Efficiency: >95%
Power Factor: 0.992
Ambient Operating Temp Range:-50° C to +75°C
Housing Material: Rubber
Guard Material: Galvanized Steel
Globe Material: Hardened Borosilicate Glass
Mounting: S Hook
Wiring (Lamp to Transformer): 50` 16/3 AWG SOOW Cable
Transformer: 120/277V to 24V Stepdown - Encapsulated Toll Free: 1-800-369-6671
Wiring (Transformer to Cord Cap): 10` 16/3 AWG SOOW Cable Intl: 1-903-270-1187
Cord Cap: 5-15, 6-15, 5-20, 6-20, L5-15, L6-15, L5-20, L6-20, BS1363, Schuko, or Pigtail E-mail:
' Product Overview '

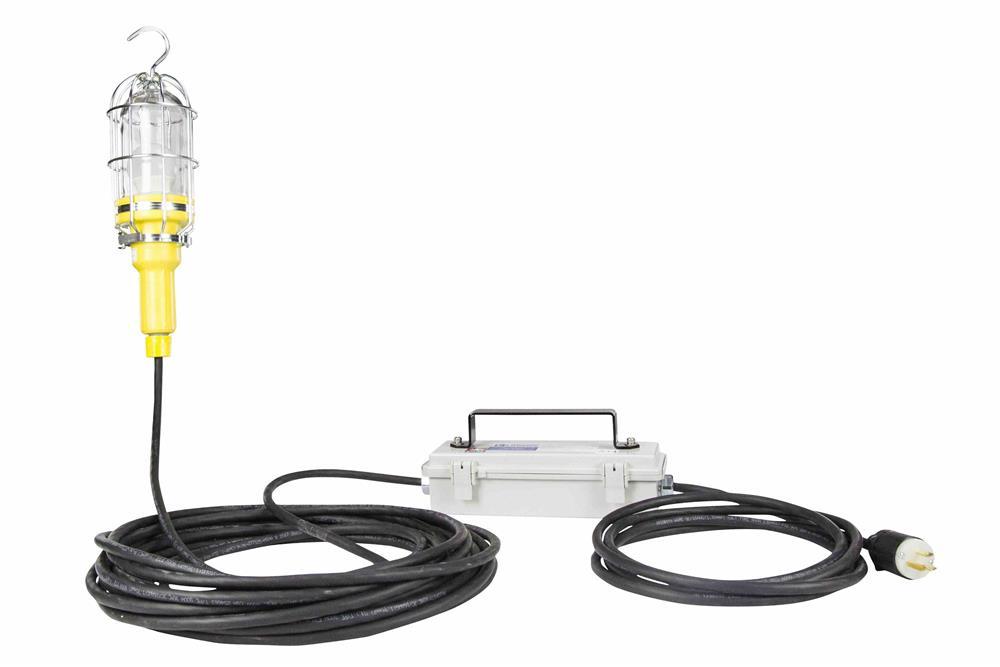

Made in Texas The Larson Electronics VPLHL-10WLED-24I-50 LED Trouble Light / Hand Lamp / Drop Light is both waterproof and vapor proof and constructed and certified to prevent the intrusion of water and/or moisture into the handle and/or head when used as instructed in wet locations. This vaporproof handlamp operates on 120/277V AC 50/60 Hz stepped down to 24V DC via an encapsulated inline stepdown transformer. This 10 watt, LED work light from LarsonElectronics.com produces 1050 lumens and comes complete with a 50 foot long 16/3 SOOW cable leading to an encapsulated stepdown transformer for long range and convenient operation. This waterproof and vapor proof drop light features a rubberized, insulated handle to provide a safe and secure grip and a galvanized steel wire guard enclosure to protect the glass dome. These LED drop lights improve on the desirable qualities of similar incandescent models with higher foot candle light output, cooler operation and better light quality, and are ideal for use in wet areas and close work. The cool operation, good light color and evenness of coverage makes these lights ideal for a wide variety of close quarter work and inspection activities.
The 10-watt LED lamp used in this unit produces nearly 3 times the illumination of incandescent lamps as measured in foot candles, at less than 1/10th of the electricity usage and without the associated heat. This LED drop light runs at operating temperatures of 55° F, greatly reducing the chances of accidents or burns commonly associated with incandescent drop lights. This lamp has no ballast, which reduces lamp weight, a steel globe guard, and a stainless steel hook for easy overhead mounting. The solid state LED bulb has no filament, making it resistant to damage from impacts and dropping. This drop light come standard with a 6000K cool white LED lamp. Other color options include red, amber, blue, and green. Voltage: The encapsulated transformer equipped with this unit provide the ability to automatically monitor and adjust input current to maintain the correct LED voltage levels regardless of input levels across a specific range. These light towers can operate on current ranging from 90 to 305V AC or 127 to 431V DC and step it down to 24V DC without any modifications necessary as a result. This ability to sense and adjust input current also provides protection against voltage spikes and drops that can occur in electrical systems which would otherwise result in burning up or premature LED failure without it.
Click Photos to Enlarge
5-15 Straight Blade Plug 15 Amp / 125V Rated L5-15 Twist Lock Plug 15 Amp / 125V Rated L6-15 Twist Lock Plug 15 Amp / 250V Rated
UK BS1363 Straight Blade Plug 13 Amp / 250V Rated / Internal Fuse Intl Schuko 2-Pin Plug 16 Amp / 250V Rated / Grounded Flying Leads / Pigtail Wires
Wiring: The VPLHL-10WLED-24I-50 vaporproof task light is universal voltage and configured to operate on high voltage stepped down to low voltage via an inline transformer. The encapsulated AC to DC transformer steps 120-277V AC down to 24V DC. This transformer has 50` of 16/3 oil and chemical resistant SOOW cable on the output side that connects the vapor proof LED light to the stepdown transformer, and 10` of 16/3 SOOW cable on the input side of terminated in an industrial grade cord cap. The inline transformer must be plugged in outside of the hazardous location.  Plug: Plug options include standard 5-15 15 amp straight blade plug for 110V wall outlets with ground, standard 6-15 15 amp straight blade plug for 220-240V wall outlets with ground, NEMA L5-15 15 amp twist lock plug for 125V twist lock outlets, NEMA L6-15 15 amp twist lock plug for 240V twist lock outlets, British BS1363 13 amp fused 3-blade plug for United Kingdom outlets, or a two pin 16 amp rated Schuko plug with ground contact and socket for European outlets up to 250V. Alternatively, we can provide flying leads with no plug for hard wire applications or for operators who prefer to wire in user provided cord caps. Please choose pigtail option below for flying leads with no plug. This vapor proof LED work light can be used as an overhead light, drop light, and just about anywhere portable and economical yet powerful illumination is needed.
Lamp Features
10 watt LED Lamp 50,000 hour service life Rubberized Handle Stainless Steel Swivel Hook Waterproof/Vapor Proof 50` 16/3 SOOW Cord Inline Encapsulated Stepdown Transformer 10` 16/3 SOOW Cord Industrial Grade Plug
