10 Watt LED Vapor Proof Droplight / Handlamp - 75' 14/3 SOOW Cord - NEMA 4X


Sale price$893.99


Specifications / Additional Information
VPLHL-7WLED-14.3-75 Vapor Proof LED Drop Light Ratings/Approvals
Lamp Type:  A19 LED Bulb Listed for United States and Canada
Dimensions: 13"L x 4.5"Dia (Head) x 2"Dia (Handle) NRTL Certified to UL 153
Total Weight: 15.35 lbs Vaporproof
Lamp Weight: 5 lbs NEMA 4X
Voltage: 120-277V AC 50/60 Hz , 11V, or 25V AC/DC 50,000 Hour LED Lamp Life
Total Watts: 10W
Lumens: 1050
Luminous Efficacy: 105 Lm/W
Lamp Life: 50,000 Hrs
Color Temperature: 5600K
Color Rendering Index: >80 CRI
Beam Angle: Omni-Directional
Power Efficiency: >90%
Power Factor: >0.9
Ambient Operating Temperature: -50°C to +65°C
Mounting: Hanging Hook / Handheld
Wiring: 75` 14/3 AWG SOOW Cord Toll Free: 1-800-369-6671
Cord Cap: 5-15, 5-20, L5-15, L5-20, BS1363, Schuko, or Pigtail Intl: 1-903-270-1187
' Product Overview '

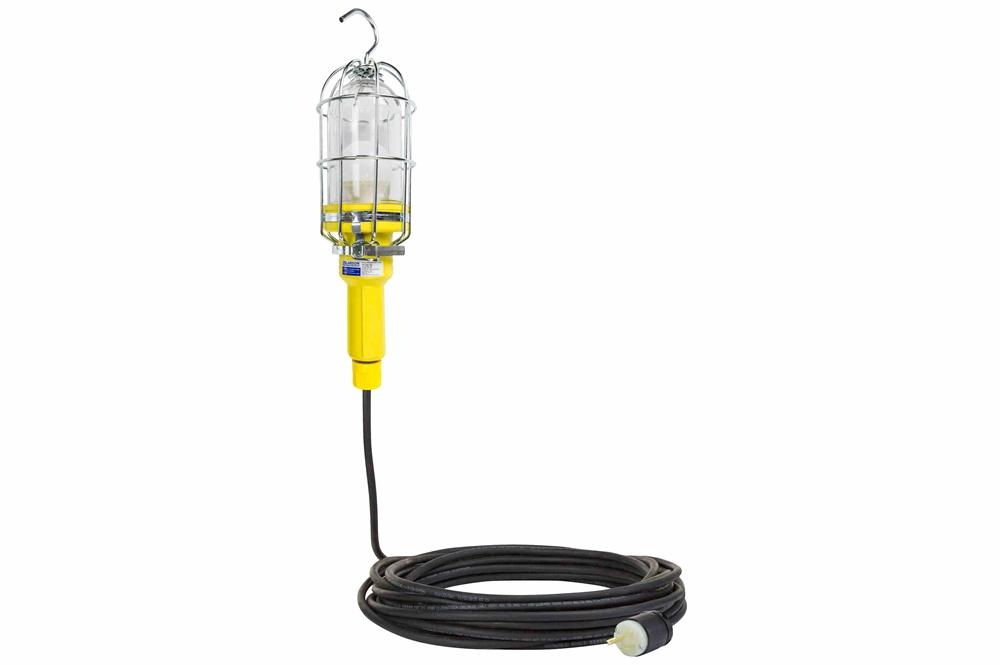

Made in the USA The Larson Electronics VPLHL-7WLED-14.3-75 10 Watt LED Vaporproof Trouble Light / Hand Lamp / Drop Light with 75` cord is both waterproof and vapor proof and constructed and certified to prevent the intrusion of water and/or moisture into the handle and/or head when used as instructed in wet locations. This unit is NRTL Certified to UL 153 and NEMA 4X. This waterproof and vapor proof LED light is available in 120-277V AC, 11V AC/DC, 24V AC/DC light configurations. This 10 watt, LED work light from LarsonElectronics.com produces 1050 lumens and comes complete with a 75` long 14/3 SOOW cord for long range and convenient operation. This waterproof and vapor proof drop light features a rubberized, insulated handle to provide a safe and secure grip and a stainless steel wire guard enclosure to protect the glass dome. These LED drop lights improve on the desirable qualities of similar incandescent models with higher foot candle light output, cooler operation and better light quality, and are ideal for use in wet areas and close work. The cool operation, good light color and evenness of coverage makes these lights ideal for a wide variety of close quarter work and inspection activities. This LED lamp has a 50,000 hour operational life and is available in 120-277V AC, 11V or 25V configurations for high or low voltage operation. Vaporproof lights are constructed and NRTL Certified to UL 153 standards, NEMA 4X rated, and designed to prevent water and/or moisture to enter the handle and/or head when used as instructed in wet locations. Rubberized handle improves operators grip and stainless steel mesh guard enclosures protects glass dome. Stainless hook enables operator to hang this task light overhead. Effective wet area task lighting that illuminates 10-12 feet in all directions with 3 footcandles of light, which is approximately the same amount of light available directly under a street light.
Lamp: The 10-watt LED lamp used in this unit produces nearly 3 times the illumination of incandescent lamps as measured in foot candles, at less than 1/10th of the electricity usage and without the associated heat. This LED drop light runs at operating temperatures of 55° F, greatly reducing the chances of accidents or burns commonly associated with incandescent drop lights. This lamp has no ballast, which reduces lamp weight, a steel globe guard, and a stainless steel hook for easy overhead mounting. The solid state LED bulb has no filament, making it resistant to damage from impacts and dropping. Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current applied and emitting light. With LED lights, there is no warm up time or cool down time before re-striking and provide instant illumination when powered on, adding to the reliability of LED technology. By nature, LED light sources run significantly cooler than traditional lamps, reducing the chance of accidental burns and increased temperatures due to heat emissions. This solid state design of light emitting diodes provides a more reliable, stable, durable, and energy efficient light source over traditional lighting. Voltage: The drivers in this unit provide the ability to automatically monitor and adjust input current to maintain the correct LED voltage levels regardless of input levels across a specific range. These light towers can operate on current ranging from 120 to 277V AC 50/60 Hz for high voltage models (11 or 25V AC/DC for low voltage models) without any modifications necessary as a result. This ability to sense and adjust input current also provides protection against voltage spikes and drops that can occur in electrical systems which would otherwise result in burning up or premature LED failure without it.
Click Photos to Enlarge
5-15 Straight Blade Plug 15 Amp / 125V Rated L5-15 Twist Lock Plug 15 Amp / 125V Rated L6-15 Twist Lock Plug 15 Amp / 250V Rated
UK BS1363 Straight Blade Plug 13 Amp / 250V Rated / Internal Fuse Intl Schuko 2-Pin Plug 16 Amp / 250V Rated / Grounded Flying Leads / Pigtail Wires
Wiring/Plug: This vapor proof hand lamp is equipped with 75` of 14/3 chemical and abrasion resistant SOOW cord that is fitted with an industrial grade cord cap for easy connection to common wall outlets. Plug options include standard 5-15 15 amp straight blade plug for 110V wall outlets with ground, standard 6-15 15 amp straight blade plug for 220-240V wall outlets with ground, NEMA L5-15 15 amp twist lock plug for 125V twist lock outlets, NEMA L6-15 15 amp twist lock plug for 240V twist lock outlets, British BS1363 13 amp fused 3-blade plug for United Kingdom outlets, or a two pin 16 amp rated Schuko plug with ground contact and socket for European outlets up to 250V. Alternatively, we can provide flying leads with no plug for hard wire applications or for operators who prefer to wire in user provided cord caps. Please choose pigtail option below for flying leads with no plug.
Lamp Features
10 watt LED Lamp 50,000 hour service life Rubberized Handle No Ballast 75` SOOW Cord Stainless Steel Swivel Hook Waterproof/Vapor Proof NRTL Certified to UL 153 NEMA 4X
