Industrial Vapor Proof LED String Light - 5 Drop Lights - AC or DC - 25' 12/3 SOOW Line In

LARSON ELECTRONICSSKU: PL3-VPLSL-5-5FT-LED
filler

Price:
Sale price$3,378.00

Description

Specifications / Additional Information
VPLSL-5-5FT-LED String Lights Features
UL Listing: United States Vapor Proof
Dimensions: Lamp Only- L-8.98" 2.27" Width Wet Area Approved
Lamp Type: LED High Output 10 Watt LED Lamps
Total Watts: 100 watts 25 Foot Connecting Cord
Voltage: 120V-277VAC - 12/24VDC Optional 5` 12/3 SOOW Between Each Lamp
Total Length: 50 Ft 3` 16/3 SOOW Drop From Molded Junctions
Mounting: Aluminum Hook
Wiring: 5` 12/3 SOOW Cable Per Unit, 25 Foot Cord
Cord Cap: 5-15 Straight, 6-15 Straight, L5-15 Twist, L6-15 Twist, UK BS1363, Intl. Schuko, Pigtail
' Product Overview '

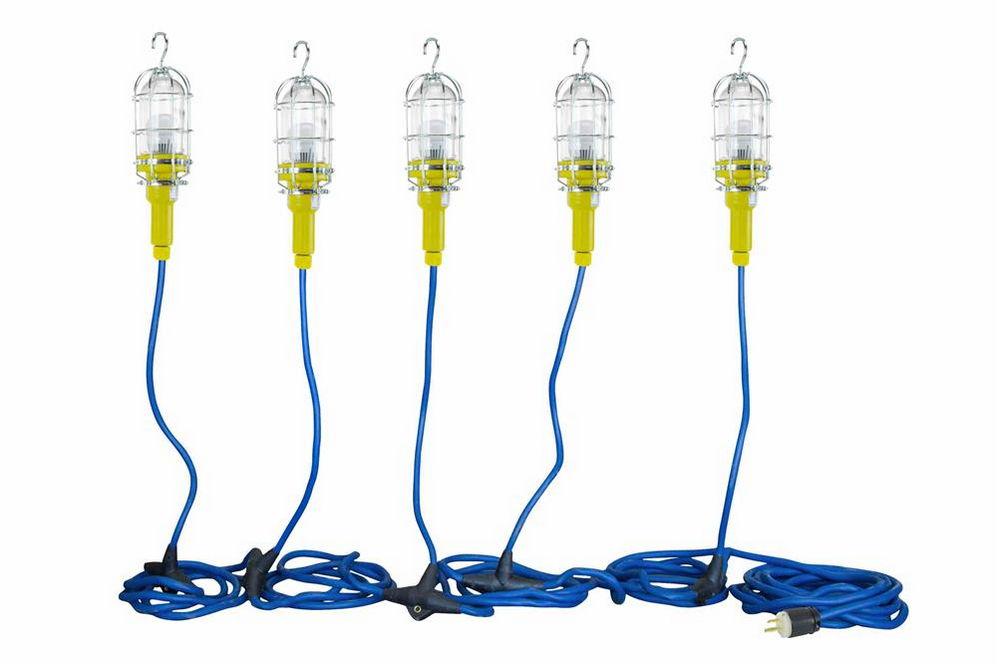

Made in the USA The Larson Electronics VPLSL-5-5FT-LED Vapor Proof LED String Light is constructed and certified to prevent water and/or moisture from entering the handle and/or head when used as instructed in wet locations. The 10 watt LED lamps on this this vapor proof light set provide more and higher quality light than 100 wattage incandescent lights while creating less heat and using less power. This string light set is suitable for wet areas and sealed against internal contamination. This vapor proof string light consists of five industrial grade vapor proof hand lamps with 5 feet of 12/3 SOOW cable between each unit. This vapor proof LED string light is connected to power via an integrated 25 foot 12/3 SOOW cable terminated with a choice of general area cord caps. Each vapor proof (water tight) trouble light is equipped with a high output LED bulb which delivers approximately 70% more light output than a 100 watt incandescent. The 10 watt LED bulb draws less than 10% the electrical power of a standard 100 watt bulb, making it suitable for standard voltage and low voltage applications. Each vapor proof LED trouble light hangs from a 3 foot 16/3 SOOW drop cord from the backbone to the molded junctions. LED Benefits: Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation and/or transportation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied, providing instant illumination with no warm up or cool down time before re-striking. Because there is no warm up period, this light can be cycled on and off with no reduction in lamp life. LED lights run at significantly cooler temperatures than traditional metal halide and high pressure sodium lights and contain no harmful gases, vapors, or mercury, making them both safer and more energy efficient. No extra energy is wasted in cooling enclosed work areas due to external heat emissions from bulb type lights, and the operator risks associated with traditional lighting methods, such as accidental burns and exposure to hazardous substances contained in the glass bulbs, are eliminated. In addition, LEDs are also safer for the environment as they are 100% recyclable, which eliminates the need for costly special disposal services required with traditional gas burning and arc type lamps.
These vapor proof lights are water tight and suitable for use in wet locations. Each light has a stainless steel mesh guard enclosure that provides protection for the glass dome and a stainless hook that allows operators to hang these tasks lights overhead. In order to meet OSHA regulations, this vapor proof LED string light must be plugged into a GFI protected outlet. Each vapor proof LED string light is equipped with an outlet, enabling the operator to connect several strings together. There are limits to how many strings can be interconnected based on the overall amp draw, power source, etc. Each LED trouble light has an effective range that approximately covers a 5 to 8 foot radius with 10-15 foot candles of light.
Click Photos to Enlarge
5-15 Straight Blade Plug 15 Amp / 125V Rated L5-15 Twist Lock Plug 15 Amp / 125V Rated L6-15 Twist Lock Plug 15 Amp / 250V Rated
UK BS1363 Straight Blade Plug 13 Amp / 250V Rated / Internal Fuse Intl Schuko 2-Pin Plug 16 Amp / 250V Rated / Grounded Flying Leads / Pigtail Wires
Wiring/Plug: This vapor proof LED string light is equipped with 25 feet of 12/3 chemical and abrasion resistant SOOW cord that is fitted with an industrial grade cord cap for easy connection to common wall outlets. Plug options include standard 5-15 15 amp straight blade plug for 110V wall outlets with ground, standard 6-15 15 amp straight blade plug for 220-240V wall outlets with ground, NEMA L5-15 15 amp twist lock plug for 125V twist lock outlets, NEMA L6-15 15 amp twist lock plug for 240V twist lock outlets, British BS1363 13 amp fused 3-blade plug for United Kingdom outlets, or a two pin 16 amp rated Schuko plug with ground contact and socket for European outlets up to 250V. Alternatively, we can provide flying leads with no plug for hard wire applications or for operators who prefer to wire in user provided cord caps. Please choose pigtail option below for flying leads with no plug. These lights are configured to operate with 120V-277V AC current and are available in an optional 12-24V DC configuration as well. These LED string lights provide more and better quality illumination than 100 watt incandescent string lights without the high heat and fragile glass construction of traditional lamps. These LED lamps are suitable for wet areas, extremely long lived, resistant to damage from impacts and vibrations, and consume far less energy than standard lamps.
Lamp Features
10 watt LED Lamp Vapor Proof Construction No Ballast Steel Globe Guards 120-277V AC or 12/24V DC Operation Durable LED construction resists damage from impacts and vibrations Hanging hook for hanging and hands free operation 25 Feet of 12/3 SOOW Cable w/ general area cord cap
