Industrial Vapor Proof LED String Light - 8 Drop Lights - Inline Stepdown Transformer

LARSON ELECTRONICSSKU: PL3-VPLSL-8-LED-TXF
filler

Price:
Sale price$8,234.00

Description

Specifications / Additional Information
VPLSL-8-LED-TXF String Lights w/ Inline Transformer Features
Listing: United States Vapor Proof
Lamp Type: LED Wet Area Approved
Dimensions: Lamp Only- L-8.98" 2.27" Width High Output 10 Watt LED Lamps
Total Watts: 80 watts 70` Backbone
Input Voltage: 120V-277V AC50/60 Hz
Output Voltage: 12V or 24V DC
Total Length: 105`
Mounting: Aluminum Hook Toll Free: 1-800-369-6671
Wiring: 70` 12/3 SOOW Backbone, 10` Spacing between each unit, 3` 14/3 SOOW Drops, 25` 12/3 SOOW between backbone & XMFR, 10` 16/3 SOOW line-in Intl: 1-903-270-1187
E-mail:
' Product Overview '

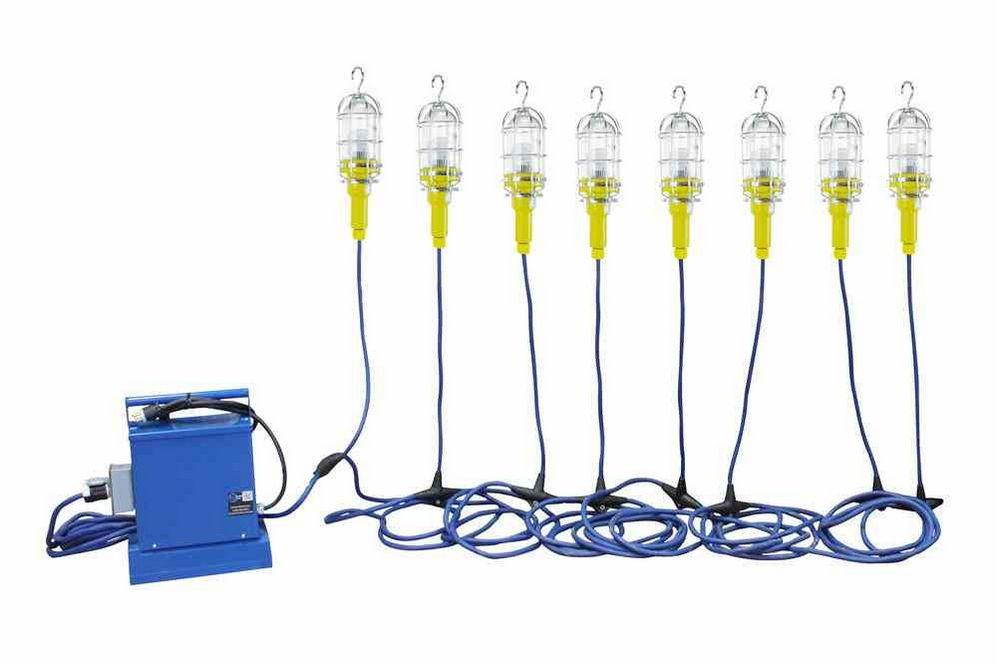

Made in the USA The Larson Electronics VPLSL-8-LED-TXF Vapor Proof LED String Light with Inline Transformer is constructed and certified to prevent water and/or moisture from entering the handle and/or head when used as instructed in wet locations. The 10 watt LED lamps on this this vapor proof light set provide more and higher quality light than 100 wattage incandescent lights while creating less heat and using less power. This string light set is suitable for wet areas and sealed against internal contamination. This vapor proof string light consists of eight industrial grade vapor proof hand lamps with 10 feet of 12/3 SOOW cable between each unit. This vapor proof LED string light is connected to power via an integrated 80 foot cable terminated with a standard 5-15 straight blade plug. Each vapor proof (water tight) trouble light is equipped with a high output LED bulb which delivers approximately 70% more light output than a 100 watt incandescent. The 10 watt LED bulb draws less than 10% the electrical power of a standard 100 watt bulb, making it suitable for standard voltage and low voltage applications. The VPLSL-8-LED-TXF features an inline transformer that steps the voltage of the unit from 120-240V DC down to 12V or 24V AC. A 25 foot tail section of main SOOW cord is included to allow ample length for connection to the inline stepdown transformer. The transformer is encapsulated in a NEMA 3R enclosure, is equipped with a 10 foot line in cable, and equipped with an industrial grade plug.
These vapor proof lights are water tight and suitable for use in wet locations. Each light has a stainless steel mesh guard enclosure that provides protection for the glass dome and a stainless hook that allows operators to hang these tasks lights overhead. In order to meet OSHA regulations, this vapor proof LED string light must be plugged into a GFI protected outlet. Each vapor proof LED string light is equipped with an outlet, enabling the operator to connect several strings together. There are limits to how many strings can be interconnected based on the overall amp draw, power source, etc. Each LED trouble light has an effective range that approximately covers a 5 to 8 foot radius with 10-15 foot candles of light. LED Benefits: Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation and/or transportation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied, providing instant illumination with no warm up or cool down time before re-striking. Because there is no warm up period, this light can be cycled on and off with no reduction in lamp life. LED lights run at significantly cooler temperatures than traditional metal halide and high pressure sodium lights and contain no harmful gases, vapors, or mercury, making them both safer and more energy efficient. No extra energy is wasted in cooling enclosed work areas due to external heat emissions from bulb type lights, and the operator risks associated with traditional lighting methods, such as accidental burns and exposure to hazardous substances contained in the glass bulbs, are eliminated. In addition, LEDs are also safer for the environment as they are 100% recyclable, which eliminates the need for costly special disposal services required with traditional gas burning and arc type lamps.
Click Photos to Enlarge
5-15 Straight Blade Plug 15 Amp / 125V Rated L5-15 Twist Lock Plug 15 Amp / 125V Rated L6-15 Twist Lock Plug 15 Amp / 250V Rated
UK BS1363 Straight Blade Plug 13 Amp / 250V Rated / Internal Fuse Intl Schuko 2-Pin Plug 16 Amp / 250V Rated / Grounded Flying Leads / Pigtail Wires
Wiring: This unit is equipped with 25` 12/3 SOOW cord leading to an inline step down transformer. Ten feet of 16/3 SOOW cord coming out of the inline transformer, and is terminated in an industrial grade cord cap. This inline power supply for this string light is an auto sensing universal voltage transformer that operates on any voltage within the 100-277 volts AC 50/60Hz range. This unit allows operators to power the string light from any 120-277V AC power source, and steps down AC voltage to 24V DC. Plug options include standard 5-15 straight blade plug for 110V wall outlets with ground, NEMA L5-15 twist lock plug for 125V twist lock outlets, NEMA L6-15 twist lock plug for 240V twist lock outlets, BS1363 3-blade plug for United Kingdom outlets, and a two pin Schuko plug for European outlets. This unit is multi-voltage and configured to operate on 120-277V AC stepped down to 12V or 24V DC, please choose your configuration below. These LED string lights provide more and better quality illumination than 100 watt incandescent string lights without the high heat and fragile glass construction of traditional lamps. These LED lamps are suitable for wet areas, extremely long lived, resistant to damage from impacts and vibrations, and consume far less energy than standard lamps.
Lamp Features
10 watt LED Lamps Vapor Proof Construction No Ballast Steel Globe Guards 120-277 VAC Stepped Down to 12V or 24V DC Operation Durable LED construction resists damage from impacts and vibrations Hanging hook for hanging and hands free operation 70 Feet of 12/3 SOOW Cable
