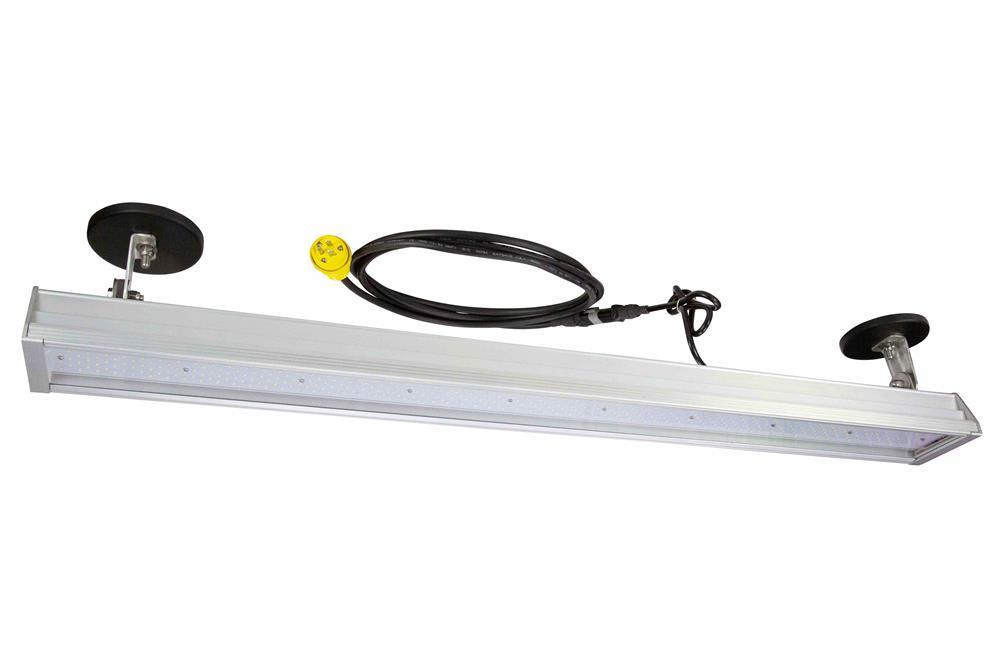

The Larson Electronics WAL-48-160W-LED-M Magnetic Mount LED Light Fixture is a 4` linear integrated LED light fixture that provides 19,200 lumens of illumination. This low profile, highly efficient LED light fixture is a direct replacement for existing four lamp T5HO fixtures, providing twice the lamp life, increased durability, and less energy consumption in a portable form factor. The energy efficiency and longevity of LEDs make this light option ideal for use in places requiring portable illumination, such as machine vision systems, temporary lighting, inspection and MRO, and other similar environments.
The WAL-48-160W-LED-M integrated 160 Watt LED light fixture is a low profile linear light fixture that provides 19,200 lumens of bright light in a 160Â° wide flood beam spread. Special heat dissipating design in conjunction with LED technology helps this fixture to achieve an excellent 60,000 hour rated lifespan with 80% lumen retention. The WAL-48-160W-LED-M is housed in aluminum casing and the LED assembly is protected by a shatter resistant polycarbonate lens. This unit operates on 120-277V AC power sources and is supplied with a 10` line-in cable with termincated in an industrial grade cord cap.
Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current applied and emitting light. With LED lights, there is no warm up time or cool down time before re-striking and provide instant illumination when powered on, adding to the reliability of LED technology. By nature, LED light sources run significantly cooler than traditional lamps, reducing the chance of accidental burns and increased temperatures due to heat emissions. This solid state design of light emitting diodes provides a more reliable, stable, durable, and energy efficient light source over traditional lighting.
The integrated heat sink allows for efficient heat dissipation, preventing the LEDs from overheating and keeping the overall temperature of the fixture relatively low. Solid state LED technology eliminates the need for a ballast box and lamps, a cumbersome feature of fluorescent fixtures that add weight and require frequent repairs. This low profile light fixture features two adjustable brackets, providing operators with easy installation and allowing for adjustments of the light assembly.
Voltage: The drivers in this unit provide the ability to automatically monitor and adjust input current to maintain the correct LED voltage levels regardless of input levels across a specific range. These light towers can operate on current ranging from 90 to 305V AC or 127 to 431V DC without any modifications necessary as a result. This ability to sense and adjust input current also provides protection against voltage spikes and drops that can occur in electrical systems which would otherwise result in burning up or premature LED failure without it.
Wiring and Plug: ThisÂ magnetic mount LED light is equipped with 10 ft. of 16/3 chemical and abrasion resistant SOOW cord that is fitted with an industrial grade cord cap for easy connection to common wall outlets. Plug options include standard 5-15 15 amp straight blade plug for 110V wall outlets with ground, standard 6-15 15 amp straight blade plug for 220-240V wall outlets with ground, NEMA L5-15 15 amp twist lock plug for 125V twist lock outlets, NEMA L6-15 15 amp twist lock plug for 240V twist lock outlets, British BS1363 13 amp fused 3-blade plug for United Kingdom outlets, or a two pin 16 amp rated Schuko plug with ground contact and socket for European outlets up to 250V. Alternatively, we can provide flying leads with no plug for hard wire applications or for operators who prefer to wire in user provided cord caps. Please choose pigtail option below for flying leads with no plug.
Mounting: This unit is designed to be magnetically mounted or hung from cable or chain and includes built in mounts. The fixture is equipped with two magnets, each with 200lb of gripping force, attached to adjustable legs on the back of the fixture. The WAL-48-160W-LED-M light fixture is ideal for indoor-outdoor applications and suitable for use as general area lighting, temporary lighting, work space lighting, inspection and MRO, machine vision systems, and anywhere a portable, dependable and low maintenance fixture with high output and efficiency is needed. This light comes with a multi-purpose mounting bracket that can be used for a direct surface mount or reversed and used for chain hanging the unit.
|Click Photos to Enlarge
|5-15 Straight Blade Plug
15 Amp / 125V Rated
||L5-15 Twist Lock Plug
15 Amp / 125V Rated
||L6-15 Twist Lock Plug
15 Amp / 250V Rated
|UK BS1363 Straight Blade Plug
13 Amp / 250V Rated / Internal Fuse
||Intl Schuko 2-Pin Plug
16 Amp / 250V Rated / Grounded
||Flying Leads / Pigtail Wires
|Superior LED Benefits
1. 50,000 hour lifespan.
2. Can SAVE 50% or more on energy.
3. Qualifies retrofit projects for financial incentives, including utility rebates, tax credits and energy loan programs.
4. Reduces energy use and prolongs life-spans of peripheral cooling units (A/C, refrigeration)
5. 100% recyclable.
6. No toxins-lead, mercury.
7. No UV light, infrared radiation or CO2 emissions.
8. Qualifies buildings for LEED and other sustainable business certifications.
9. Bright, even light maintains consistent color over time.
10. Instant on/off â€“ No flickering, delays or buzzing.
11. Very good color rendering.
12. Vibration/impact resistant.
13. Significantly cooler operation.
14. Less frequent outages, higher output improves workplace safety.
