Magnetic Mount 160 Watt LED Light Fixture - Low Voltage - High Efficiency - 50,000 Hours


Sale price$1,599.99


Specifications / Additional Information
WAL-48-160W-LED-M-LV 4` LED High Bay Linear Features
Lamp Type: LED 1:1 Direct Replacement for 4` 4L T5HOs
Dimensions: 50"-L x 9"-W x 6"-H 50,000+ Hour LED Life Span
Weight: 14 lbs 80% Lumen Retention after 50,000 Hours
Total Watts: 160 watts Reduced Energy Consumption With Improved Output
Voltage: 12V, 24V, 36V, or 48V DC (also available in high voltage) Vapor Proof
LED Lamp Life Expectancy: 50,000+ Hours Vibration Shock Resistant
Beam Angle: 160 degrees IP65 Rated Waterproof
Luminous Efficiency: 160 Lumens per Watt Outdoor Approved
Total Lumens: 19,200 Adjustable Magnet Mounting Legs
Color Temp: 6000K 400lb Total Magnetic Gripping Force
Ambient Temp Range: -30°C to +60°C
Power Efficiency: >90%
Power Factor: >0.95
Mounting: Adjustable Magnetic Mount Swivel Brackets Toll Free: 1-800-369-6671
Wiring:10` Whip w/ Flying Leads Intl: 1-903-270-1187
Materials: Aluminum Housing / Polycarbonate Lens E-mail:
' Product Overview '

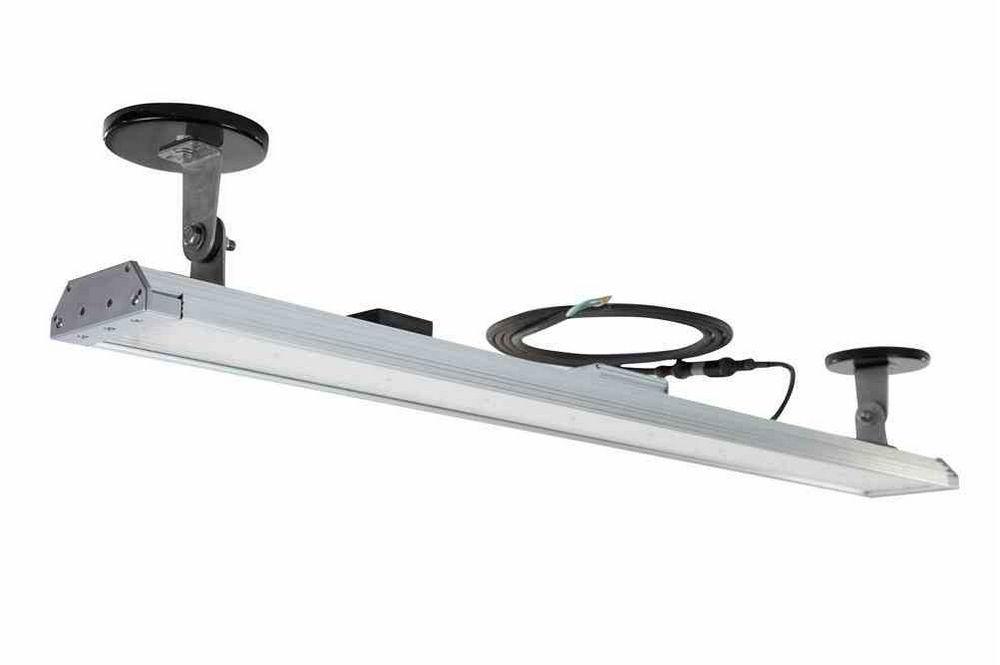

The Larson Electronics WAL-48-160W-LED-M-LV Magnetic Mount LED Light Fixture is a 4` linear integrated LED light fixture that provides 19,200 lumens of illumination. This low profile, highly efficient LED light fixture is a direct replacement for existing four lamp T5HO fixtures, providing twice the lamp life, increased durability, and less energy consumption in a portable form factor. The energy efficiency and longevity of LEDs make this light option ideal for use in places requiring portable illumination, such as machine vision systems, temporary lighting, inspection and MRO, and other similar environments. The WAL-48-160W-LED-M-LV integrated 160 Watt LED light fixture is a low profile linear light fixture that provides 19,200 lumens of bright light in a 160° wide flood beam spread. Special heat dissipating design in conjunction with LED technology helps this fixture to achieve an excellent 60,000 hour rated lifespan with 80% lumen retention. The WAL-48-160W-LED-M-LV is housed in aluminum casing and the LED assembly is protected by a shatter resistant polycarbonate lens. This unit is operates on low voltage DC power sources and can be configured for 12V, 24V, 36V, and 48V DC and supplied with a 10` line-in cable with flying leads. This fixture is designed for low voltage applications, such as off the grid and remote locations powered by alternative energy.
Click Photo to Enlarge
Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current applied and emitting light. With LED lights, there is no warm up time or cool down time before re-striking and provide instant illumination when powered on, adding to the reliability of LED technology. By nature, LED light sources run significantly cooler than traditional lamps, reducing the chance of accidental burns and increased temperatures due to heat emissions. This solid state design of light emitting diodes provides a more reliable, stable, durable, and energy efficient light source over traditional lighting. The integrated heat sink allows for efficient heat dissipation, preventing the LEDs from overheating and keeping the overall temperature of the fixture relatively low. Solid state LED technology eliminates the need for a ballast box and lamps, a cumbersome feature of fluorescent fixtures that add weight and require frequent repairs. This low profile light fixture features two adjustable brackets, providing operators with easy installation and allowing for adjustments of the light assembly. This unit is designed to be magnetically mounted or hung from cable or chain and includes built in mounts. The fixture is equipped with two magnets, each with 200lb of gripping force, attached to adjustable legs on the back of the fixture. The WAL-48-160W-LED-M-LV light fixture is ideal for indoor-outdoor applications and suitable for use as general area lighting, temporary lighting, work space lighting, inspection and MRO, machine vision systems, and anywhere a portable, dependable and low maintenance fixture with high output and efficiency is needed. This light comes with a multi-purpose mounting bracket that can be used for a direct surface mount or reversed and used for chain hanging the unit.
Superior LED Benefits
1. 50,000 hour lifespan. 2. Can SAVE 50% or more on energy. 3. Qualifies retrofit projects for financial incentives, including utility rebates, tax credits and energy loan programs. 4. Reduces energy use and prolongs life-spans of peripheral cooling units (A/C, refrigeration) 5. 100% recyclable. 6. No toxins-lead, mercury. 7. No UV light, infrared radiation or CO2 emissions. 8. Qualifies buildings for LEED and other sustainable business certifications. 9. Bright, even light maintains consistent color over time. 10. Instant on/off – No flickering, delays or buzzing. 11. Very good color rendering. 12. Vibration/impact resistant. 13. Significantly cooler operation. 14. Less frequent outages, higher output improves workplace safety.
