Larson Incandescent Trouble Light/ Hand Lamp/ Drop Light - 25 Foot 16/3 SOOW Cord

Larson ElectronicsSKU: PL3-WAL-DL-220V-25

Sale price$267.99


Made in the USA

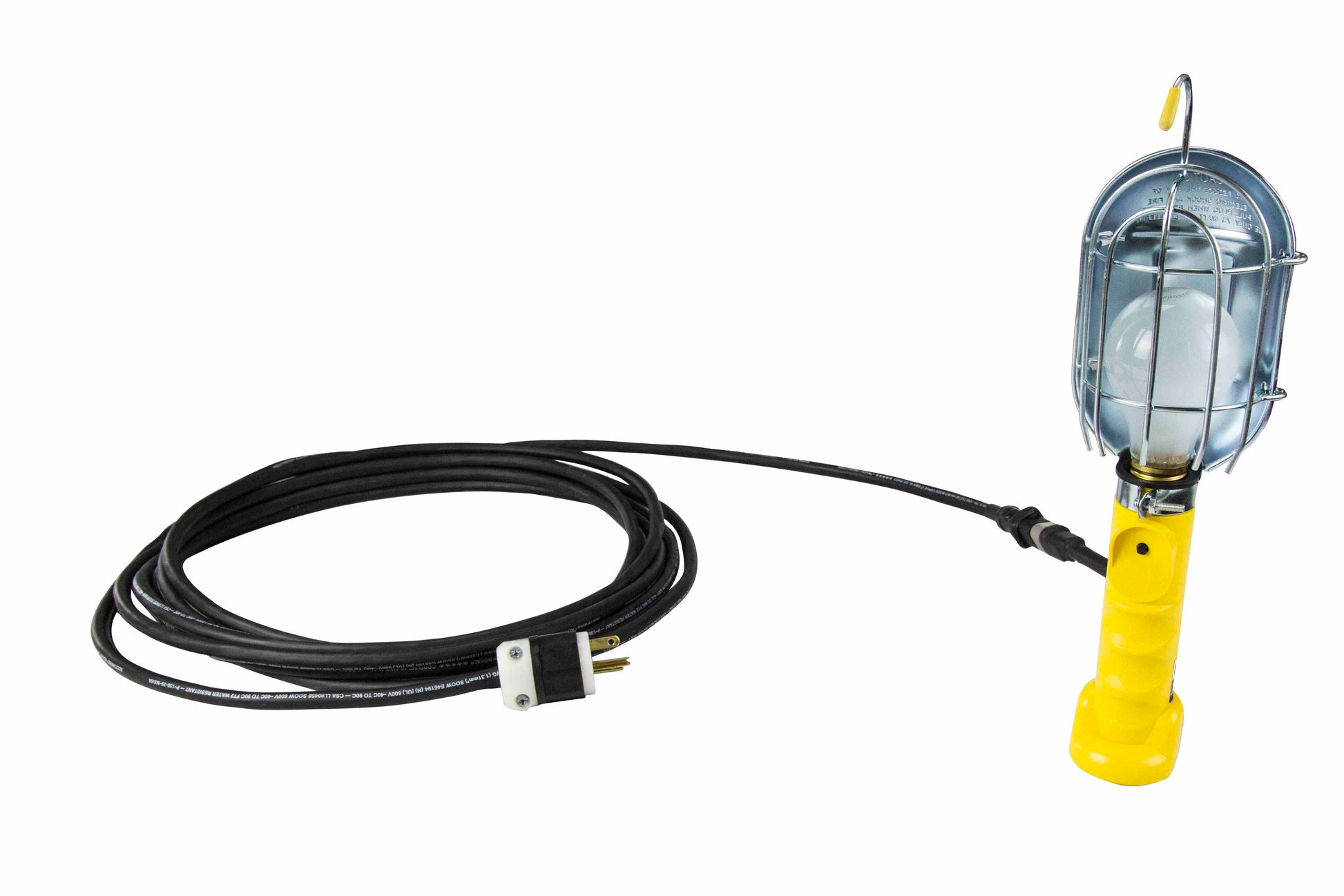

The Larson Electronics WAL-DL-220V-25 Incandescent Drop Light/Work light is ideal for close quarter work and general inspection activities in an industrial environment. This drop light/work light is equipped with a 100 watt 75 watt or 60 watt bulb and comes with several cord cap options to choose from to fit your application.
This drop light features a rugged insulated plastic handle with a built in integrated on/off switch, a steel wire guard enclosure to protect the incandescent bulb, 220/240 cord caps for connection to other electrical devices such as extension cords or tools and a swivel hook for easy mounting. The integrated on/off switch allows the operator to turn off the light without having to unplug the unit or turning off other devices that are plugged into the included 5-15R receptacle. The swivel hook allows the operator to easily mount the light for a hands free operation. The steel wire guard has a metal reflector with a mirror finish to reflect light in a 180° pattern which prevents the operator of the light from being blinded by the light while using the light for inspection purposes. These incandescent drop lights improve on the desirable qualities of similar incandescent models and are ideal for a wide variety of close quarter work and inspection activities.
The WAL-DL-220V-25 is operates on 220V, 230V, 240V AC 50/60 Hz and has a 25’ 16/3 SOOW cord that can be customized with the correct cord cap that fits your application. The unit can be ordered with a 100 watt, 75 watt or 60 watt bulb, Please choose when ordering.
L6-15 Twist Lock Plug
Flying Leads / Pigtail Wires
UK BS1363 Straight Blade Plug
Intl Schuko 2-Pin Plug
Wiring and Plug:
This LED drop light is equipped with 25 foot of 16/3 SOOOW cord that is fitted with an industrial grade cord cap for easy connection to common wall outlets. Plug options include standard 6-15 15 amp straight blade plug for 240V wall outlets with ground, NEMA L6-15 15 amp twist lock plug for 240V twist lock outlets, British BS1363 13 amp fused 3-blade plug for United Kingdom outlets, or a two pin 16 amp rated Schuko plug with ground contact and socket for European outlets up to 250V. Alternatively, we can provide flying leads with no plug for hard wire applications or for operators who prefer to wire in user provided cord caps. Please choose pigtail option below for flying leads with no plug.

Listing: United States
Lamp Type: Incandescent
Dimensions: L-15.5" x 4.75" Dia Head x 2" Dia Handle
Weight: 3.5 lbs
Voltage: 220V, 230V, 240V AC 50/60 Hz
Watts: 100/75/60 Watts
Lumens: 1000 (100W), 750 (75W), or 600 (60W)
Luminous Efficacy : 10 lm/w
Lamp Life: 4,000 hours
Color Temp: 6000K, 4300K, 3000K
CRI: >75 White
Power Efficiency: >95%
Power Factor: 0.992
Ambient Operating Temp Range: -50C° to +85C°
Material: Rugged Plastic Handle, Protective Wire Guard With Reflector
Wiring: 25` 16/3 SOOW cord
Receptacle: 5-15R
Cord Cap: 6-15, L6-15, BS1363, Schuko, or Pigtail
Mounting: Handheld/Hanging Hook
Receptacle Amp Capacity: 15 Amps
