Larson LED Trouble Light / Hand Lamp / Drop Light -10 Watt LED Bulb - 12 Foot SJOW Cord

Larson ElectronicsSKU: PL3-WAL-DL-LED-12
filler

Price:
Sale price$527.99

Description

PuriLite suggests you place an order directly with us for large Larson orders due to the potential customization requirements. Please call us at 1-844-787-5483 to place your order. If you prefer to place your order online, a PuriLite agent will be in touch with you to discuss any custom options.
Made in the USA

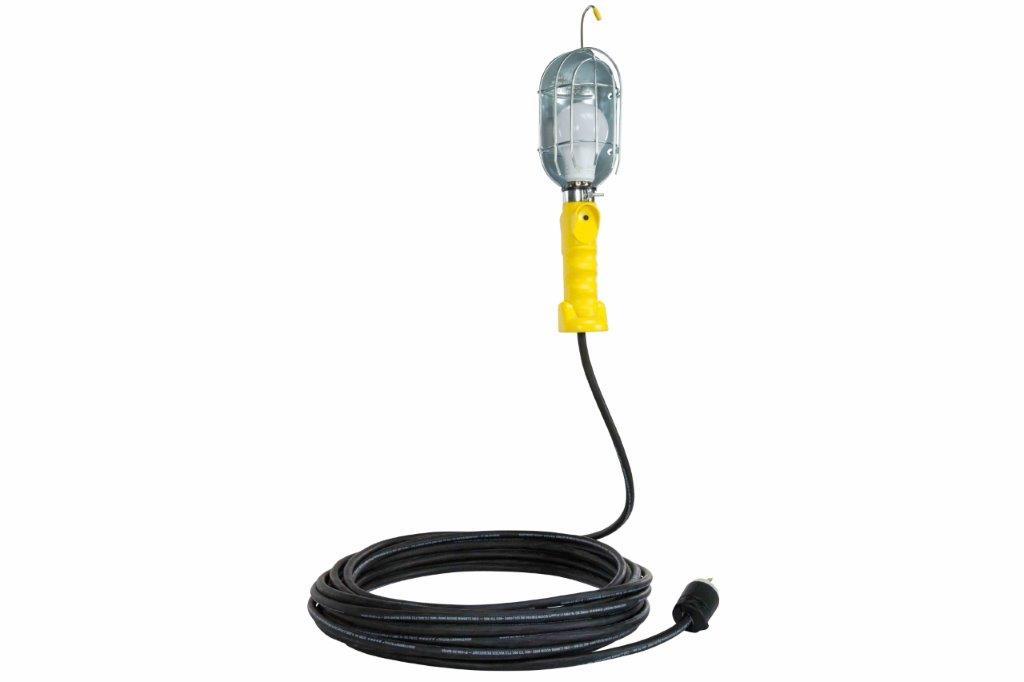

The WAL-DL-LED-12 from Larson Electronics is a LED Drop Light / Work Light that is ideal for close quarter work and general inspection activities in an industrial environment. This drop light/work lights comes with several cord cap options to choose from to fit your application.
This drop light features a rugged insulated plastic handle with a built in integrated on/off switch, a steel wire guard enclosure to protect the LED bulb, one 5-15R receptacle for connection other electrical devices such as extension cords or tools and a swivel hook for easy mounting. The integrated on/off switch allows the operator to turn off the light without having to unplug the unit or turning off other devices that are plugged into the included 5-15R receptacle. The swivel hook allows the operator to easily mount the light for a hands free operation. The steel wire guard has a metal reflector with a mirror finish to reflect light in a 180° pattern which prevents the operator of the light from being blinded by the light while using the light for inspection purposes. These LED drop lights improve on the desirable qualities of similar incandescent models and provide higher foot candle light output, cooler operation and better light quality. The cool operation and higher color rendering compared to traditional lighting make these drop lights ideal for a wide variety of close quarter work and inspection activities.
The LED bulb used in this unit utilizes only 10 watts and produces 1,050 lumens that will illuminate an area approximately 8 feet wide in all directions. This LED bulb is designed to provide higher efficiency than traditional light bulbs and has an acceptable operating temperature range of -20°C to 85°C. This LED bulb offers a life of 50,000+ hours, and has a solid state design that makes the LED bulb resistant to the effects of impacts and vibrations adding durability to withstand conditions that would cause traditional bulbs to fail. This LED bulb is also constructed of aluminum for durability and resistance to rust and corrosion.
LED Benefits:
Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation and/or transportation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied, providing instant illumination with no warm up or cool down time before re-striking. Because there is no warm up period, this light can be cycled on and off with no reduction in lamp life.
LED lights run at significantly cooler temperatures than traditional metal halide and high pressure sodium lights and contain no harmful gases, vapors, or mercury, making them both safer and more energy efficient. No extra energy is wasted in cooling enclosed work areas due to external heat emissions from bulb type lights, and the operator risks associated with traditional lighting methods, such as accidental burns and exposure to hazardous substances contained in the glass bulbs, are eliminated. In addition, LEDs are also safer for the environment as they are 100% recyclable, which eliminates the need for costly special disposal services required with traditional gas burning and arc type lamps.
The WAL-DL-LED-12 LED is available in 120-277 Volt, 12V DC and 24V DC versions and has a 12` SJOW cord that can be customized with the correct cord cap that fits your application.
5-15 Straight Blade Plug
15 Amp / 125V Rated
L5-15 Twist Lock Plug
15 Amp / 125V Rated
L6-15 Twist Lock Plug
15 Amp / 250V Rated
UK BS1363 Straight Blade Plug
13 Amp / 250V Rated / Internal Fuse
Intl Schuko 2-Pin Plug
16 Amp / 250V Rated / Grounded
Flying Leads / Pigtail Wires
Wiring and Plug:
This LED drop light is equipped with 12 foot of SJOW cord that is fitted with an industrial grade cord cap for easy connection to common wall outlets. Plug options include standard 5-15 15 amp straight blade plug for 110V wall outlets with ground, standard 6-15 15 amp straight blad plug for 240V wall outlets with ground, NEMA L5-15 15 amp twist lock plug for 125V twist lock outlets, NEMA L6-15 15 amp twist lock plug for 240V twist lock outlets, British BS1363 13 amp fused 3-blade plug for United Kingdom outlets, or a two pin 16 amp rated Schuko plug with ground contact and socket for European outlets up to 250V. Alternatively, we can provide flying leads with no plug for hard wire applications or for operators who prefer to wire in user provided cord caps. Please choose pigtail option below for flying leads with no plug.
Contact info@purilite.ca for more information about our custom options tailored to meet your specific industry needs.

Specifications
Listing: United States
Lamp Type: LED
Dimensions: 15.5"L x 4.75" Dia Head x 2" Dia Handle
Weight: 3.5 lbs
Voltage: 120-277 Volts 50/60 Hz, 12V DC, 24V DC
Total Watts: 10 Watts
Lumens: 1,050
Luminous Efficacy: 105 Lm/W
Lamp Life: 50,000+ Hours
Color Temp: 6000K, 4300K or 3000K
CRI: >75 White
Power Efficiency: >95%
Power Factor: 0.992
Amperage: 0.08A @ 120V, 0.04A @ 240V, 0.04A @ 277V
Ambient Operating Temp Range: -50°C to +85°C
Material: Rugged Plastic Handle, Protective Wire Guard With Reflector
Wiring: 12` SJOW cord
Receptacle: 5-15R
Cord Cap: 5-15, L5-15, L6-15, BS1363, Schuko, or Pigtail
Mounting: Handheld/Hanging Hook
Receptacle Amp Capacity: 15 Amps
