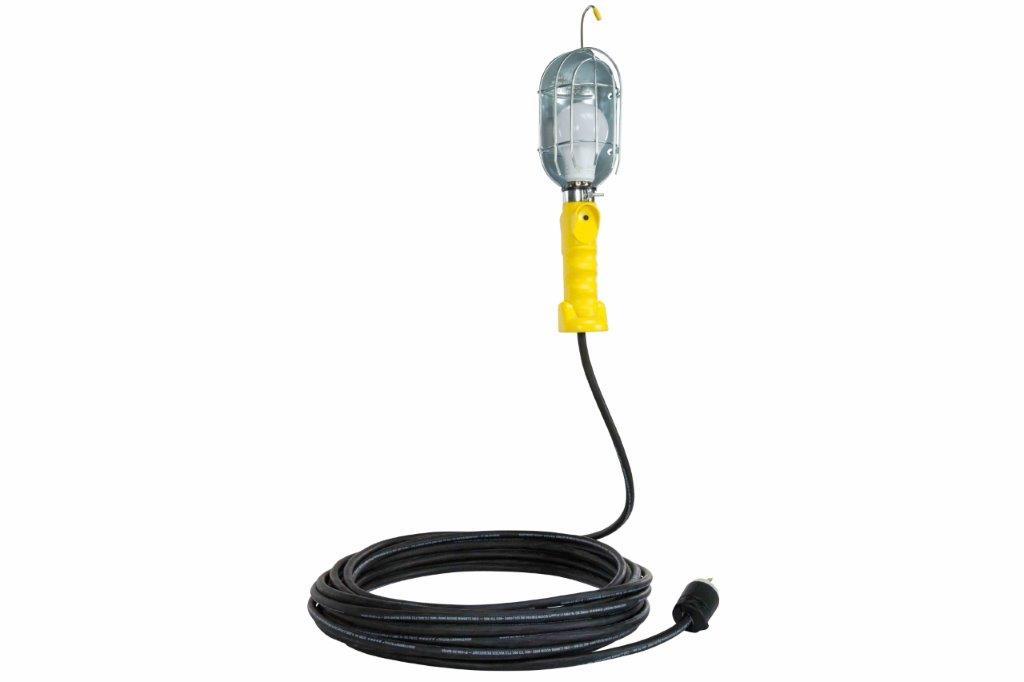

The Larson Electronics WAL-DL-LED-25 LED Drop Light/Work light is ideal for close quarter work and general inspection activities in an industrial environment. This drop light/work lights comes with several cord cap options to choose from to fit your application.
This drop light features a rugged insulated plastic handle with a built in integrated on/off switch, a steel wire guard enclosure to protect the LED Bulb, one 5-15R receptacle for connection other electrical devices such as extension cords or tools and a swivel hook for easy mounting. The integrated on/off switch allows the operator to turn off the light without having to unplug the unit or turning off other devices that are plugged into the included 5-15R receptacle. The swivel hook allows the operator to easily mount the light for a hands free operation. The steel wire guard has a metal reflector with a mirror finish to reflect light in a 180° pattern which prevents the operator of the light from being blinded by the light while using the light for inspection purposes. These LED drop lights improve on the desirable qualities of similar incandescent models and provide higher foot candle light output, cooler operation and better light quality. The cool operation and higher color rendering compared to traditional lighting make these drop lights ideal for a wide variety of close quarter work and inspection activities.
The LED bulb used in this unit utilizes only 10 watts and produces 1,050 lumens that will illuminate an area approximately 8 feet wide in all directions. This LED bulb is designed to provide higher efficiency than traditional light bulbs and has an acceptable operating temperature range of -20° C to 85° C. This LED bulb offers a life of 50,000+ hours, and has a solid state design that makes the LED bulb resistant to the effects of impacts and vibrations adding durability to withstand conditions that would cause traditional bulbs to fail. This LED bulb is also constructed of aluminum for durability and resistance to rust and corrosion.
Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current applied and emitting light. With LED lights, there is no warm up time or cool down time before re-striking and provide instant illumination when powered on, adding to the reliability of LED technology. By nature, LED light sources run significantly cooler than traditional lamps, reducing the chance of accidental burns and increased temperatures due to heat emissions. This solid state design of light emitting diodes provides a more reliable, stable, durable, and energy efficient light source over traditional lighting.
The WAL-DL-LED-25 LED is available in 120-277 Volt, 12V DC and 24V DC versions and has a 25’ SJOW cord that can be customized with the correct cord cap that fits your application.
5-15 Straight Blade Plug
L5-15 Twist Lock Plug
L6-15 Twist Lock Plug
UK BS1363 Straight Blade Plug
Intl Schuko 2-Pin Plug
Flying Leads / Pigtail Wires
Wiring and Plug:
This LED drop light is equipped with 25 foot of SJOW cord that is fitted with an industrial grade cord cap for easy connection to common wall outlets. Plug options include standard 5-15 15 amp straight blade plug for 110V wall outlets with ground, standard 6-15 15 amp straight blad plug for 240V wall outlets with ground, NEMA L5-15 15 amp twist lock plug for 125V twist lock outlets, NEMA L6-15 15 amp twist lock plug for 240V twist lock outlets, British BS1363 13 amp fused 3-blade plug for United Kingdom outlets, or a two pin 16 amp rated Schuko plug with ground contact and socket for European outlets up to 250V. Alternatively, we can provide flying leads with no plug for hard wire applications or for operators who prefer to wire in user provided cord caps. Please choose pigtail option below for flying leads with no plug.
Listing: United States
Lamp Type: LED
Dimensions: L-15.5" x 4.75" Dia Head x 2" Dia Handle
Weight: 3.5 lbs
Voltage: 120-277 Volts 50/60 Hz, 12V DC or 24V DC
Total Watts: 10 Watts
Luminous Efficacy : 105 lm/w
Lamp Life: 50,000+ hours
Color Temp: 6000K, 4300K, 3000K
CRI: >75 White
Power Efficiency: >95%
Power Factor: 0.992
Amperage: 0.08 amps @ 120V, 0.04 amps @ 240V, 0.04 amps @ 277V
Ambient Operating Temp Range: -50C° to +85C°
Material: Rugged Plastic Handle, Protective Wire Guard With Reflector
Wiring: 25` SJOW cord
Cord Cap: 5-15, L5-15, L6-15, BS1363, Schuko, or Pigtail
Mounting: Handheld/Hanging Hook
Receptacle Amp Capacity: 15 Amps
