60 Watt Portable Magnetic Mount LED Work Light - Daisy Chain - 120-277V AC -IP65- 500W MH Equivalent

60 Watt Portable Magnetic Mount LED Work Light - Daisy Chain - 120-277V AC -IP65- 500W MH Equivalent

$2,010.00 CAD
$2,010.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications / Additional Information
WAL-M-WP60E-ILS-25 Magnetic Mount LED Light Quick Summary / Features
Listing: United States - Canada Listed for United States and Canada
Lamp Type: LED IP65 Waterproof
Dimensions (Inches):12.2W-9"   D-3.25"   H-6.5" Operates on Standard 110-277 VAC
Weight: 8.5 Lbs. Vibration Resistant Construction
Voltage: 120-277 Volts AC, 50/60Hz 50,000 Hour LED Life
Watts: 60 Approved for Confined Spares
Total Lumens: 5,400 Approved for Indoor Use
Luminous Efficacy: 90 lm/w Approved for Outdoor Use
LED Life Expectancy: 50,000 hours Approved for Wet Locations
Lighting Configuration: Flood Ambient Temp Range -40°C to +60°
LED Light Color: Cool White - 6000K High Performance Integrated LED Assembly
Color Rendering Index: 80 Replaces 500 Watt Metal Halide Light Fixtures
Power Efficiency: 85% Internal LED Driver - No Ballasts
Power Factor: >0.95 Up to 87% Savings in Energy and Maintenance
Amp Draw: 0.75A @ 120V, 0.375 @ 240V, 0.33 @ 277V 200 lb Grip Magnetic Mount
Housing Materials: Aluminum Housing End to End Daisy Chain Capable
Lens Materials: Prismatic Polycarbonate Lens Custom Configurations Available
Gasket Materials: Injection Molded Rubber
Ingress Protection: IP65
Ambient Temp Range: -40°C to +60°C
Mounting: Ceiling / Flat Surface Toll Free: 1-800-369-6671
Wiring: 16/3 SOOW - 25` Line-in / 5` Line-Out Intl: 1-903-270-1187
Cord Cap: 5-15, 6-15, L5-15, L6-15 or Pigtail E-mail:
' Product Overview '

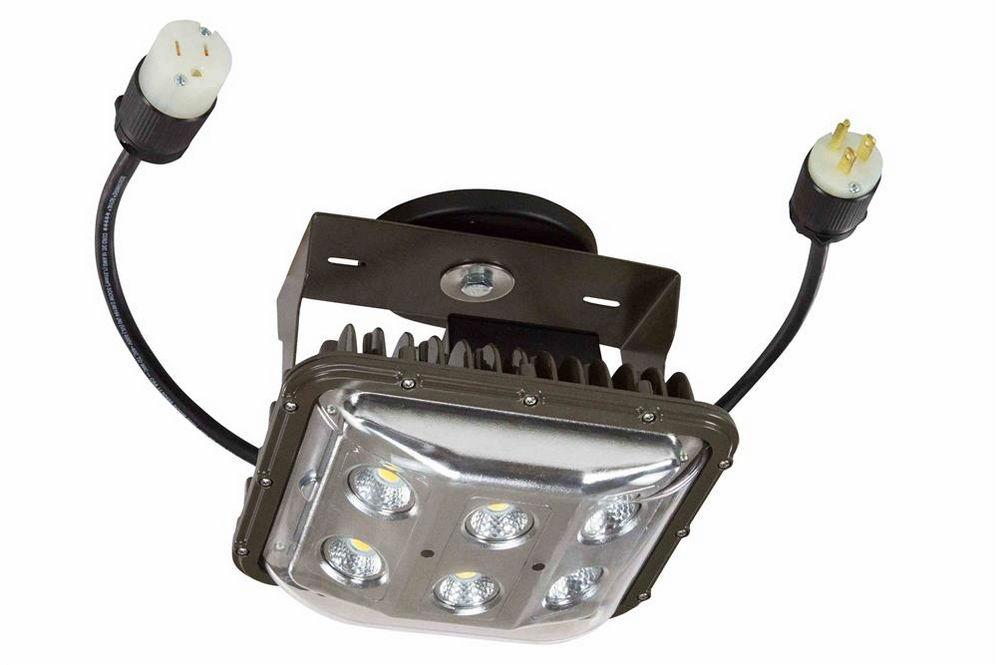

Made in Texas The WAL-M-WP60E-ILS-25 LED Portable Magnetic Mount Light offers high light output from a compact form factor and is designed to provide a more durable, versatile, and long lived alternative to halogen and 500 watt metal halide units. Equipped with a 200 lb grip magnet, these LED units are convenient to transport and easy to mount in even the most difficult to access work areas. In addition, Larson Electronics has created the WAL-M-WP60E-ILS-25 with a 5` 16/3 SOOW line out cable terminating in a female cord cap and a 25` 16/3 SOOW line in cable terminated in a male cord cap, which means these lights can be connected in an end to end daisy chain configuration, giving the operator complete control over how the light output is spread throughout the workspace. The WAL-M-WP60E-ILS-25 LED Magnetic Mount light from Larson Electronics produces a long flood beam of light while drawing only 0.5 amps at 120 VAC. The light assembly consists of forty-five LEDs paired with high purity specular optics to produce a wide light distribution overpowering that of a 500 watt quartz flood lights. This light is constructed of three angled boards that helps provide a wider spread. Instead of the light only shining forward, the center board is concentrated to go straight out while the boards on the side are 45° offset. This LED wall pack is designed to withstand demanding conditions and is waterproof, vapor proof, and built to resist the damaging effects of an outdoor environment.
The WAL-M-WP60E-ILS-25 magnetic mount light assembly consists of forty-five LEDs housed within a waterproof aluminum housing that is powder coated for added durability and resistance to corrosion. The housing incorporates integral cooling fins for efficient heat dissipation and increased LED longevity. The LED lamp assembly is protected by a shatterproof polycarbonate lens which is secured to the housing with a waterproof seal. LED Technology: We have eliminated the ballast normally associated with metal halide fixtures which reduces overall weight and overall complexity of the LED work light. There is no ballast in this unit and the included LED assembly has a 50,000+ hour service life, both of which result in extreme efficiency and greatly reduced maintenance costs. These LED fixtures have internal drivers, eliminating external power components. The solid state design of the LED lamps give this fixture superior resistance to damage from vibration, extremes in temperature and a lamp service life over twice that of standard metal halide and high pressure sodium bulbs. Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied and emitting light. With LED lights, there is no warm up time or cool down time before re-striking. Rather, LED lights provide instant illumination when powered on, adding to the reliability of LED technology. The light can be cycled on and off without any reduction in lamp life. By nature, LED light sources run significantly cooler than traditional lamps, reducing the chance of accidental burns and increased temperatures due to heat emissions. There is no glass or filament to shatter or break, and the solid state LED design provides 50,000 hours of operation. This solid state design of light emitting diodes provides a more reliable, stable, durable, and energy efficient light source over traditional lighting.
Metal Halide LED Savings
Wattage 460* watts 60 watts -370 watts
Amp Draw @ 120V AC 3.84 amps 0.75 amps -3.09 amps
Amp Draw @ 220V AC 2.10 amps 0.41 amps -1.69 amps
Amp Draw @ 240V AC 1.92 amps 0.37 amps -1.55 amps
Amp Draw @ 277V AC 1.66 amps 0.33 amps -1.36 amps
Lamp Life Expectancy 20,000 hours 50,000 hours +80,000 hours
Operation cost per year - each (12hs/day @ 12c/kWh) $241.78 $47.30 $194.48/yr
Operation cost per year - 50 fixtures (12hs/day @ 12c/kWh) $12,089.00 $2,365.00 $9724.00/yr
  *Includes ballast factor LED has no ballast
80% in energy savings alone, before cost of maintenance for metal halide fixtures. Up to 87% annual savings possible by switching to LED.
Voltage: The internal driver in this unit provide the ability to automatically monitor and adjust input current to maintain the correct LED voltage levels regardless of input levels across a specific range. These magnetic mount LED work lights can operate on current ranging from 100 to 277V AC without any modifications necessary, providing versatile and readily adaptable power options for all locations. This ability to sense and adjust input current also provides protection against voltage spikes and drops that can occur in electrical systems which would otherwise result in burning up or premature LED failure without it.
Click Photos to Enlarge
5-15 Straight Blade Plug 15 Amp / 125V Rated L5-15 Twist Lock Plug 15 Amp / 125V Rated L6-15 Twist Lock Plug 15 Amp / 250V Rated
Wiring and Plug: Larson Electronics has equipped the WAL-M-WP60E-ILS-25 LED portable floodlight with a 25’ 16/3 chemical and abrasion resistant SOOW cord for line-in cable terminated in a male cord cap and a 5’ 16/3 SOOW cord for line-out terminated in a female cord cap, meaning multiple WAL-M-WP60E-ILS-25 LED Magnetic Mount lights can be connected to one another end to end, forming a daisy chain of high output 60 watt LED lamps that can be easily attached to any flat ferrous surface using the 200 lb grip magnet mount. The SOOW line-in cord is fitted with an industrial grade cord cap for easy connection to common wall outlets. Plug options include standard 5-15 15 amp straight blade plug for 110V wall outlets with ground, standard 6-15 15 amp straight blade plug for 220-240V wall outlets with ground, NEMA L5-15 15 amp twist lock plug for 125V twist lock outlets and NEMA L6-15 15 amp twist lock plug for 220-240V twist lock outlets. The line-out cord is fitted with the mating female connector to the male plug terminated on the line-in cord. Alternatively, we can provide flying leads with no plug for hard wire applications or for operators who prefer to wire in user provided cord caps. Please choose pigtail option below for flying leads with no plug. Mounting: The WAL-M-WP60E-ILS-25 is magnetically mounted with a 200 lb grip magnetic base. This magnetic mounting system allows operators to attach the light to any flat ferrous surface for temporary mounting within the job site. The WAL-M-WP60E-ILS-25 is flexible in every aspect of its design. With its compact, lightweight form, magnetic base, universal voltage, multiple cord and plug options, and its end to end daisy chain capability, the WAL-M-WP60E-ILS-25 Portable Magnetic Mount LED light gives the operator complete control over task lighting regardless of the difficulties presented by task and workspace. This portable LED fixture is ideal for tank cleaning, blasting, MRO, automotive, inspection, construction, and task lighting.
LED Lamp Benefits
1. 50,000+ hour lifespan. 2. Can SAVE 50% or more on energy. 3. 100% recyclable. 4. No toxins-lead, mercury. 5. No UV light, infrared radiation or CO2 emissions. 6. Bright, even light maintains consistent color over time. 7. Instant on/off – No flickering, delays or buzzing. 8. Very good color rendering. 9. Vibration/impact resistant. 10. Significantly cooler operation. 11. Less frequent outages, higher output improves workplace safety.
