Description
PuriLite suggests you place an order directly with us for large Larson orders due to the potential customization requirements. Please call us at 1(647) 254-9757 to place your order. If you prefer to place your order online, a PuriLite agent will be in touch with you to discuss any custom options.

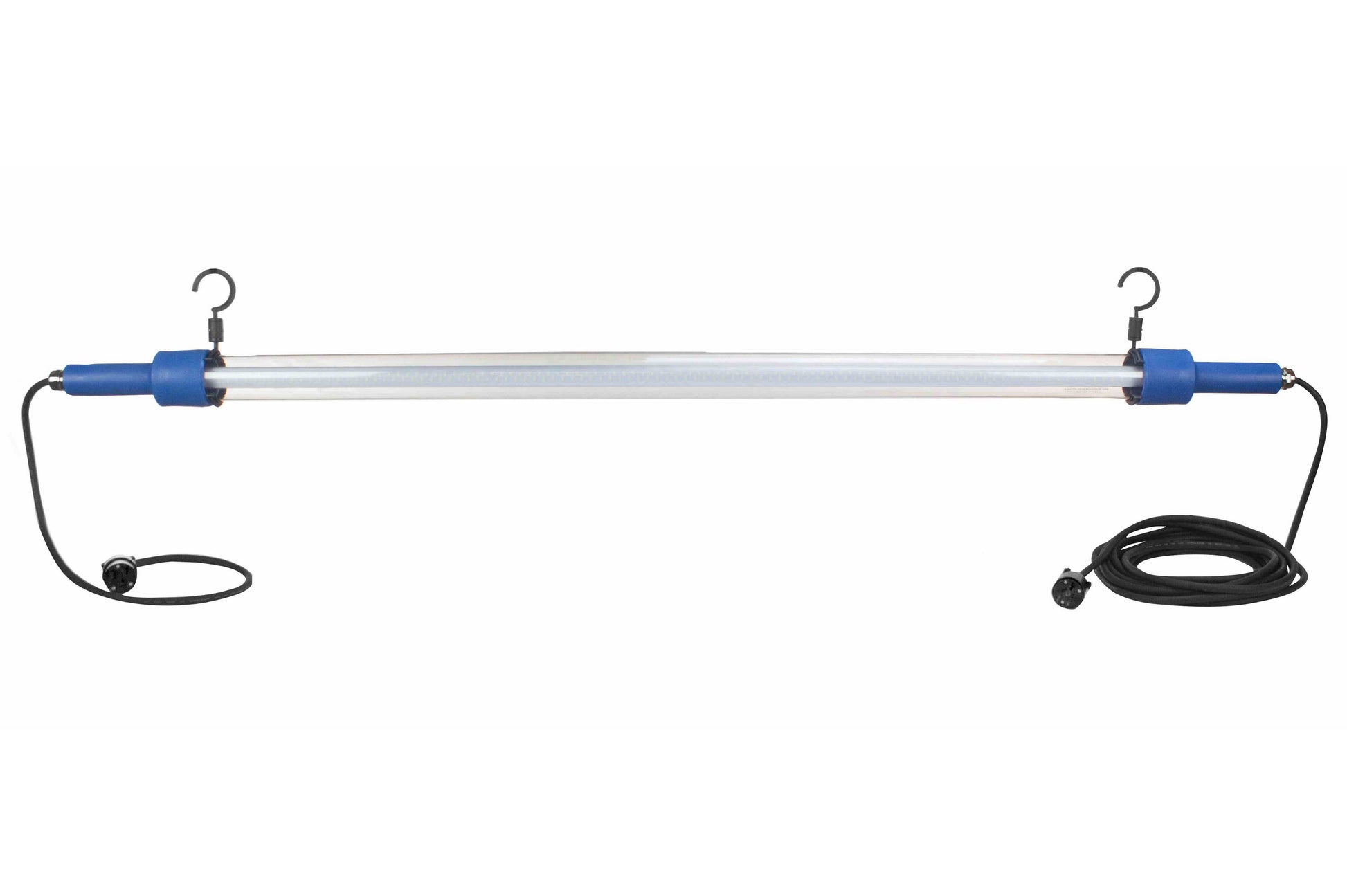

The WAL-PFL-LED-V6-120-25 from Larson Electronics is a Four Foot LED Trouble Light (Drop Light) that produces 3,240 lumens with a 36 Watt LED T8 style light. Larson Electronics LED T-series lights outperform comparable configurations using a T5HO by approximately 15% when measured with a Extech light meter at 10 feet. This LED trouble light ships with 2 end hooks that enable operators to treat this light like a portable linear fluorescent single bulb fixture. In addition to protecting the LED light, the rubber end caps protect the work surface in the event that the light is dropped or falls. The Lexan sheath encapsulates the LED bulb. With no glass to break, this LED trouble light is ideal for food safe applications as well.
This 4 foot LED task light is powered via a 25 foot power cord. In addition, an additional outlet is available at the opposite end of the light, enabling operators to daisy chain multiple units together, while only using a single outlet. These LED trouble lights are an alternative to traditional string lights, since they minimize cord use and can be configured to include different numbers of lights. Each LED trouble light contains an integrated light reflector to optimize usable light output. The LED T-series bulb is rated at 50,000 hours.
LED Benefits:
Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation and/or transportation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied, providing instant illumination with no warm up or cool down time before re-striking. Because there is no warm up period, this light can be cycled on and off with no reduction in lamp life.
LED lights run at significantly cooler temperatures than traditional metal halide and high pressure sodium lights and contain no harmful gases, vapors, or mercury, making them both safer and more energy efficient. No extra energy is wasted in cooling enclosed work areas due to external heat emissions from bulb type lights, and the operator risks associated with traditional lighting methods, such as accidental burns and exposure to hazardous substances contained in the glass bulbs, are eliminated. In addition, LEDs are also safer for the environment as they are 100% recyclable, which eliminates the need for costly special disposal services required with traditional gas burning and arc type lamps.
5-15 Straight Blade Plug
15 Amp / 125V Rated
L5-15 Twist Lock Plug
15 Amp / 125V Rated
L6-15 Twist Lock Plug
15 Amp / 250V Rated
UK BS1363 Straight Blade Plug
13 Amp / 250V Rated / Internal Fuse
Intl Schuko 2-Pin Plug
16 Amp / 250V Rated / Grounded
Flying Leads / Pigtail Wires
Wiring/Plug:
This general use high bay LED light fixture is equipped with 25 feet of 16/3 chemical and abrasion resistant SOOW cord that is fitted with an industrial grade cord cap for easy connection to common wall outlets. Plug options include standard 5-15 15 amp straight blade plug for 110V wall outlets with ground, standard 5-20 20 amp straight blade plug for 110V wall outlets with ground, standard 6-15 15 amp straight blade plug for 220-240V wall outlets with ground, standard 6-20 20 amp straight blade plug for 220-240V wall outlets with ground, NEMA L5-15 15 amp twist lock plug for 125V twist lock outlets, NEMA L5-20 20 amp twist lock plug for 125V twist lock outlets, NEMA L6-15 15 amp twist lock plug for 240V twist lock outlets, NEMA L6-20 20 amp twist lock plug for 240V twist lock outlets, British BS1363 13 amp fused 3-blade plug for United Kingdom outlets, or a two pin 16 amp rated Schuko plug with ground contact and socket for European outlets up to 250V. Alternatively, we can provide flying leads with no plug for hard wire applications or for operators who prefer to wire in user provided cord caps. Please choose pigtail option below for flying leads with no plug.
Voltage:
Voltage options include 12-277 VAC, 50/60Hz or 12/24 VDC.
Contact info@purilite.ca for more information about our custom options tailored to meet your specific industry needs.
Specifications
Lamp Type: LED
Dimensions: 55"L x 3"OD
Weight: 5 lb
Voltage: 120-277 VAC, 50/60 Hz or 12/24 VDC
Watts: 36 W
Lumens: 3,240
Luminous Efficacy: 90 Lm/W
LED Light Color: White
LED Life Expectancy: 50,000 Hours
Wiring: 25` 16/3 SOOW w/ General Area Cord Cap
Cord Cap Options: 5-15, 6-15, 5-20, 6-20, L5-15, L6-15, L5-20, L6-20, BS1363, Schuko, or Pigtail
Lens Material: Polycarbonate
Mounting: (2) Hooks for Hanging
The WAL-PFL-LED-V6-120-25 from Larson Electronics is a Four Foot LED Trouble Light (Drop Light) that produces 3,240 lumens with a 36 Watt LED T8 style light. Larson Electronics LED T-series lights outperform comparable configurations using a T5HO by approximately 15% when measured with a Extech light meter at 10 feet. This LED trouble light ships with 2 end hooks that enable operators to treat this light like a portable linear fluorescent single bulb fixture. In addition to protecting the LED light, the rubber end caps protect the work surface in the event that the light is dropped or falls. The Lexan sheath encapsulates the LED bulb. With no glass to break, this LED trouble light is ideal for food safe applications as well.
This 4 foot LED task light is powered via a 25 foot power cord. In addition, an additional outlet is available at the opposite end of the light, enabling operators to daisy chain multiple units together, while only using a single outlet. These LED trouble lights are an alternative to traditional string lights, since they minimize cord use and can be configured to include different numbers of lights. Each LED trouble light contains an integrated light reflector to optimize usable light output. The LED T-series bulb is rated at 50,000 hours.
LED Benefits:
Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation and/or transportation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied, providing instant illumination with no warm up or cool down time before re-striking. Because there is no warm up period, this light can be cycled on and off with no reduction in lamp life.
LED lights run at significantly cooler temperatures than traditional metal halide and high pressure sodium lights and contain no harmful gases, vapors, or mercury, making them both safer and more energy efficient. No extra energy is wasted in cooling enclosed work areas due to external heat emissions from bulb type lights, and the operator risks associated with traditional lighting methods, such as accidental burns and exposure to hazardous substances contained in the glass bulbs, are eliminated. In addition, LEDs are also safer for the environment as they are 100% recyclable, which eliminates the need for costly special disposal services required with traditional gas burning and arc type lamps.
5-15 Straight Blade Plug
15 Amp / 125V Rated
L5-15 Twist Lock Plug
15 Amp / 125V Rated
L6-15 Twist Lock Plug
15 Amp / 250V Rated
UK BS1363 Straight Blade Plug
13 Amp / 250V Rated / Internal Fuse
Intl Schuko 2-Pin Plug
16 Amp / 250V Rated / Grounded
Flying Leads / Pigtail Wires
Wiring/Plug:
This general use high bay LED light fixture is equipped with 25 feet of 16/3 chemical and abrasion resistant SOOW cord that is fitted with an industrial grade cord cap for easy connection to common wall outlets. Plug options include standard 5-15 15 amp straight blade plug for 110V wall outlets with ground, standard 5-20 20 amp straight blade plug for 110V wall outlets with ground, standard 6-15 15 amp straight blade plug for 220-240V wall outlets with ground, standard 6-20 20 amp straight blade plug for 220-240V wall outlets with ground, NEMA L5-15 15 amp twist lock plug for 125V twist lock outlets, NEMA L5-20 20 amp twist lock plug for 125V twist lock outlets, NEMA L6-15 15 amp twist lock plug for 240V twist lock outlets, NEMA L6-20 20 amp twist lock plug for 240V twist lock outlets, British BS1363 13 amp fused 3-blade plug for United Kingdom outlets, or a two pin 16 amp rated Schuko plug with ground contact and socket for European outlets up to 250V. Alternatively, we can provide flying leads with no plug for hard wire applications or for operators who prefer to wire in user provided cord caps. Please choose pigtail option below for flying leads with no plug.
Voltage:
Voltage options include 12-277 VAC, 50/60Hz or 12/24 VDC.
Contact info@purilite.ca for more information about our custom options tailored to meet your specific industry needs.
Specifications
Lamp Type: LED
Dimensions: 55"L x 3"OD
Weight: 5 lb
Voltage: 120-277 VAC, 50/60 Hz or 12/24 VDC
Watts: 36 W
Lumens: 3,240
Luminous Efficacy: 90 Lm/W
LED Light Color: White
LED Life Expectancy: 50,000 Hours
Wiring: 25` 16/3 SOOW w/ General Area Cord Cap
Cord Cap Options: 5-15, 6-15, 5-20, 6-20, L5-15, L6-15, L5-20, L6-20, BS1363, Schuko, or Pigtail
Lens Material: Polycarbonate
Mounting: (2) Hooks for Hanging
