60 Watt Portable LED Work Area Light - Waterproof - Aluminum Frame - Adjustable Light Head - 120-277

LARSON ELECTRONICSSKU: PL3-WAL-PM-WP60
filler

Price:
Sale price$1,711.99

Description

Specifications / Additional Information
WAL-PM-WP60 Portable LED Work Light Quick Summary
Listing: United States & Canada Listed for United States and Canada
Lamp Type: LED 120-277V AC Universal Voltage
Dimensions: 9.5"-W x 17.25"-H x 10.2"-D Adjustable LED Lamp Head
Weight: 12 Lbs Low Amp Draw
Voltage: 100-277 Volts AC, 50/60Hz 50,000+ Lamp Life
Total Watts: 60 Watts IP68 Waterproof
Total Lumens: 5,400 Replaces for 500 Watt Quartz Work Lights
Luminous Efficacy: 90 Lm/W Low Heat - Less Risk of Accidental Burns
Lighting Configuration: Flood
Lamp Life: 50,000+ Hours
Color Temp: 6000K
Color Rendering Index: >75 CRI
Beam Angle: 70° Horizontal - 53° Vertical
Lighting Configuration: Flood, NEMA 7H x 6V
Power Efficiency: >95%
Power Factor: 0.992
Amperage: 0.5A @ 120V, 0.25A @ 240V, 0.22 @ 277V
Operating Temp Range: -40°C to +80°C
Lamp Housing Material: Cast Aluminum
Lamp Lens Material: Polycarbonate
Mount Material: Aluminum Special Orders & Requirements
Mount Finish: Powder Coated - Gloss Blue
Mounting:Portable Pedestal Frame Toll Free: 1-800-369-6671
Wiring: 100` 16/3 SOOW Cord Terminated in Cord Cap Intl: 1-903-270-1187
Cord Cap: 5-15, 6-15, L5-15, L6-15, BS1363, Schuko, or Pigtail E-mail:
' Product Overview '

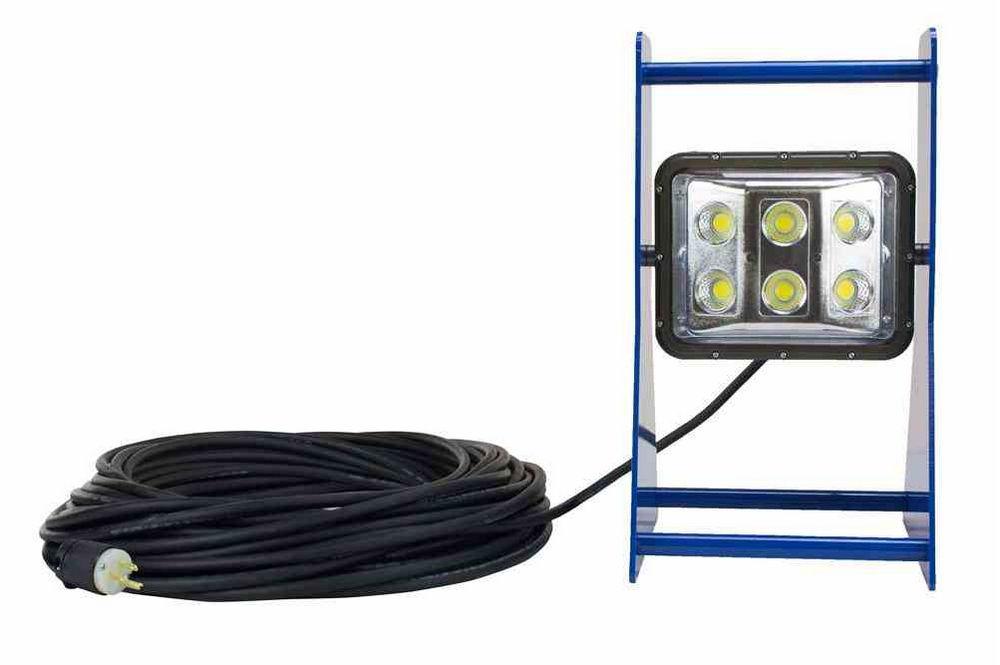

Made in the USA The WAL-PM-WP60 Portable LED Work Light from Larson Electronics offers high light output and extreme durability within a portable pedestal frame. This versatile portable LED work light is IP68 rated and is waterproof to three meters. This portable LED area light produces 5,400 lumen of light while drawing only 60 watts of power. The WAL-PM-WP60 work area LED light provides a 5,400 lumen floodlight beam and is a direct replacement for hot and fragile 500 watt halogen work lights. This portable LED work light is comprised of a light head mounted within an aluminum frame fabricated from lightweight aluminum with a convenient carrying handle built into the top of the frame. The lamp head consists of six 12.5 watt LEDs housed within a waterproof aluminum housing that is powder coated for added durability and resistance to corrosion. The lamp can be easily adjusted up or down 90 degrees and locked into position by simply loosening the two thumb screws located on either side of the light head and re-tightening them once the desired angle is found. Included with this LED light is 100 feet of SOOW cord terminating in a industrial grade cord cap. The light assembly on this portable work light is constructed of three angled boards that helps provide a wider spread. Instead of the light only shining forward, the center board is concentrated to go straight out while the boards on the side are 45° offset. The LED boards and reflectors are protected by a scratch and shatter resistant polycarbonate lens attached to the aluminum housing, allowing this unit to withstand abuse that traditional halogen work lamps cannot. This LED work light is waterproof, vapor proof, and built to resist the damaging effects of an outdoor environments and use in temporary job sites. This LED area light operates on 120-277 volts 50/60 hz. This LED light is IP68 rated and waterproof, sealed against intrusion by dust and dirt and very ruggedly constructed to withstand the most demanding environments, conditions and applications. The light head housing is constructed of extruded aluminum housings, rubber isolation mounts and polycarbonate lenses to provide increased durability against vibration, impact and moisture.
Warehouse illuminated by the WAL-PM-WP60 WAL-PM-WP60 mounted 15` high illuminating a 30` long by 50` wide parking area.
Click Photo to Enlarge
Heat Management: Heat is the single largest factor in premature LED failure and color shifting. As a result, many manufacturers reduce the output of their LEDs to reduce the amount of heat produced. These LED work lights utilize an extruded aluminum housing that incorporates an advanced heat radiating fin design which dissipates heat efficiently to produce the maximum amount of power and longevity from the integrated LED emitters. The end result is more light and longer LED life with higher average lumen maintenance after 50,000 hours. Durability: This LED work area light is made up of IP68 rated construction that is designed to withstand extremes of environmental and operating conditions. These LED area lights can withstand rapid temperature changes of -40° Celsius to +85° Celsius, are waterproof to three meters and resist ingress of dust, dirt and humidity. The housings are formed from thick extruded aluminum and the lenses are shock resistant polycarbonate. Voltage: The drivers in this portable work lgiht provide the ability to automatically monitor and adjust input current to maintain the correct LED voltage levels regardless of input levels across a specific range. These light towers can operate on current ranging from 100 to 277V AC or without any modifications necessary as a result. This ability to sense and adjust input current also provides protection against voltage spikes and drops that can occur in electrical systems which would otherwise result in burning up or premature LED failure without it.
Click Photos to Enlarge
5-15 Straight Blade Plug 15 Amp / 125V Rated L5-15 Twist Lock Plug 15 Amp / 125V Rated L6-15 Twist Lock Plug 15 Amp / 250V Rated
UK BS1363 Straight Blade Plug 13 Amp / 250V Rated / Internal Fuse Intl Schuko 2-Pin Plug 16 Amp / 250V Rated / Grounded Flying Leads / Pigtail Wires
Wiring and Plug: This A-frame mounted portable LED flood lighting system is equipped with 100 foot of 16/3 chemical and abrasion resistant SOOW cord that is fitted with an industrial grade cord cap for easy connection to common wall outlets. Plug options include standard 5-15 15 amp straight blade plug for 110V wall outlets with ground, standard 6-15 15 amp straight blade plug for 110V wall outlets with ground, NEMA L5-15 15 amp twist lock plug for 125V twist lock outlets, NEMA L6-15 15 amp twist lock plug for 240V twist lock outlets, British BS1363 13 amp fused 3-blade plug for United Kingdom outlets, or a two pin 16 amp rated Schuko plug with ground contact and socket for European outlets up to 250V. Alternatively, we can provide flying leads with no plug for hard wire applications or for operators who prefer to wire in user provided cord caps. Please choose pigtail option below for flying leads with no plug.
Made in USA Quality Superior LED Benefits
1. ETL Listed power supply, cable and plug 2. Led lamp head requires no re-lamping.  3. Durable base mount resists toppling. 4. Extreme long life LEDs reduce maintenance and replacement costs. 6. Adjustable LED light head.  7. 5,400 Lumens produced from only 60 watts. 8. Shock resistant LED lamp light head. 1. 50,000+ hour lifespan. 2. Can SAVE 50% or more on energy. 3. 100% recyclable. 4. No toxins-lead, mercury. 5. No UV light, infrared radiation or CO2 emissions. 6. Bright, even light maintains consistent color over time. 7. Instant on/off – No flickering, delays or buzzing. 8. Very good color rendering. 9. Vibration/impact resistant. 10. Significantly cooler operation. 11. Less frequent outages, higher output improves workplace safety.
