|WAL-QP-2X500LTL-LED-100Â Work AreaÂ LED Quadpod||Quick Summary|
|Lamp Type: CREE LED||1000 Watt Metal Halide Replacement|
|Dimensions:Â 7` to 12` Extendible Tower||98% Transmission High Purity PMMA Optics|
|Weight: 105 Lbs||Multiple LED Banks for Heat Dispersion|
|Voltage: 90-305 Volts AC, 50/60Hz or 127-431V DC||120 Lumens Per Watt Efficiency|
|Total Watts: 480W||70% Lumen Retention after 80,000 Hours|
|Total Lumens: 64,800||UL1012 Compliant|
|Luminous Efficiency: 120 Lm/W||UL60950-1 Compliant|
|Lamp Life: 80,000+ Hours||CE Certified & RoHS Compliant|
|Color Rendering Index: >75 CRI||IP67 Rated Waterproof|
|Beam Angle:10Â° Spot, 24Â° Wide Spot, 38Â° Narrow Flood, 60Â° Flood, or 90Â° Wide Flood||Dual 240 Watt, 64,800 Lumen LED Light Head|
|LED Color Temperature: Cool White - 5600K||70,000 Square Foot Coverage|
|Optics Efficiency: 98% - PMMA High Transmittance Optics||Adjustable Tower Mount - 7`-12`|
|Power Efficiency: >90%||Adjustable LED Light Head|
|Led Drive %: 90%||100` 6/3 SOOW Cord|
|Amperage: 4A @ 120V, 2A @ 240V, 1.74A @ 277V||Multiple Plug Options Available|
|Ambient Operating Temp Range: -40Â° C to +80Â°C|
|Housing Materials: Die Cast Aluminum Housing, PMMA Optics|
|Mounting: 1/8" Thick, Aluminum Square Tube Quadpod - 168" Height||Toll Free:Â 1-800-369-6671|
|Wiring: 100` 16/3 SOOW Cable||Intl:Â 1-903-270-1187|
|Cord Cap: 5-15, 6-15, 5-20, 6-20, L5-15, L6-15, L5-20, L6-20, BS1363, Schuko, or Pigtail||E-mail:Â|

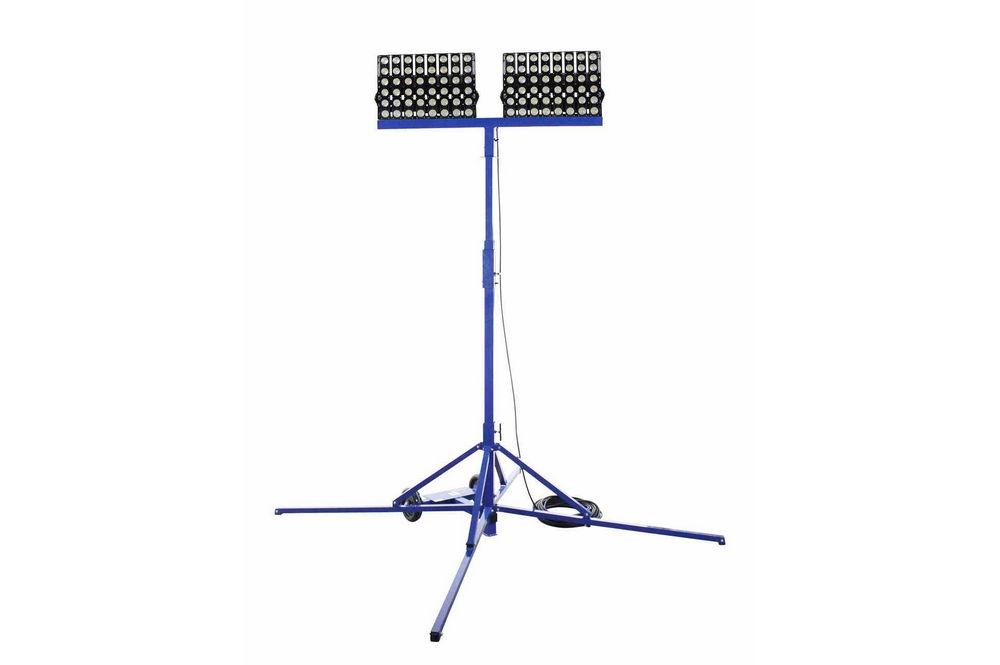

|Made in Texas The WAL-QP-2X240LTL-LED-100 Quadpod Mounted LED Work Area Light fromÂ Larson ElectronicsÂ produces 64,800 lumens and is equipped with 100 of SOOW cable. This LED light tower is designed for portability and durable operation and ideal for use in demanding conditions. Dual 240 Watt LED light heads cover up to 70,000 square footage. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO LIGHT MASTS, LIGHT TOWERS, OR QUADPODS* The WAL-QP-2X240LTL-LED-100 is a quadpod mounted work area LED light and provides 64,800 lumens of light output. Dual LED light heads, each containing Twenty-four CREEÂ® high output LEDs producing 1250 lumens each are arranged in rows and paired with PMMA high purity optics to produce a well focused 24Â° wide spot beam that is ideal for providing far reaching concentrated illumination while still covering a substantial amount of area. We also offer optional optics with 10Â° spot, 38Â° narrow flood, 60Â° flood, and 90Â° wide flood beam spreads. The spot beams are tightly focused and are designed for high elevation mounting to achieve distance, making spot versions ideal for high mast and spots lighting. The flood beams are designed to provide more light over a larger area nearer the fixture, making flood versions ideal for use as dedicated work and area lights. This portable LED light is comprised of two adjustable LED light heads mounted atop a four leg quadpod fabricated from powder coated aluminum. This adjustable and collapsible quadpod can be extended to twelve feet,Â collapsed to seven feet, and includes solid wheels allow the operator to tilt the unit back and simply roll the entire assembly to a new location when fully deployed. The LED light fixture assembly can be removed by releasing the hand knob and sliding the light and mounting bracket off of the center support while the legs can be collapsed, aiding in deployment, storage and transport. The lamp can be easily adjusted vertically and locked into position. Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current applied and emitting light. With LED lights, there is no warm up time or cool down time before re-striking and provide instant illumination when powered on, adding to the reliability of LED technology. By nature, LED light sources run significantly cooler than traditional lamps, reducing the chance of accidental burns and increased temperatures due to heat emissions. This solid state design of light emitting diodes provides a more reliable, stable, durable, and energy efficient light source over traditional lighting.|
Lights: The lighting system on this unit is comprised of two 240 watt LED lamps producing 64,800 lumens of light attached to the top of the mini light tower. The GAU-LTL-250W-LED LED lights are ideal replacements for fragile and hot running 1000 watt metal halide lamps, offering increased durability, longer lamp life, and lower power consumption. The fixtures are IP67 rated waterproof. The LED assembly is comprised of multiple LED "strips" within the housing. This design allows for in-the-field serviceability without the need for special tools or equipment.
Heat Management: Heat is the single largest factor in premature LED failure and color shifting. These LED units feature individual heat sinks per bank of six LEDs to control heat buildup rather than utilizing a single housing to dissipate heat. This allows for more thorough cooling of the LEDs for extended operating periods. This allows the LEDs to be driven at up to 90% capacity without overheating or visible loss of light output. The end result is more light with less heat and longer LED life with an average 70% lumen maintenance after 80,000 hours. In addition, should an LED failure occur, these LED flood lights are field serviceable. Each bank of six LEDs can be replaced with the fixture installed. This allows for the tower to stay in operation until repairs can take place, and eliminates the need to remove and disassemble the entire fixture for repairs.
Durability: As well as unparalleled heat control, the GAU-LTL-250W-LED series of LED lights from Larson Electronics also offer IP67 rated construction that is designed to withstand extremes of environmental and operating conditions. These units can withstand rapid temperature changes of -40Â° Celsius to +80Â° Celsius, are waterproof, and resist ingress of dust, dirt and humidity. The housings are formed from die cast aluminum and the optics are high transmission PMMA with 98% light transmittance. The CREEÂ® LEDs help these units achieve resistance to vibrations and are rated at 70% lumen maintenance after 80,0000 hours of use. We use these LED lights for applications where a lot of vibration, dust, dirt, dampness and abusive working conditions are encountered.
